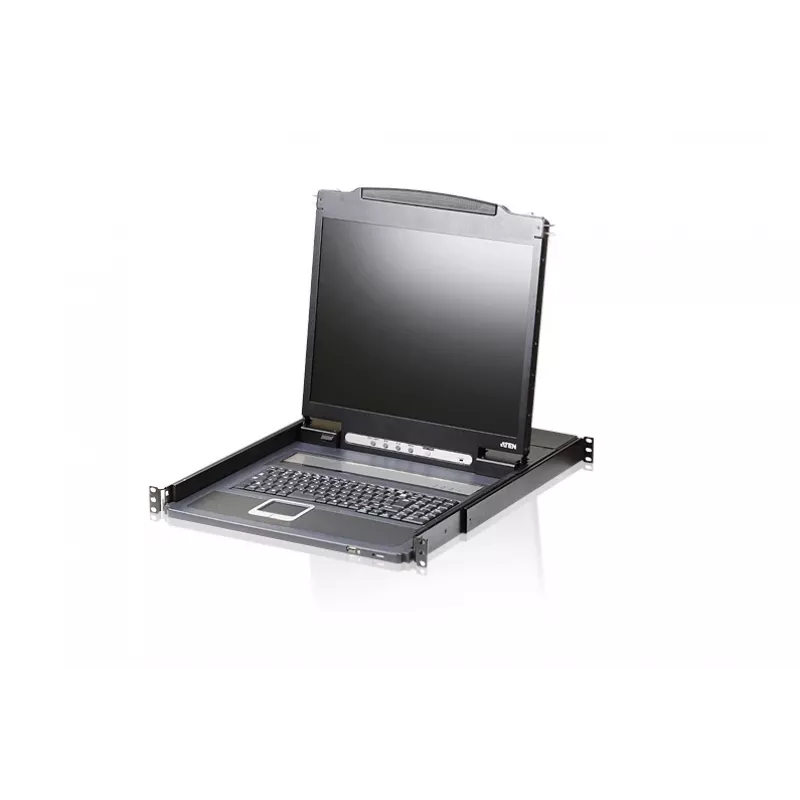

Consola de rack ATEN CL3000N 48,3 cm (19") 1280 x 1024 píxeles aluminio negro 1U

The ATEN CL3000N is a 1U rack console with a 19-inch (48.3 cm) display offering a 1280 x 1024 pixel resolution. Designed for installation in server racks, the console integrates a monitor with keyboard and touchpad controls and supports both USB and PS/2 connections for keyboard and mouse. The display delivers 250 cd/m² brightness and the unit is engineered for compact space management and reliable access to rack-mounted servers and network equipment. Typical power consumption is 22.7 W and the console accepts an AC input range of 100–240 V, making it suitable for varied data center and IT room power environments.

Advantages

The CL3000N combines a standard 19-inch screen with dual keyboard/mouse interface options (USB and PS/2), enabling compatibility with legacy and modern systems without additional adapters. Its 1U form factor saves rack space while providing a built-in input surface for local server management. Low typical power consumption and a wide AC voltage range support efficient operation and flexible deployment across different sites. The 1280 x 1024 resolution and 250 cd/m² brightness ensure clear on-screen text and system consoles for troubleshooting and configuration tasks.

Suitable for

• Local management of rack-mounted servers and network devices in data centers
• IT maintenance, configuration and troubleshooting at the rack
• Environments requiring both USB and PS/2 input compatibility
• Small server rooms where space-efficient, integrated console solutions are needed

Key specifications

• Display size: 19 inches (48.3 cm)
• Native resolution: 1280 x 1024 pixels
• Brightness: 250 cd/m²
• Form factor: 1U rack mountable console
• Input interfaces: USB and PS/2 for keyboard and mouse
• Typical power consumption: 22.7 W
• AC input voltage range: 100–240 V

How to use

Install the console into a standard 19-inch server rack occupying 1U of rack space. Connect the unit to AC power within the specified voltage range. Attach keyboard and mouse using either USB or PS/2 connectors depending on the connected servers or KVM switch. Use the integrated controls and display to access server BIOS, operating systems and management interfaces directly at the rack. Ensure cable routing follows data center best practices and that peripheral connectors are securely seated before powering on connected systems.

Recommendations

Place the console at a convenient rack height for ergonomic access and verify compatibility with connected equipment using either USB or PS/2 interfaces. Regularly clean the display and keyboard surface with appropriate, non-abrasive cleaners and confirm power connections match site supply to avoid voltage-related issues.
