Consola de rack 19 inch ATEN CL3000N, 48,3 cm LCD 1280×1024, VGA, teclado y ratón USB/PS/2, 1U, aluminio negro

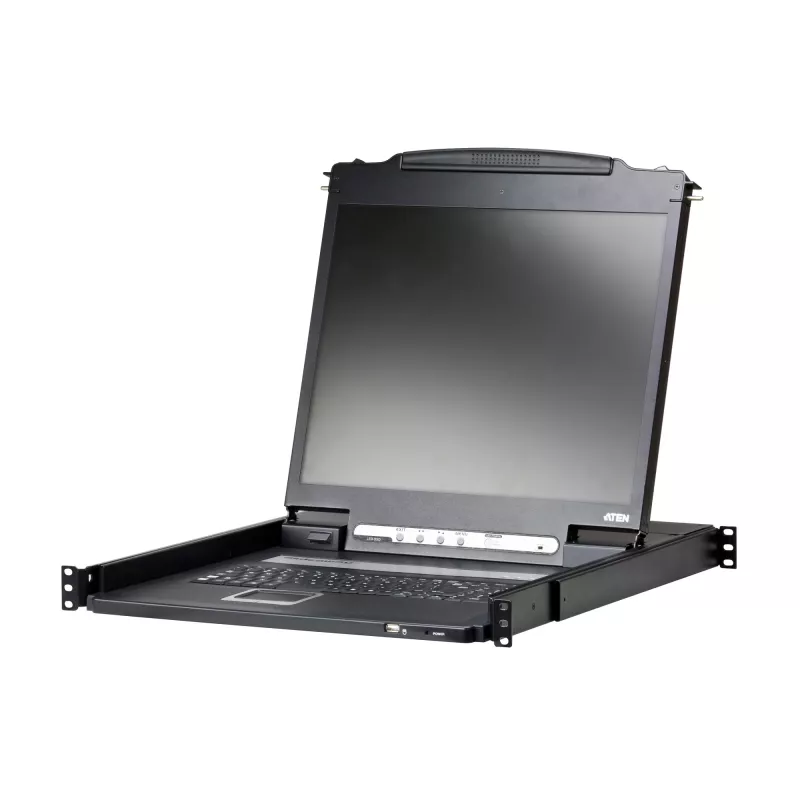

The ATEN CL3000N Lightweight PS/2-USB LCD Console is a 1U rack console with a 48.3 cm (19") LED-backlit LCD and 1280×1024 resolution, designed as a front-end console for compatible KVM switches. It integrates a keyboard, LED-backlit monitor and touchpad in an aluminium, space-saving housing sized for server cabinets, providing VGA video output and keyboard/mouse connections via USB and PS/2. The console is tested to MIL-STD-810G Method 514.6 for vibration to ensure reliable operation in demanding environments.

Advantages

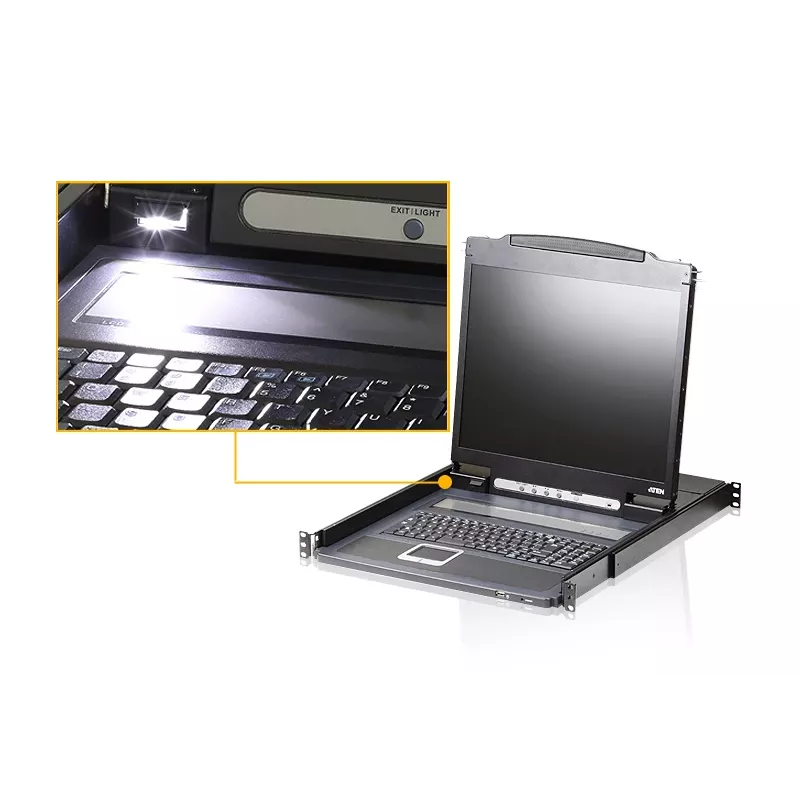

The CL3000N combines a compact 1U design with a full-size keyboard and integrated touchpad to save rack space while enabling local server management. Its 19" LED-backlit panel offers energy-efficient display performance at 1280×1024 resolution. Dual USB and PS/2 ports for keyboard and mouse ensure broad compatibility with existing infrastructure. Aluminium construction and MIL-STD-810G vibration testing provide improved durability for use in sites subject to vibration such as factory floors or mobile installations.

Suitable for

• Rack-mounted server rooms and data centres where space is limited
• Local management of servers connected to KVM switches
• Environments with moderate vibration or mobile applications

Key specifications

• Display: 48.3 cm (19") LED-backlit LCD, 1280×1024
• Video port type: VGA

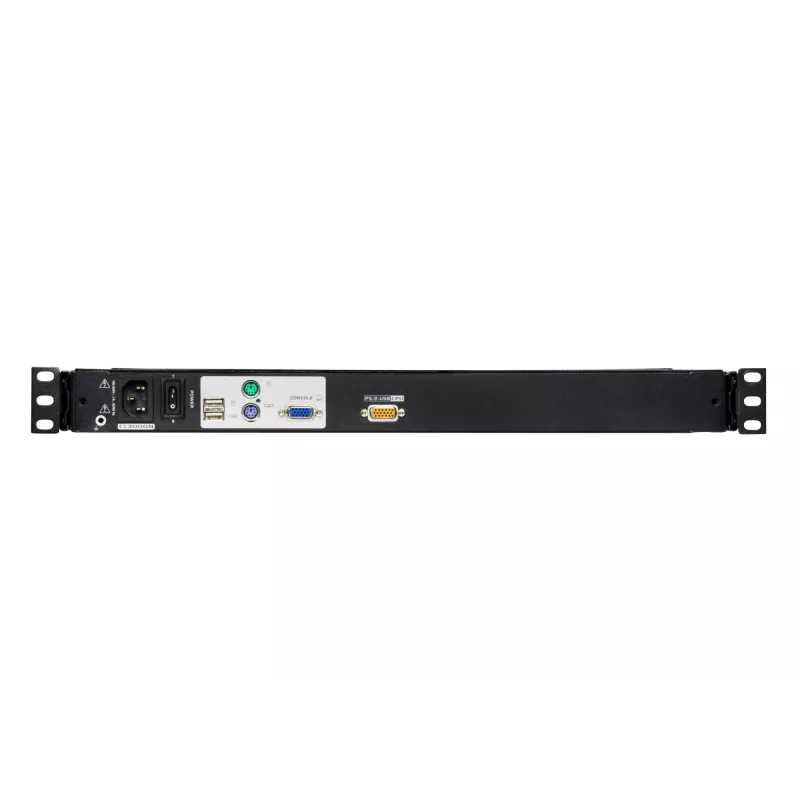

• Keyboard / Mouse ports: USB and PS/2
• Form factor: 1U rackmount, aluminium housing, black

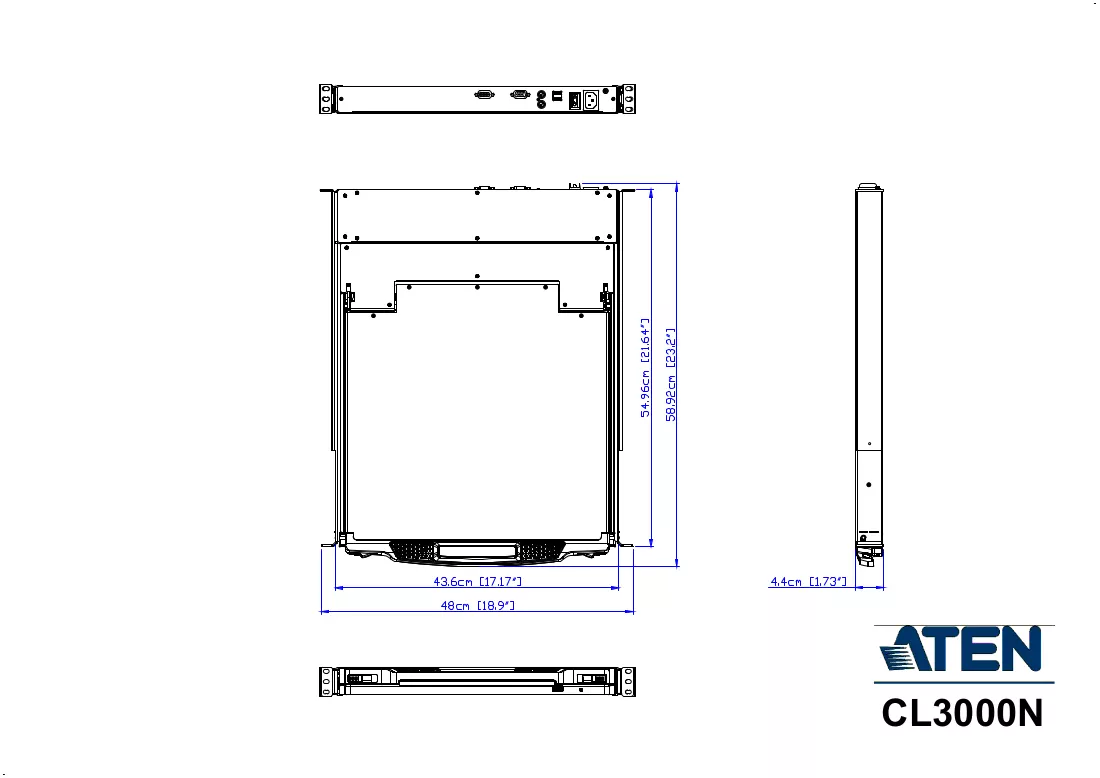

• Dimensions: 589.2 × 44 × 480 mm
• Weight: 9 kg
• Power: typical 22.7 W; AC adapter 100–240 V, 50/60 Hz
• Manufacturer / Model: ATEN CL3000N (MPN: CL3000N-ATA-2XK06DNG, EAN: 5711783160151)
• Vibration test: MIL-STD-810G Method 514.6 (random vibration, Common Carrier)

How to use

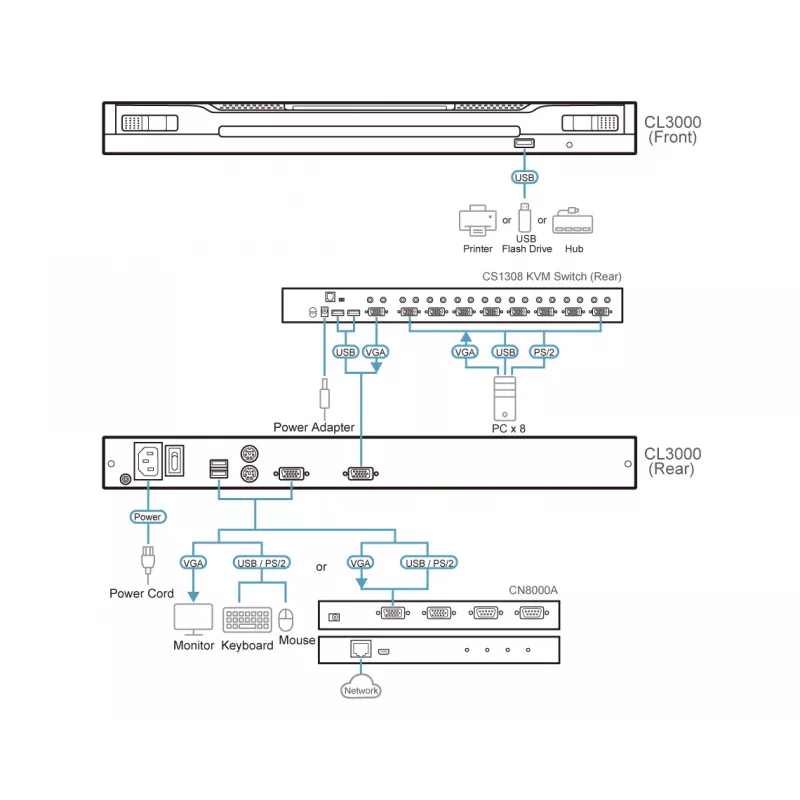

Install the CL3000N into a standard 19" equipment rack occupying a single 1U slot and secure it according to the rack manufacturer's instructions. Connect the console's VGA output to the KVM switch or server video input, then attach keyboard and mouse using USB or PS/2 connectors as required. Connect the AC adapter to an appropriate mains supply (100–240 V, 50/60 Hz). Use the integrated keyboard and touchpad for local control of connected systems and operate the display using the front-panel controls.

Recommendations

For reliable long-term operation, mount the console in a properly ventilated rack, use secure cable routing to minimise vibration transfer, and follow the server room's grounding and power protection practices. Choose USB or PS/2 connections according to your equipment compatibility and verify VGA cabling quality for optimal display clarity.
