Contacto Harting Han E 09330242602 contactos de crimpado de una fila para carcasa Han E

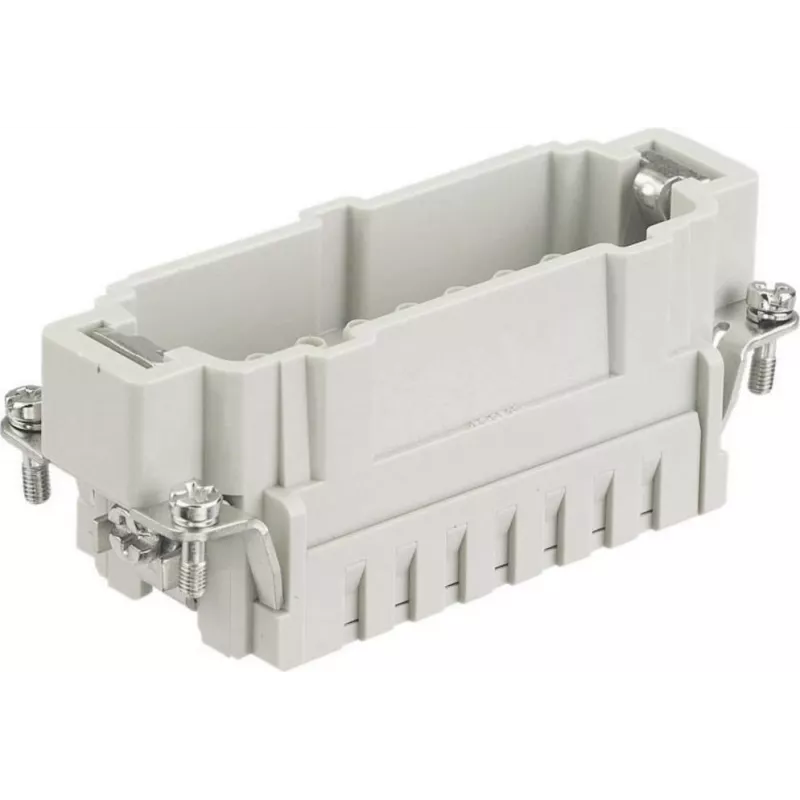

Harting Connector insert Han E 09330242602 crimp contacts single-row for Han E housings is a single-row insert designed to accept crimped wire terminations for use in Han E connector housings. It provides a compact contact arrangement for signal or low-power circuits where crimp contacts are specified. The insert is intended for integration into Harting Han E modular housings, enabling a straightforward replacement or configuration of connector modules without altering the housing shell.

Advantages

The single-row crimp-contact insert offers a reliable mechanical and electrical connection when used with properly crimped conductors, ensuring consistent contact pressure and low contact resistance. Its modular form factor allows easy installation into compatible Han E housings, simplifying maintenance and module replacement. The design supports straightforward wire preparation and terminations typical of industrial automation environments, and it helps standardize connector configurations across equipment.

Suitable for

• Signal wiring in industrial control cabinets
• Low-power connections in automation equipment
• Field device wiring where modular Han E housings are used
• Replacement of existing single-row Han E inserts with crimp contacts

Key specifications

• Contact arrangement: single-row insert suitable for crimp contacts
• Termination type: crimp-contact interface for insulated or uninsulated crimp ferrules
• Mounting: designed for installation into Han E modular housings
• Application class: signal and low-power electrical connections
• Suitable conductor types: stranded conductors prepared with compatible crimp terminals
• Mechanical format: modular insert compatible with standard Han E housing dimensions

How to use

Prepare conductors by stripping insulation to the length recommended for the chosen crimp terminals and apply appropriate crimp ferrules or terminals using a certified crimping tool. Insert the prepared crimp contacts into the insert cavities until they engage and retain securely. Fit the assembled insert into a compatible Han E housing following the housing's locking or retention procedure. Verify correct insertion and perform electrical continuity and insulation tests as required by the installation standards before placing the connector into service.

Recommendations

Use crimp terminals and crimping tools that match the conductor cross-section and material. Inspect contacts periodically for corrosion or mechanical wear in harsh environments, and follow Harting housing instructions for mating cycles and torque values where applicable.
