Contacto magnético DSC PGP8945 PowerG con entrada auxiliar

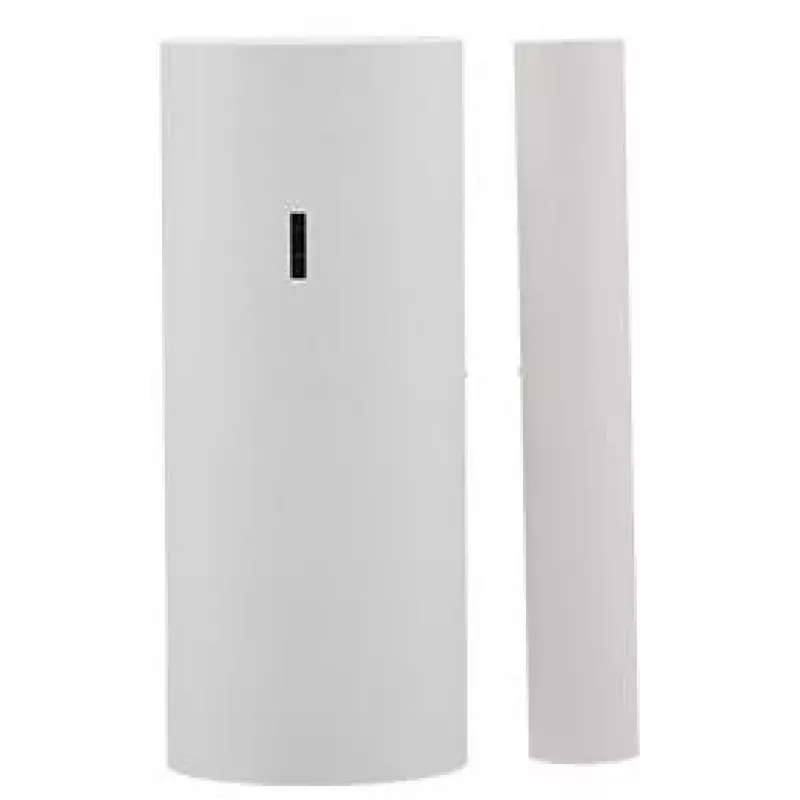

The DSC PGP8945 is a high-security PowerG wireless magnetic contact with an additional hardwired auxiliary input, designed for use with DSC PowerSeries Neo/Pro and Qolsys IQ Panel systems. It provides reliable intrusion detection for doors and windows, featuring 128-bit AES encryption and frequency hopping spread spectrum technology for superior security and interference immunity.

Advantages

Extended wireless range up to 2000m line-of-sight ensures reliable communication even in large properties. The auxiliary input allows connection of additional wired sensors (NC/NO selectable), expanding system flexibility. Long battery life of up to 8 years reduces maintenance. Tamper protection on front and back covers prevents unauthorized access.

Suitable for

• Residential and commercial security systems
• Door and window monitoring
• Integration with DSC PowerSeries Neo/Pro and Qolsys IQ Panel (with PowerG transceiver)

Key specifications

• Wireless Technology: PowerG (Frequency Hopping Spread Spectrum)
• Operating Frequency: 868 MHz (Europe)
• Battery: 1x CR123A Lithium (included)
• Battery Life: Up to 8 years
• Sensor Type: Magnetic Contact
• Auxiliary Input: 1x Hardwired (NC/NO selectable)
• Wireless Range: Up to 2000m (6500ft) line-of-sight
• Encryption: 128-bit AES
• Tamper Protection: Front and Back Cover
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 5% to 93% RH, non-condensing
• LED Indicators: Signal Quality, Battery Status, Alarm
• Mounting: Surface Mount (Screws/Adhesive)
• Colour: White
• Certifications: CE, EN Grade 2

Recommendations

For optimal performance, install the PGP8945 within the specified wireless range and avoid metal obstructions. Use the auxiliary input for additional wired sensors to enhance security coverage. Regularly test the device and replace the battery when indicated.
