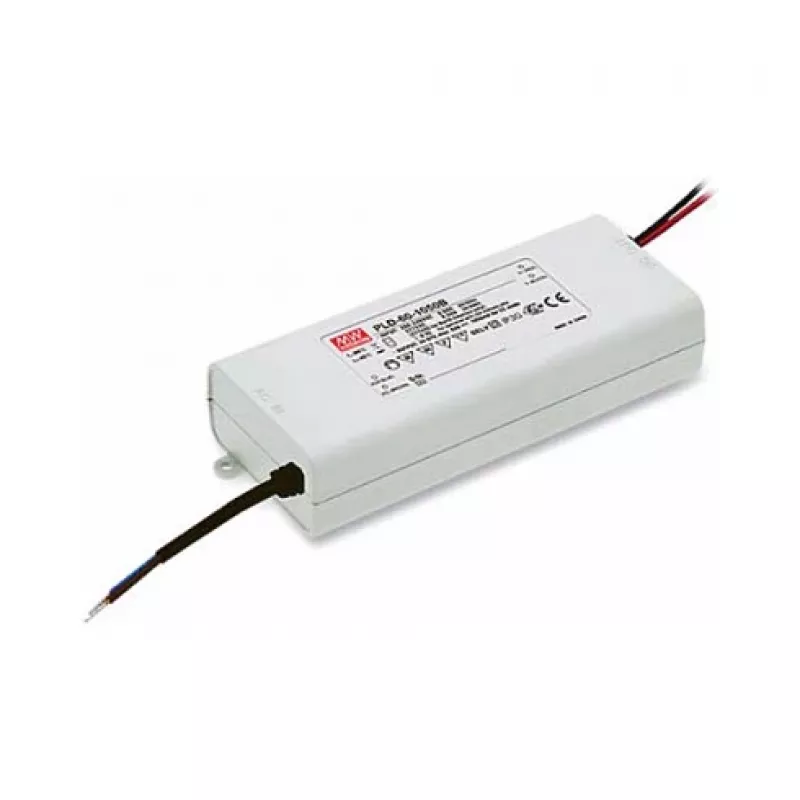

Controlador LED Synergy21 MEAN WELL PLD-60-1050B, 59,85 W, corriente constante 1050 mA, AC 180-295 V, IP42

The Synergy21 MEAN WELL PLD-60-1050B is a compact LED driver that provides a constant current output of 1050 mA and a rated output power of 59.85 W. Designed for use with indoor LED luminaires and retrofit fixtures, the driver accepts a wide AC input voltage range of 180–295 V at 47–63 Hz and provides stable current delivery with active power factor correction. The unit features a fully isolated plastic enclosure with IP42 protection and is cooled by free air convection, making it suitable for installations where silent, maintenance-free operation is required.

Advantages

The driver’s constant current design ensures reliable LED performance and consistent light output. Built-in active PFC improves input power quality and reduces harmonic distortion on the mains. Protective functions for short circuit and over-temperature conditions enhance safety and longevity. The compact dimensions (60 × 128 × 31.5 mm) and convection cooling allow flexible integration into many indoor lighting fixtures. The device also undergoes a full-load burn-in test to verify stability and is supplied with a limited warranty for added assurance.

Suitable for

• Indoor LED downlights and spotlights
• LED retrofit modules and replacement drivers
• Panel and ceiling lighting fixtures
• Commercial and residential interior illumination

Key specifications

• Output type: constant current, 1050 mA
• Rated output power: 59.85 W
• Input voltage: AC 180–295 V, 47–63 Hz
• Input current: up to 0.6 A
• Protection class: IP42
• Cooling method: free air convection (no fan)
• Enclosure: fully isolated plastic case
• Protections: short circuit and over-temperature protection
• Power factor: active PFC function
• Dimensions: 60 × 128 × 31.5 mm

How to use

Install the LED driver in a dry, ventilated indoor location with adequate space for convection cooling, observing the specified IP42 environment limitations. Connect the AC supply within 180–295 V to the input terminals and connect the LED load to the constant current output terminals, ensuring correct polarity and that the LED load current rating matches 1050 mA. Follow local electrical codes and disconnect power before wiring. Avoid covering the unit or placing it near heat sources to maintain proper thermal performance.

Recommendations

For optimal lifetime and performance, use the driver with LED modules that accept a 1050 mA forward current and whose voltage range fits within the driver’s output capability. Ensure adequate ventilation around the unit and avoid environments with excessive dust or moisture beyond IP42 limits. For installations requiring grounding or additional safety measures, follow applicable local regulations and fixture manufacturer instructions.
