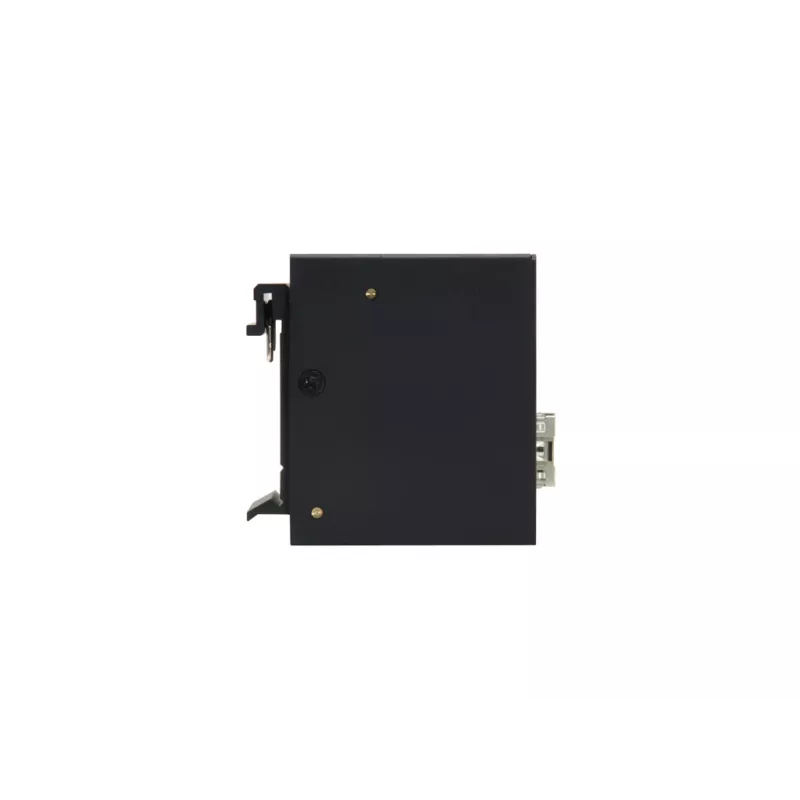

Convertidor de medios industrial LevelOne RJ45 a SFP Fast Ethernet, -40 °C a 75 °C

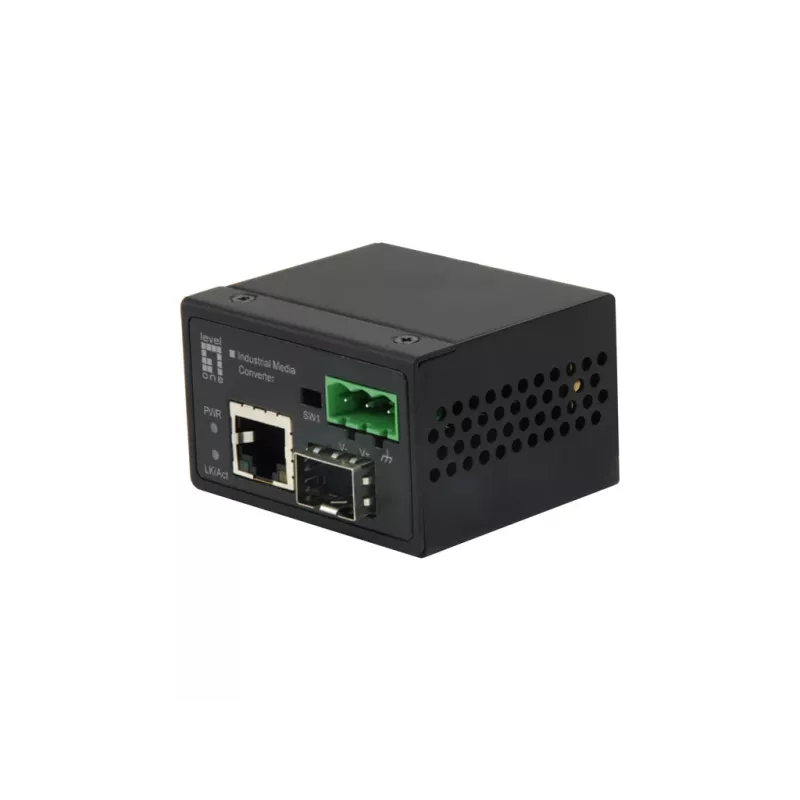

LevelOne IEC-4000 is an industrial Fast Ethernet media converter with a mini size, rugged aluminium case which providing superb heat dissipation. This converter is designed to be mounted on an industrial standard DIN-rail, as well as on the wall, plus the clearly visible status LEDs provide simple monitoring of port link activity. It also features Link Fault Pass Through in order to alert remote location when link status changes.

10/100BaseT to 100Base-FX

- Rugged aluminium case design in a mini size form factor
- 18V-36VAC & 12V-60VDC with polarity protection
- Link Fault Pass through (LFP) function
- Supports switch and pure converter mode
- Surge & ESD protection
- Maximum noise & interference immunity
- 40°C to 75°C (-40°F to 167°F) operating temperature range

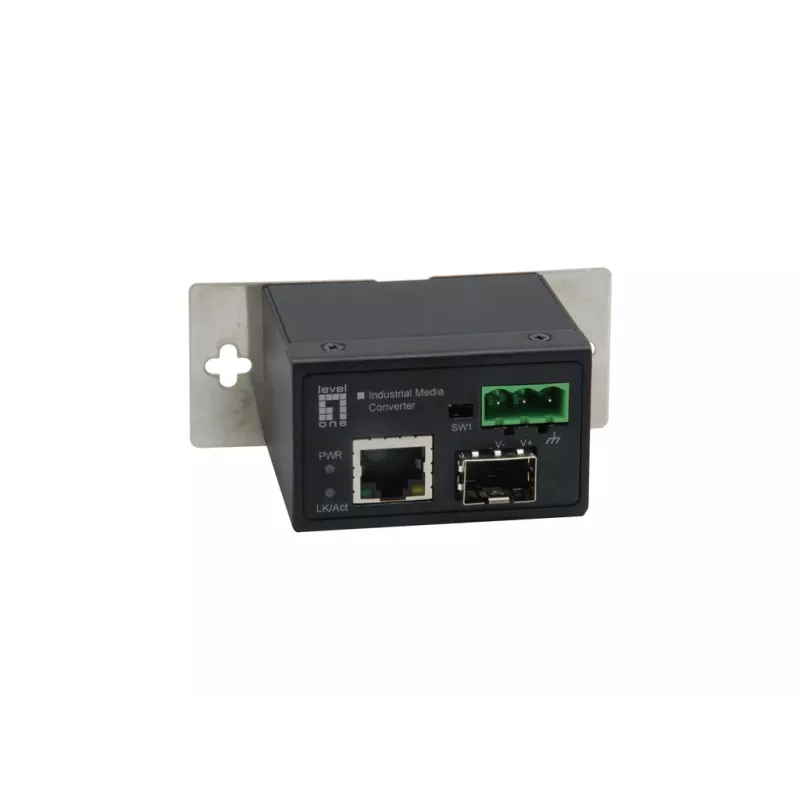

- DIN-Rail or panel mount installation

LevelOne RJ45 to SFP Fast Ethernet Industrial Media Converter, -40°C to 75°C. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-X. LED indicators: Activity, Link, Power, Product colour: Black, Housing material: Aluminium. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 12 - 60 V, Power consumption (typical): 1.44 W. Width: 59 mm, Depth: 49 mm, Height: 36 mm
