Ubiquiti UISP-FIBER-XG Convertidor de medios de red 10000 Mbit/s

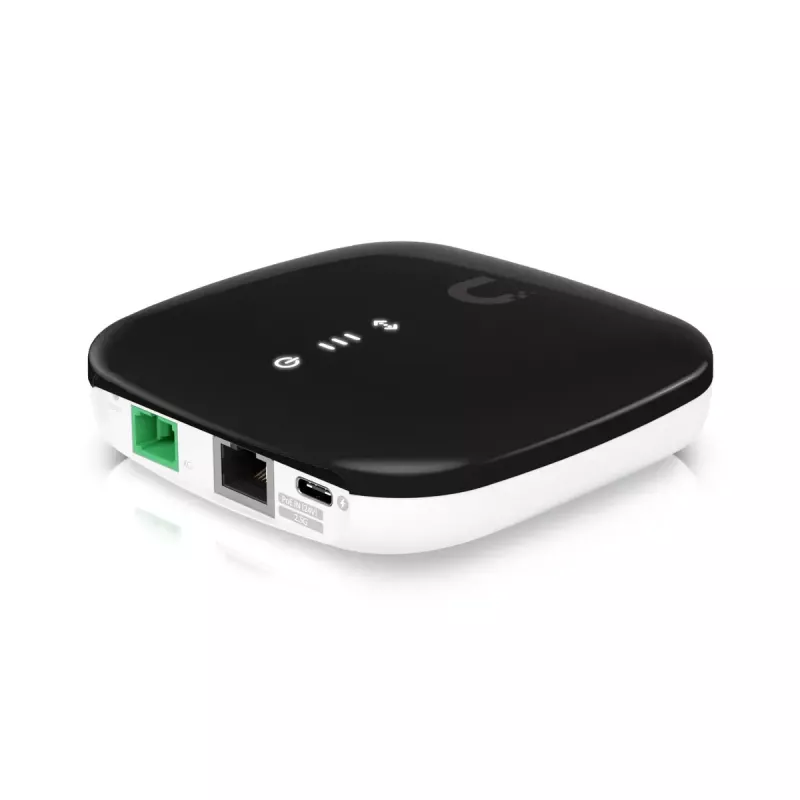

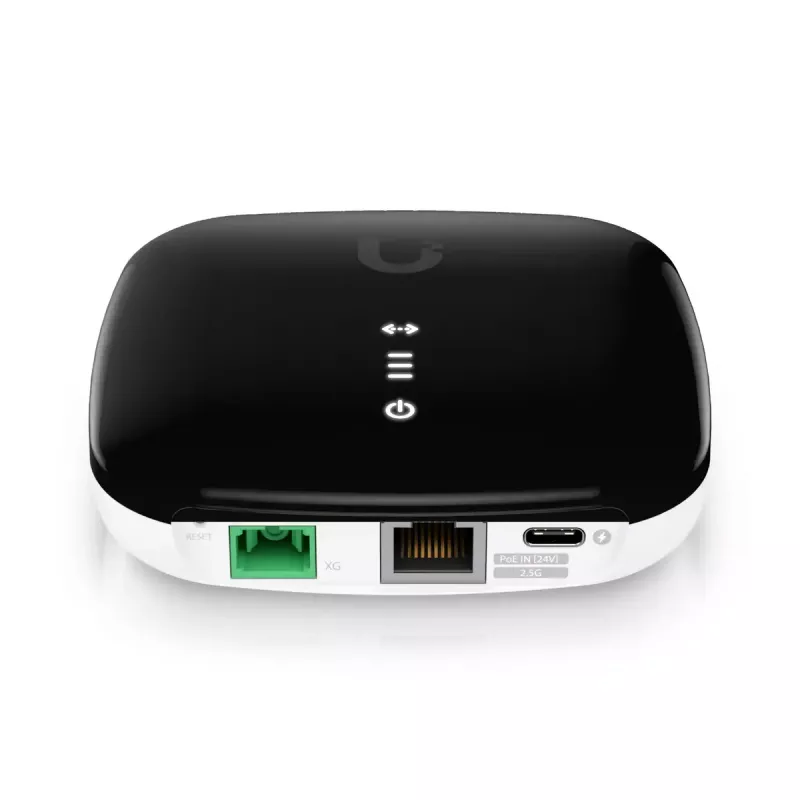

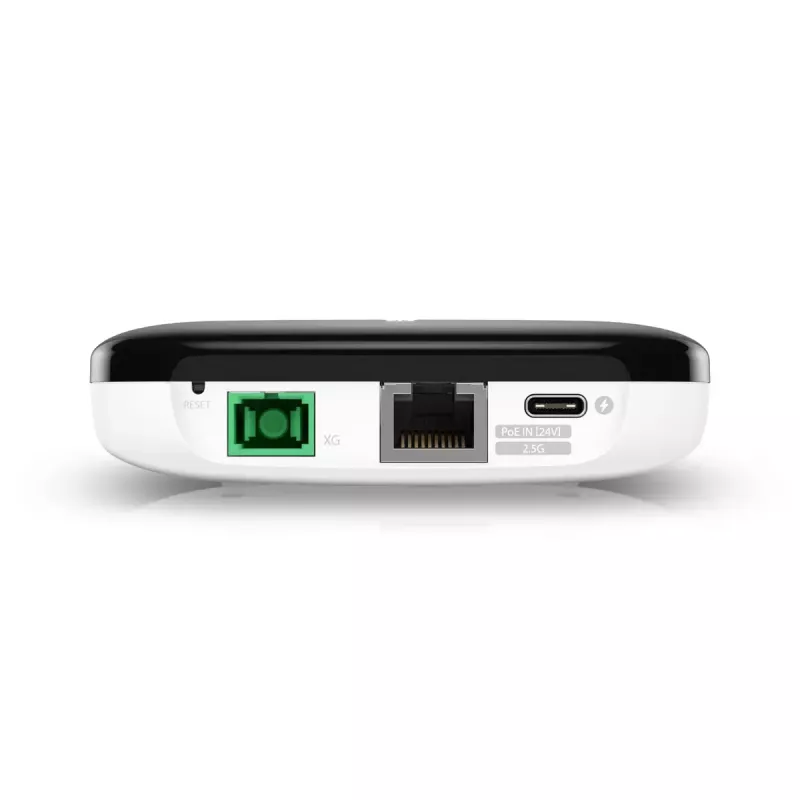

The Ubiquiti UISP-FIBER-XG is a network media converter designed for fiber-to-Ethernet applications, supporting up to 10 Gbit/s aggregate rates and multi-gigabit Ethernet interfaces. It includes a single SC/APC fiber port and one RJ-45 Ethernet port with support for 2.5G, 5G and 10G data rates, and can transmit over fiber distances up to 20 km. The housing is made of durable polycarbonate and the unit is available in white and black finishes.

Advantages

The device provides flexible multi-gigabit Ethernet connectivity (2.5G/5G/10G) through a single media converter, simplifying integration of high-speed fiber links into existing networks. Its SC/APC fiber connector and support for transmissions up to 20 km make it suitable for long-reach links, while the compact, lightweight polycarbonate enclosure facilitates installation in constrained spaces.

Suitable for

• Connecting fiber backbone to Ethernet switches or routers
• Extending high-speed network links up to 20 km
• Multi-gigabit uplinks for ISP, enterprise or campus networks
• Environments requiring SC/APC single-fiber connections

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1 (SC/APC)
• Supported Ethernet data rates: 2.5G, 5G, 10G, 1G, 100M
• Maximum transfer distance over fiber: 20000 m
• Weight: 0.22 kg
• Product colour: White, Black

How to use

Install the UISP-FIBER-XG by mounting it in the desired location and connecting the fiber cable to the SC/APC port using proper cleaning and handling procedures. Plug an Ethernet cable into the RJ-45 port and configure the connected switch or router to match the required link speed and duplex settings. Ensure the fiber transceiver and remote equipment use compatible signaling and connector polarity.

Recommendations

For reliable performance, use cleaned SC/APC connectors and certified single-mode fiber for long-reach links, and verify link speeds on both ends after installation. Protect the unit from direct exposure to moisture and extreme temperatures and follow the network operator’s grounding and ESD procedures.
