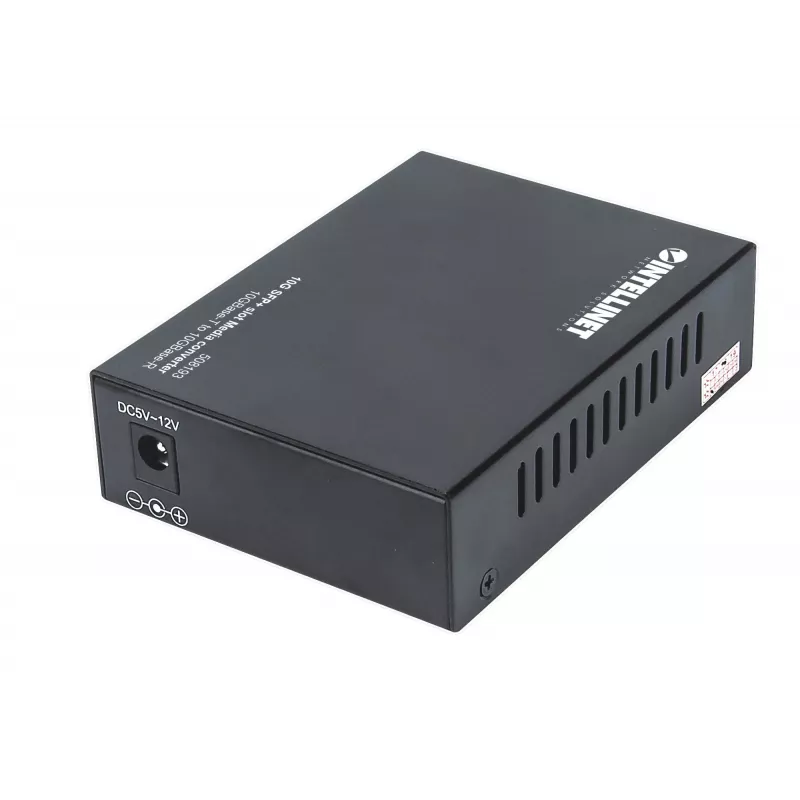

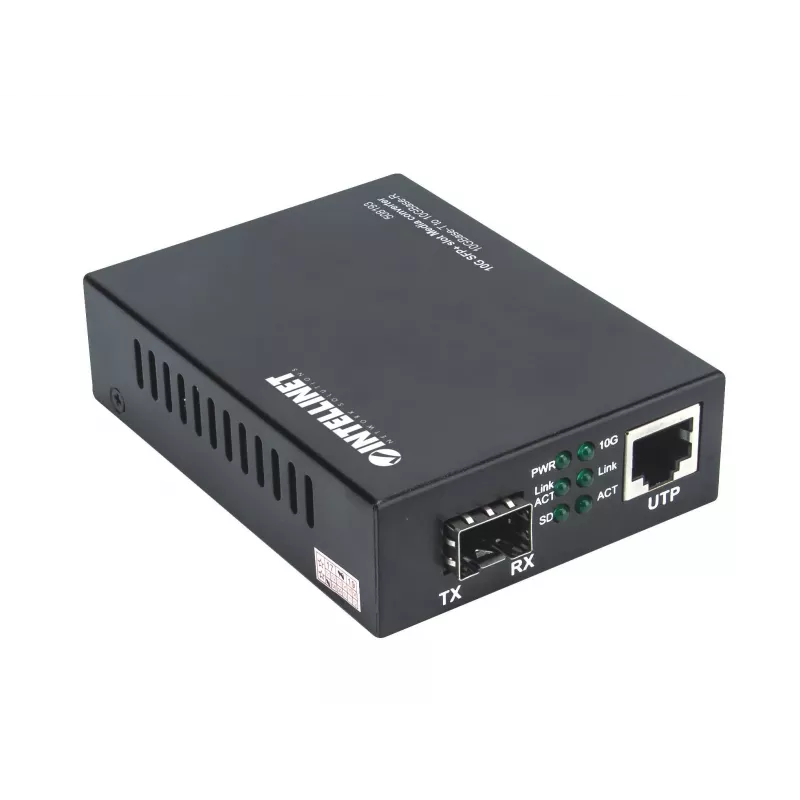

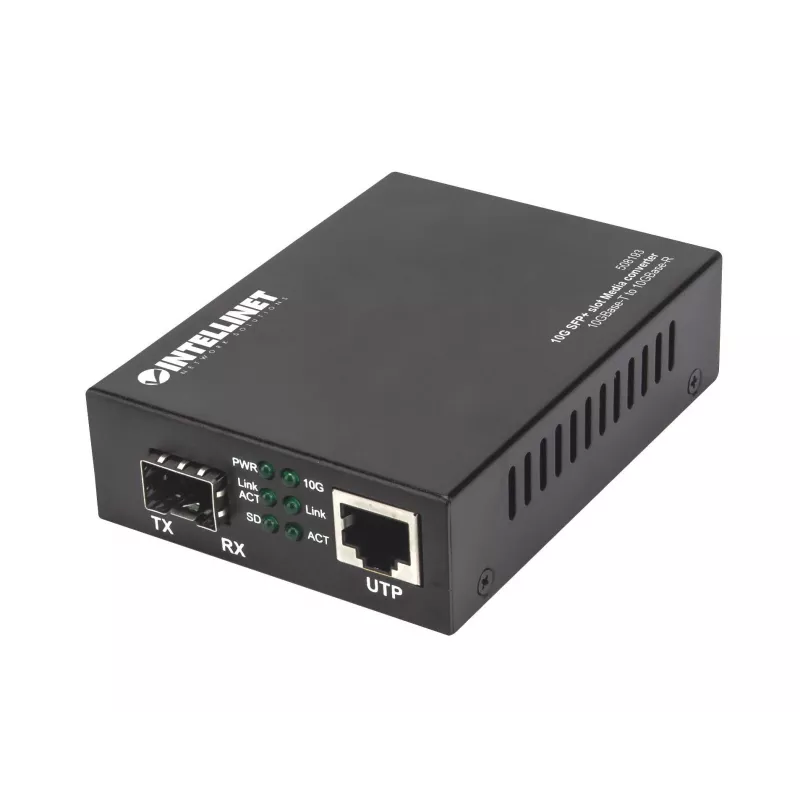

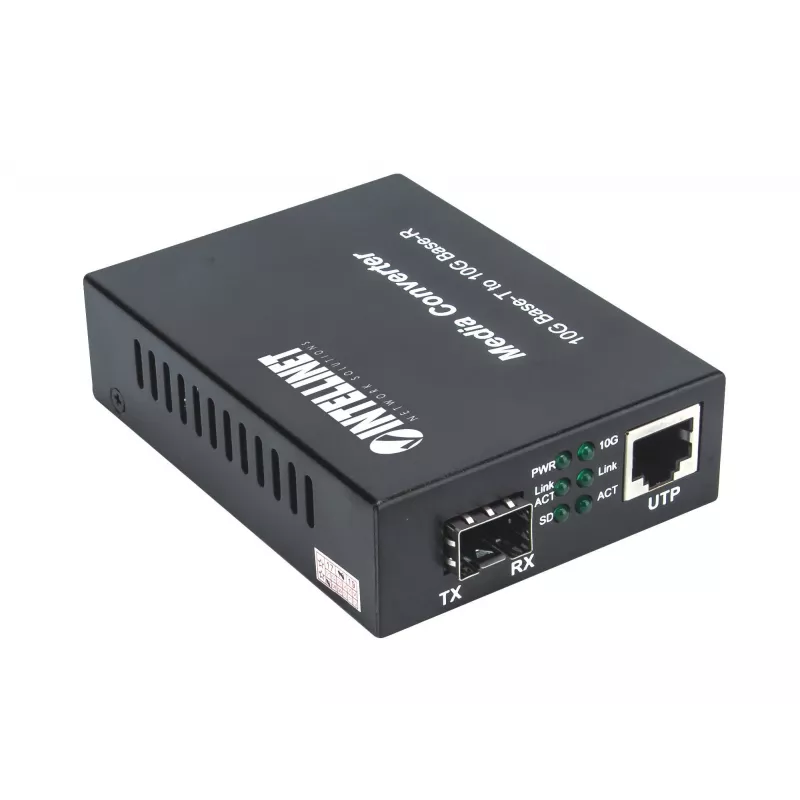

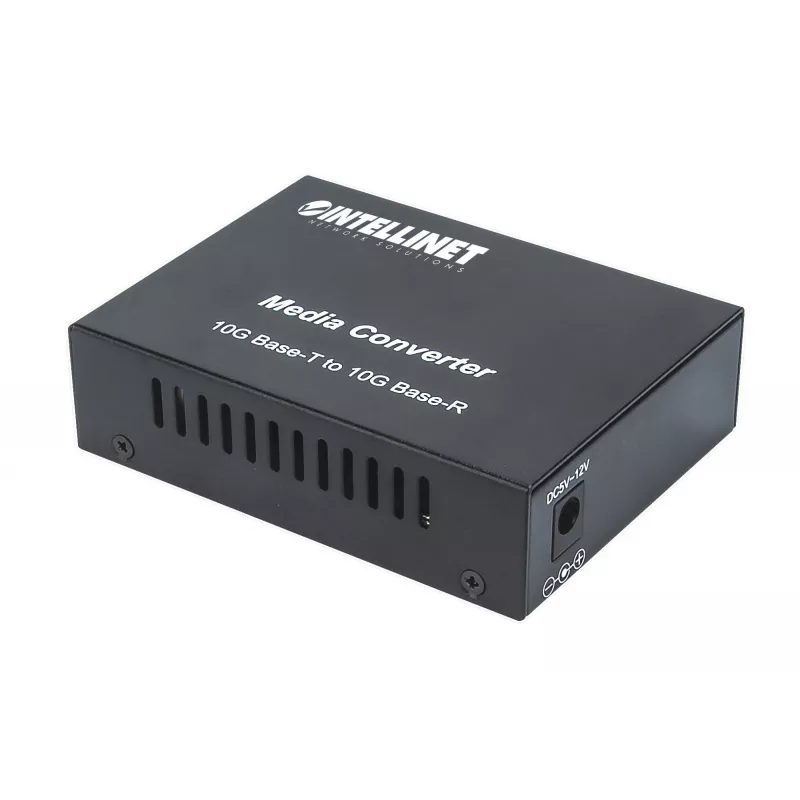

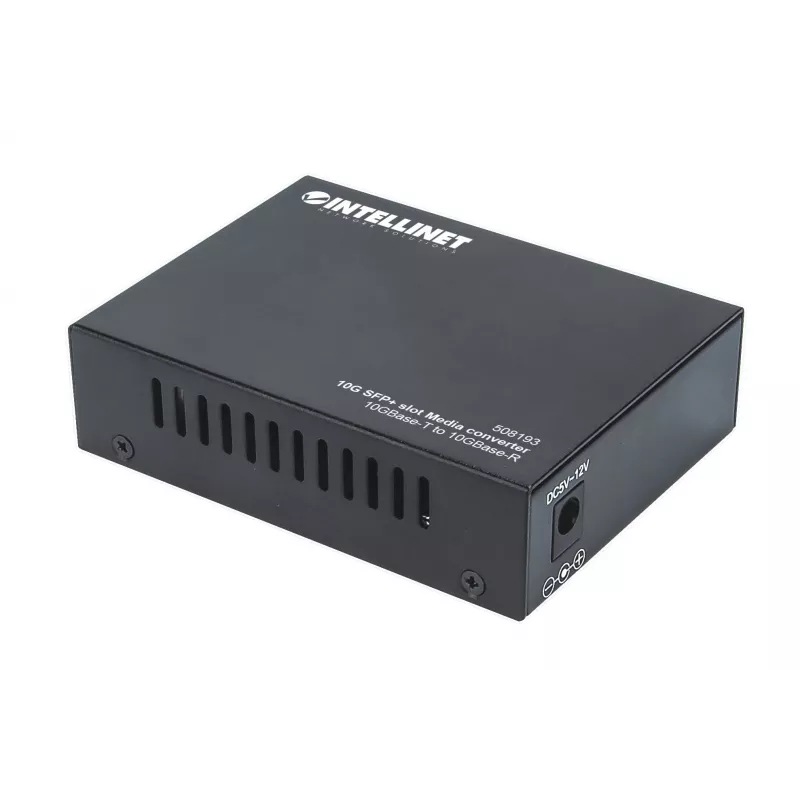

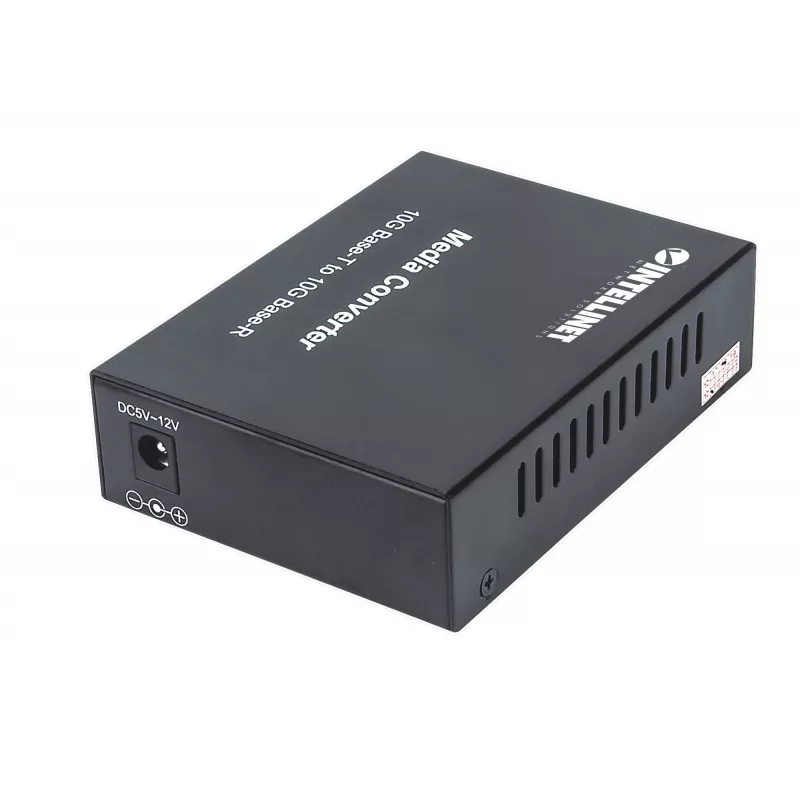

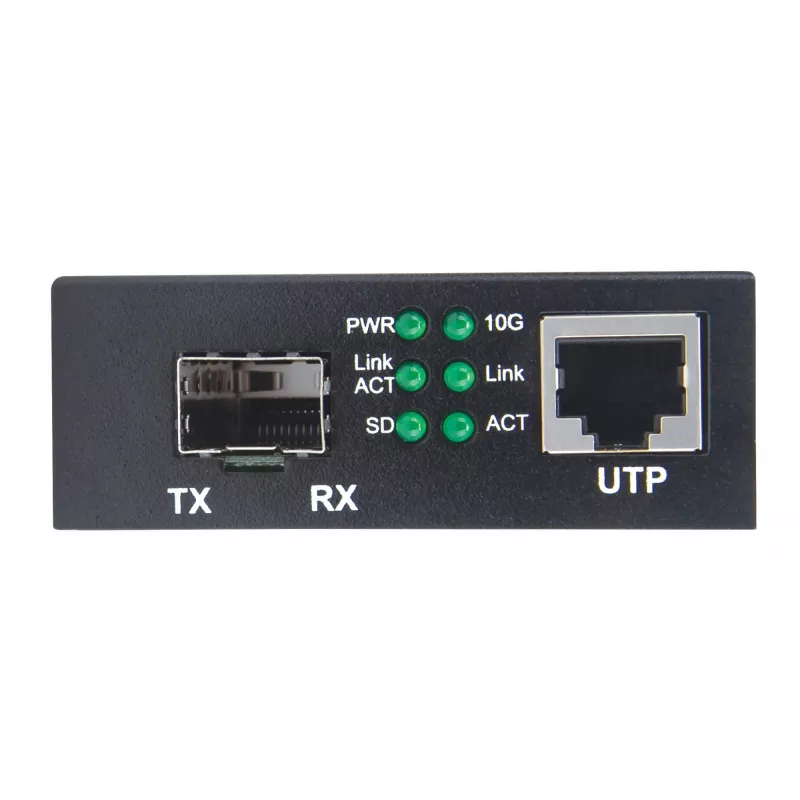

Convertidor de medios Intellinet 10GBase-T a 10GBase-R, 1 ranura SFP+ 10 GB, 1 puerto RJ45 10GB

The Intellinet Network Solutions 10GBase-T to 10GBase-R Media Converter (model 508193) enables migration from copper-based Ethernet to fibre Ethernet with a single 10 Gbps RJ45 port and one 10G SFP+ slot. The compact metal-housed converter supports IEEE 802.3u and preserves existing network behaviour while adding fibre connectivity for longer links, building-to-building connections, or expanded workgroup reach without replacing current copper cabling.

Advantages

The media converter provides a transparent 10 Gbps link between copper and fibre segments, maintaining network performance while extending reach. It supports flexible cabling options, can be used in desktop, wall-mount or rack-mounted chassis installations, and includes LED indicators for link and activity. Low power consumption and a durable metal enclosure make it suitable for continuous operation.

Suitable for

• Extending Ethernet segments over fibre for increased distance
• Connecting separate buildings or remote workgroups
• Migrating portions of a network from copper to fibre without replacing existing copper runs
• Environments requiring a single 10 Gigabit fibre or copper interface (SFP+ to 10GBase-T)

Key specifications

• Model: Intellinet 10GBase-T to 10GBase-R (508193)
• Ports: 1 x 10G RJ45 (10GBase-T), 1 x 10G SFP+ (10GBase-R)
• Maximum data transfer rate: 10000 Mbit/s
• Supported Ethernet data rates: 10000, 5000, 2500, 1200, 1000, 100, 10 Mbit/s
• Maximum copper transfer distance: up to 100 m (10GBase-T)
• Fiber connector: SFP+
• Standards: IEEE 802.3u
• Power: 12 V, max 5 W
• Colour: Black; Weight: 0.2 kg

How to use

Install the required SFP+ module and fibre cable into the SFP+ slot and connect the RJ45 port to the copper Ethernet device or switch using a Cat6a/Cat7 cable for 10GBase-T operation. Power the unit with the provided 12 V adapter and verify link/activity LEDs to confirm connectivity. Place the converter on a desktop, mount it on a wall, or install it in a compatible 19" rackmount chassis when multiple units are used.

Recommendations

For reliable 10 Gbit/s performance over copper, use high-quality Cat6a or Cat7 cable for runs up to 100 m and ensure the SFP+ module and fibre type (single-mode or multi-mode) match the connected fibre equipment. Keep the converter in a ventilated area and follow manufacturer guidelines for rackmount chassis capacity when deploying multiple units.
