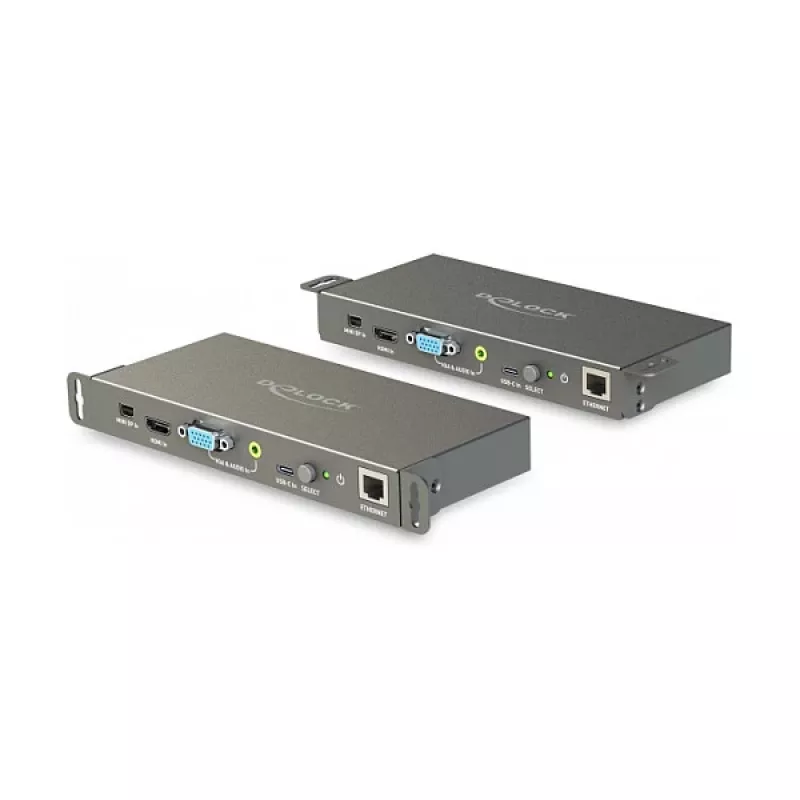

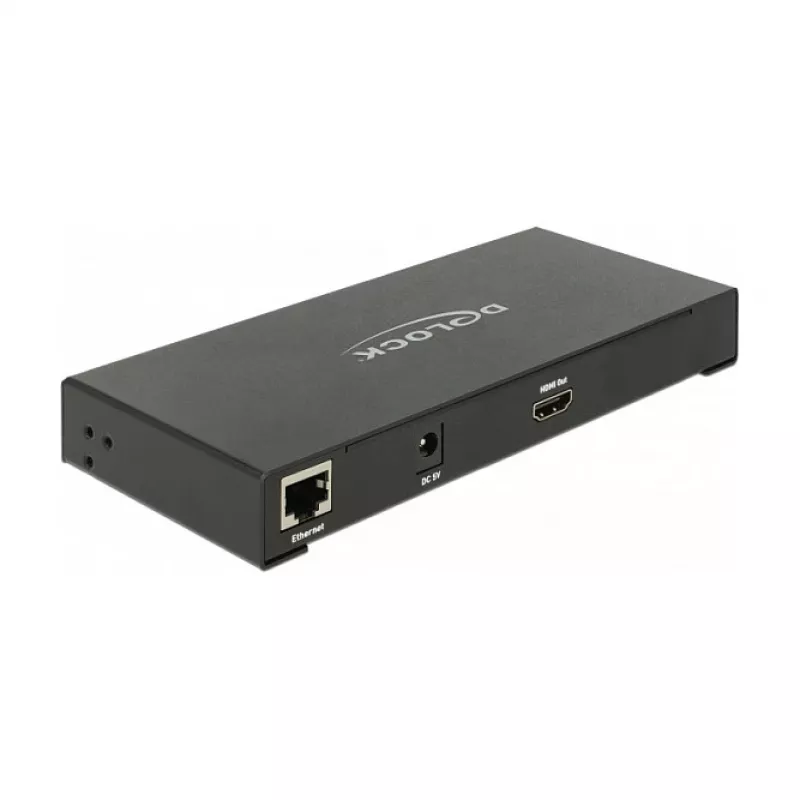

Convertidor de señal de vídeo DeLOCK 87732

The Video Signal Converter DeLOCK 87732 converts multiple video sources into a single HDMI output, supporting resolutions up to 3840 x 2160 pixels. Inputs include USB-C (DP Alt Mode), VGA with 3.5 mm audio, Mini DisplayPort and HDMI. The unit has an HDMI output and an RJ-45 interface, is housed in a compact metal enclosure (179 x 80 x 25 mm) and operates from 100–240 V at 50/60 Hz. The black device is intended for connecting different audio/video sources to a display or projector with an HDMI input.

Advantages

The converter provides a reliable way to route multiple input types to a single HDMI output without requiring additional adapters. Its support for up to 4K (3840 x 2160) resolution ensures high-quality video output, while the metal housing offers durability and heat dissipation. Compact dimensions make it easy to integrate into AV setups, and the wide input voltage range allows use in different regions.

Suitable for

• Connecting laptops with USB-C (DP Alt Mode) to HDMI displays
• Using older computers or devices with VGA output together with 3.5 mm audio
• Integrating Mini DisplayPort-equipped devices into HDMI-only projectors or TVs
• Switching between multiple HDMI sources for a single HDMI display

Key specifications

• Model: DeLOCK 87732
• Maximum resolution: 3840 x 2160 pixels
• Inputs: USB-C (DP Alt Mode), VGA + 3.5 mm audio, Mini DisplayPort, HDMI
• Output: HDMI
• Interfaces: HDMI, RJ-45
• Power input: 100–240 V, 50/60 Hz
• Housing: metal, colour: black
• Dimensions: 179 x 80 x 25 mm

How to use

Place the converter near the display or projector and connect the HDMI output to the display's HDMI input. Select and connect one of the supported input sources (USB-C, VGA with 3.5 mm audio, Mini DisplayPort or HDMI). Ensure the source device is powered on and, for USB-C, that it supports DisplayPort Alt Mode. If using VGA, connect the audio to the 3.5 mm input. Supply mains power within the specified 100–240 V range. Switch on the display and select the corresponding HDMI input to view the signal.

Recommendations

For best video quality, use high-speed HDMI cables and verify that the source device outputs the desired resolution. When connecting VGA sources, confirm audio routing through the 3.5 mm input. Ensure adequate ventilation around the metal housing and use stable mains power within the specified range.
