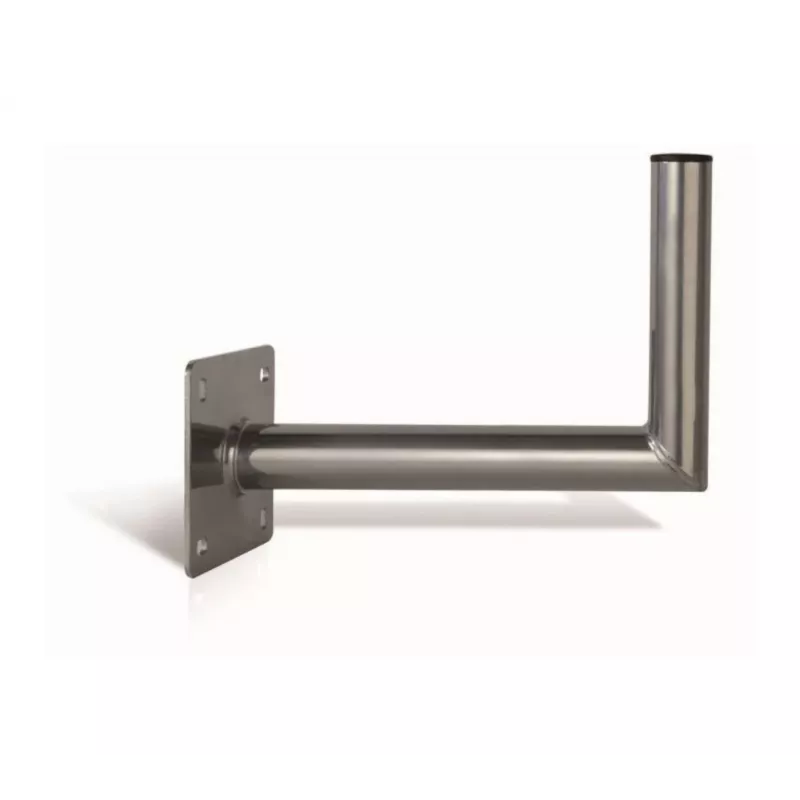

CORAB USL-48/400AL Soporte de pared angular 48mm 400mm aluminio

The CORAB USL-48/400AL is a robust angled wall mount bracket designed for secure installation of satellite dishes, terrestrial antennas, and CCTV cameras. Made from high-quality aluminum, it offers excellent corrosion resistance and durability for outdoor use.

Advantages

This wall mount bracket provides a reliable and sturdy solution for mounting equipment on walls. Its aluminum construction ensures long-lasting performance even in harsh weather conditions. The angled design allows for optimal positioning of antennas and dishes, improving signal reception.

Suitable for

• Satellite dishes
• Terrestrial antennas
• CCTV cameras
• Outdoor installations requiring a wall-mounted bracket

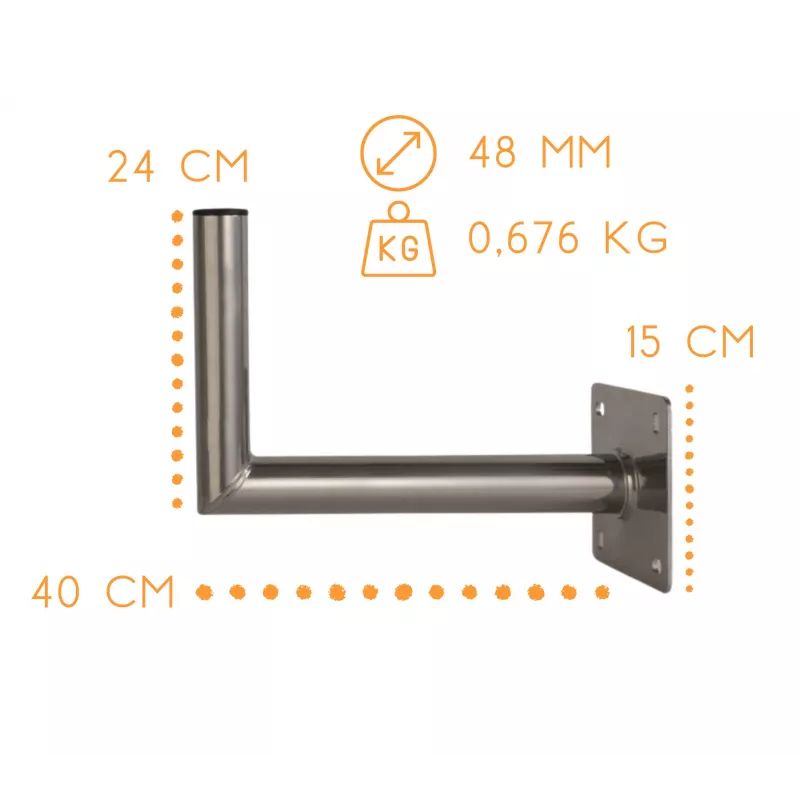

Key specifications

• Mount Type: Angled Wall Mount
• Material: Aluminum
• Pipe Diameter: 48 mm
• Wall Offset (Projection): 400 mm
• Bracket Height: 250 mm

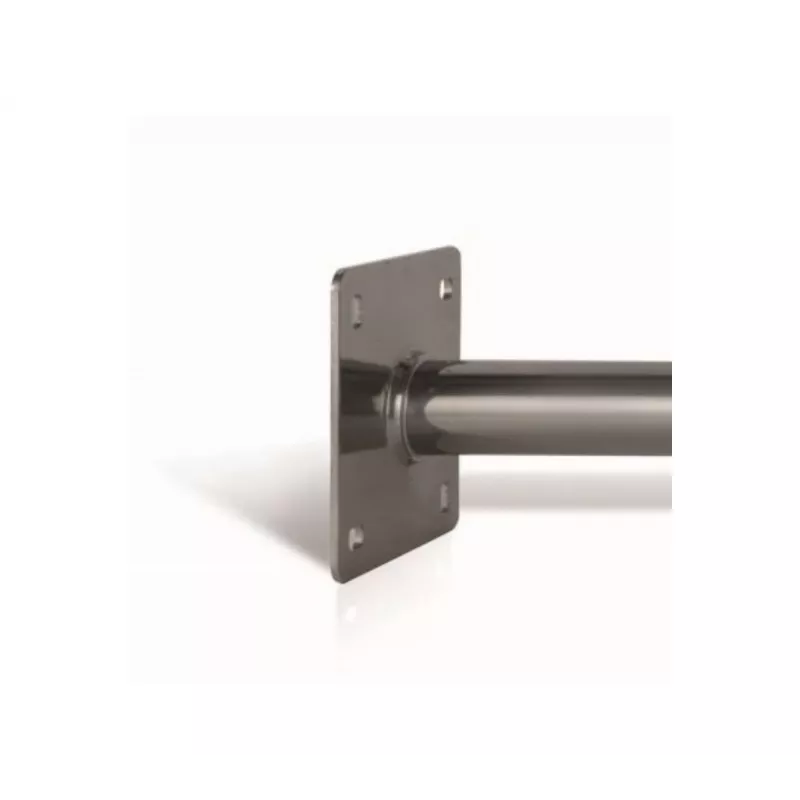

• Wall Plate Dimensions: 100 x 100 mm
• Number of Mounting Holes: 4
• Mounting Hole Diameter: 10 mm
• Corrosion Resistance: High

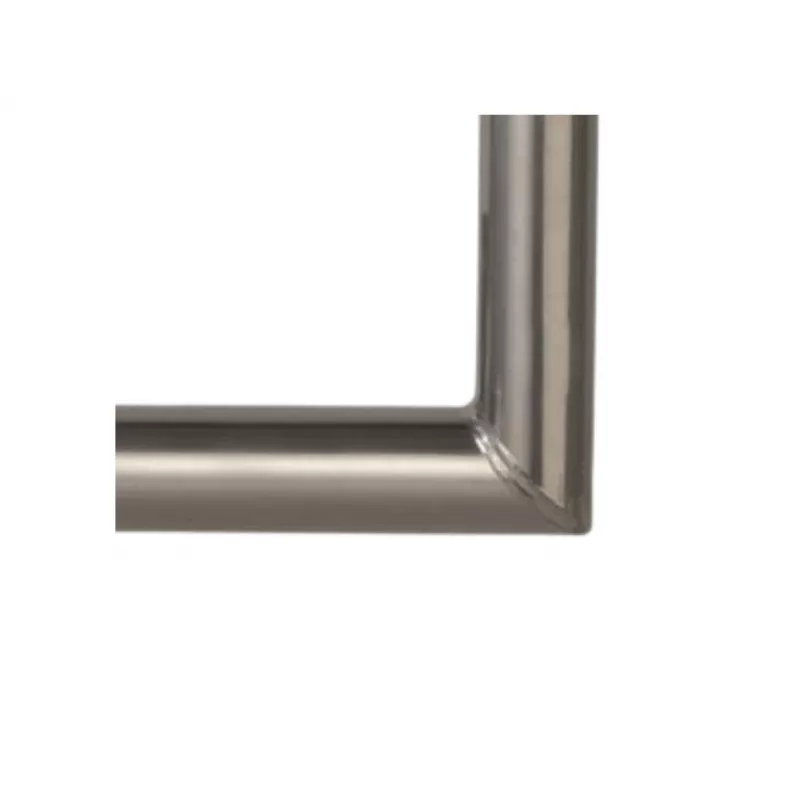

• Construction: Welded
• Finish: Natural Aluminum
• Compatibility: Masts/pipes up to 48mm diameter
• Intended Use Environment: Outdoor
• Product Series: USL

Recommendations

For best results, ensure the wall surface is solid and capable of supporting the weight of the mounted equipment. Use appropriate fasteners (not included) for your wall type. This bracket is ideal for professional installers and DIY enthusiasts alike.
