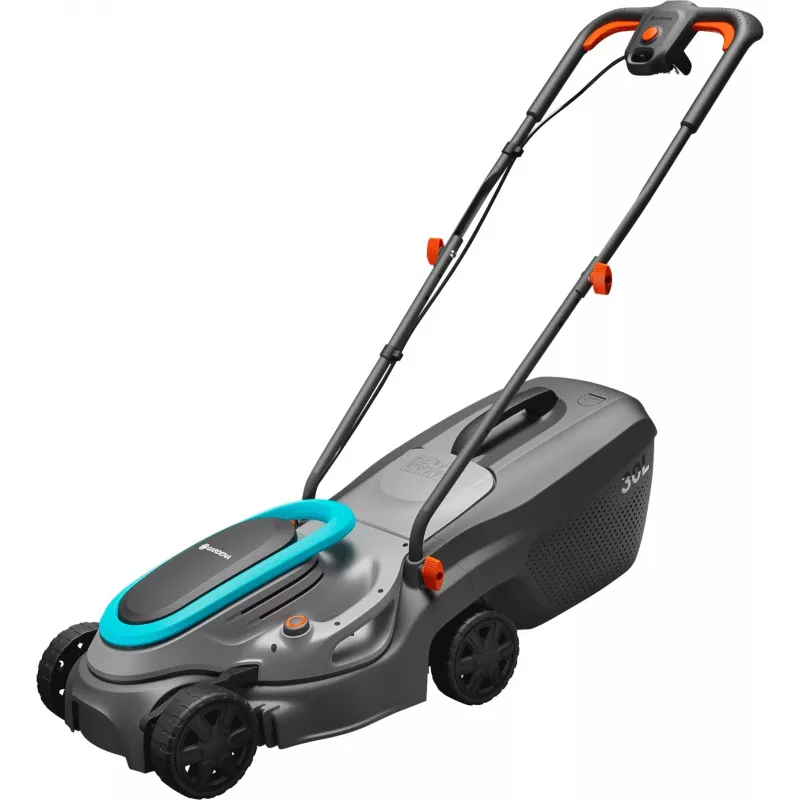

Cortacésped Gardena 14633-20

The GARDENA Lawn Mower 14633-20 is an electric mower designed for small to medium-sized lawns up to 300 m². It provides an even, clean cut with a double-hardened DuraEdge blade and precision grinding. The compact, lightweight design and foldable handle make storage and maneuvering easy, while the 30-litre grass box with guided air circulation collects clippings efficiently. Central cutting height adjustment lets you set the mower between 35 and 65 mm in four steps.

Advantages

The double-hardened DuraEdge blade with precision grinding ensures consistent cutting quality. Guided air circulation combined with the 30-litre grass box increases collection capacity and reduces the frequency of emptying. The ErgoTec handle and three-step adjustable handle height improve ergonomics and ease of use. The mower is compact and lightweight for good maneuverability and convenient storage thanks to a foldable handle. Central QuickFit-Plus adjustment allows fast, one-handed changes of cutting height.

Suitable for

• Small to medium lawns up to 300 m²
• Garden owners who need a compact, lightweight electric mower
• Those who prefer collected grass clippings rather than mulching
• Lawns requiring 35–65 mm cutting height range

Key specifications

• Model: GARDENA 14633-20
• Cutting width: 320 mm
• Cutting height (min–max): 35–65 mm (4 steps)
• Maximum lawn area: 300 m²
• Grass box capacity: 30 L
• Power source: AC
• Weight: 9.7 kg
• Colour: Grey
• Dimensions (W×D×H): 1140 × 370 × 950 mm
• EAN: 4078500062022

How to use

Before use, check that the grass box is securely fitted and the blade area is clear of debris. Adjust the cutting height centrally using the QuickFit-Plus button to one of four positions between 35 and 65 mm. Start mowing in straight, overlapping passes at a steady walking pace. Periodically monitor the fill level indicator on the grass box and empty the 30-litre collector when full. After mowing, switch off and disconnect the power, fold the handle for storage, and clean any accumulated grass from the housing and combs.

Recommendations

For best results mow when grass is dry, keep the blade sharp, and empty the grass box before it becomes overly compacted. Match handle height to your body using the three-step adjustment to reduce fatigue during longer mowing sessions.
