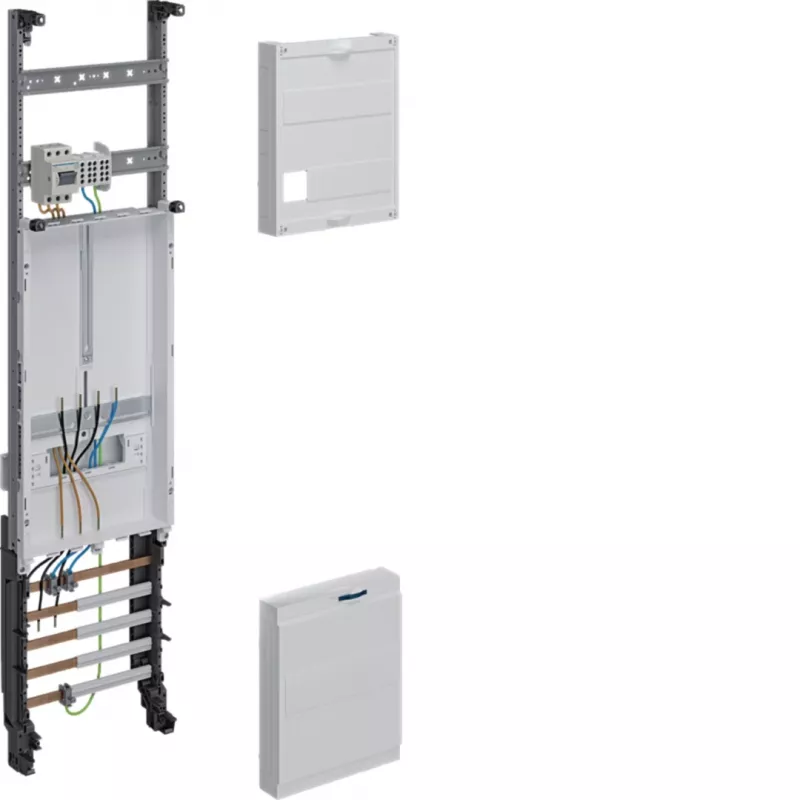

Cuadro de contadores completo Hager ZH32P7KT 1050x250 mm trifásico 1 posición de contador 10 mm² con función de corte

For electrical installers and panel builders setting up a residential or commercial metering point, the Hager ZH32P7KT complete meter field provides a ready-to-install 3-phase meter cabinet section. It accommodates one meter position and includes an integrated disconnecting function, simplifying compliance with local utility requirements.

Key specifications

• Product type: Complete meter field
• Number of meter positions: 1
• Phase configuration: 3-phase
• Conductor cross-section (main): 10 mm²
• Integrated disconnecting function: Yes
• Rated current (In): 63 A
• Rated voltage (Un): 230/400 V AC
• System compatibility: Hager Z-series meter cabinets
• Mounting type: Snap-in / Screw mounting
• Terminal type: Screw terminals
• Busbar connection: Prepared for 5-pole busbar system
• Height: 1050 mm
• Width: 250 mm
• Depth: 160 mm
• Material: Galvanized sheet steel, plastic components
• Protection degree (internal): IP2X
• Number of PE/N terminals: 2x PE, 2x N (for 10mm² connections)
• Standards: DIN VDE, VDE-AR-N 4100

Why choose it

This meter field is designed for Hager Z-series meter cabinets, ensuring a precise fit and straightforward assembly. The integrated disconnecting function allows safe isolation of the meter without additional components, saving installation time and reducing wiring complexity.

Ideal use cases

• Residential meter installations in single or multi-family homes
• Commercial metering points within Hager Z-series distribution systems
• Retrofit projects requiring a compliant 3-phase meter enclosure

Good to know

The unit is prepared for a 5-pole busbar connection and includes two PE and two N terminals sized for 10 mm² conductors. Its compact 250 mm width allows efficient use of cabinet space while maintaining accessibility for meter reading and maintenance.
