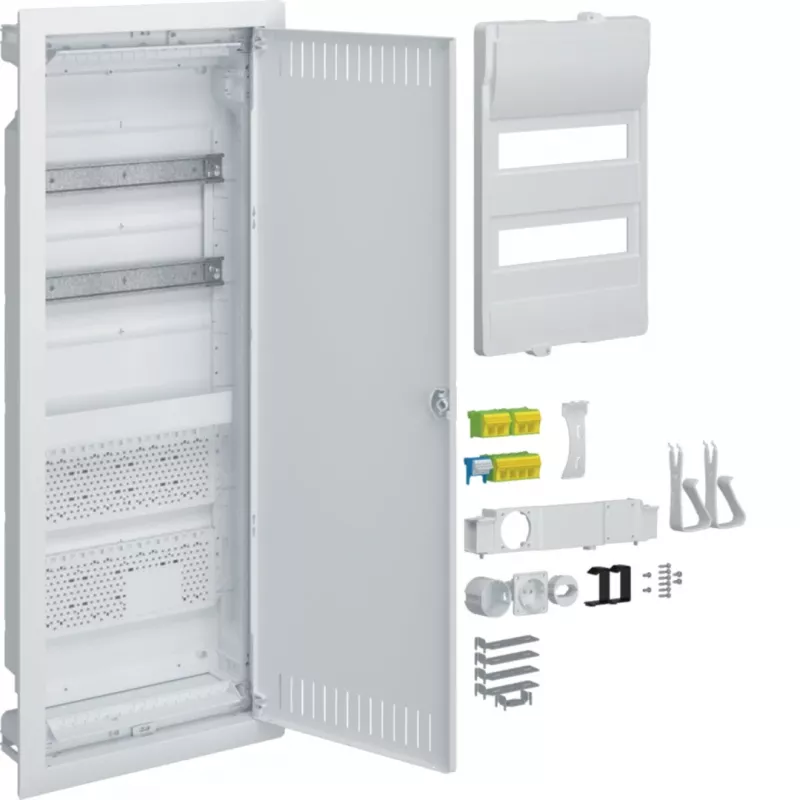

Cuadro de distribución de empotrar HAGER VU602NWH con toma de corriente y puerta de acero, 2 filas, 24 módulos, blanco

Flush-mounted distribution board with integrated Schuko socket and white steel sheet door, providing a compact and secure enclosure for electrical sub-distribution in residential and light commercial applications.

Advantages

The HAGER VU602NWH combines a robust plastic housing with a steel door, offering protection and easy access. The integrated 230V/16A socket adds convenience for maintenance or temporary power needs. Pre-punched knockouts and included N/PE terminals simplify installation.

Suitable for

• Residential electrical distribution
• Light commercial sub-distribution
• Flush-mounted installations

Key specifications

• Mounting type: Flush-mounted
• Number of rows: 2
• Module units: 24 (12 per row)
• Door type: Steel sheet door, white (RAL 9010)
• Protection class: IP30 (with door closed)
• Impact resistance: IK07
• Housing material: Plastic (polystyrene)
• Door material: Steel sheet
• Integrated socket: Schuko, 230V/16A
• Terminal blocks: N and PE terminals included
• Rated voltage: 400V AC
• Rated current: Up to 63A
• Halogen-free: Yes
• Standards: DIN VDE 0603-1, DIN 43871
• Installation depth: 72 mm
• Cable entry: Pre-punched knockouts (top, bottom, side)

Recommendations

Ideal for electricians seeking a reliable flush-mounted distribution board with integrated socket and durable steel door for residential or light commercial projects.
