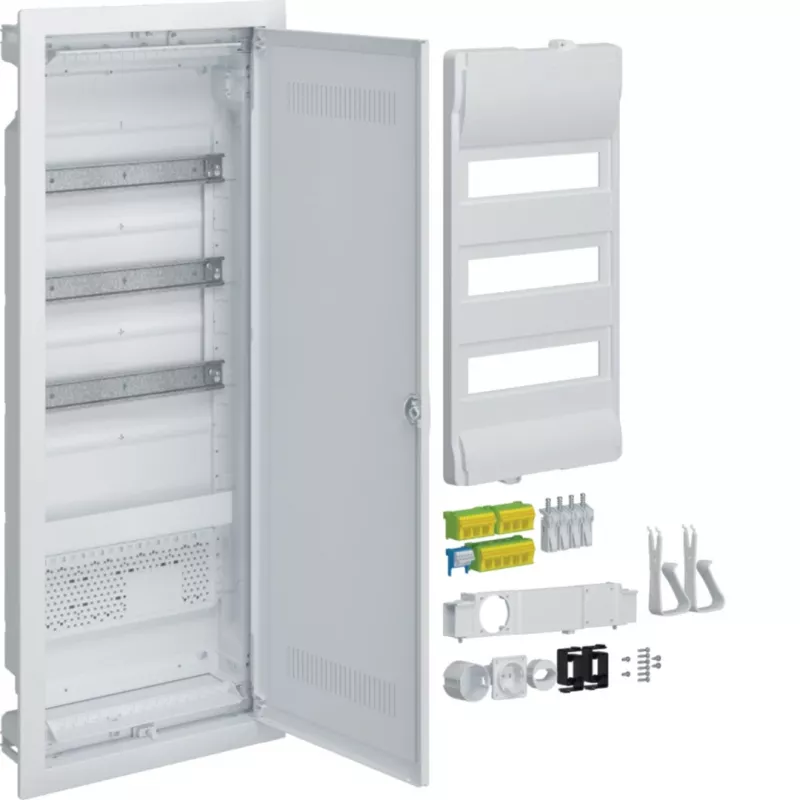

Cuadro de distribución de empotrar HAGER VU603WWH con toma de corriente integrada y puerta de plástico, 3 filas, 36 módulos, blanco

The HAGER VU603WWH sets itself apart from standard distribution boards by integrating a Schuko socket directly into the enclosure, eliminating the need for a separate outlet near the installation. Its three-row layout provides 36 module units for flexible circuit configuration, while the white plastic door with 180° opening angle and reversible hinge simplifies access during installation and maintenance.

Highlights

• Flush-mounted plastic enclosure with 3 rows and 36 module units (12 per row)
• Integrated Schuko socket (Type F) for convenient power access
• White plastic door (RAL 9010) with 180° opening and reversible hinge
• Includes N and PE terminal blocks for secure wiring
• Halogen-free material with glow wire resistance up to 850 °C

In daily use

Designed for residential and commercial electrical installations, this distribution board offers ample space for circuit breakers, residual current devices, and other modular components. The integrated socket allows for temporary power supply during maintenance without extra wiring. The robust plastic construction ensures durability, while the IP30 protection class guards against solid objects larger than 2.5 mm.

Full specifications

• Mounting type: Flush-mounted
• Number of rows: 3
• Module units: 36 (12 per row)
• Door material: Plastic
• Door colour: White (RAL 9010)
• Protection class: IP30
• Impact resistance: IK07
• Rated current: 63 A
• Enclosure material: Plastic
• Integrated socket: Yes, Schuko (Type F)
• Terminal blocks: N and PE included
• Halogen-free: Yes
• Glow wire test: 850 °C
• Door opening angle: 180°
• Reversible door: Yes
• Standards: DIN VDE 0603-1, DIN 43871
• Installation depth: 90 mm

Final note

With its integrated socket and flexible door design, the HAGER VU603WWH streamlines electrical distribution while maintaining a clean, professional appearance in any installation.
