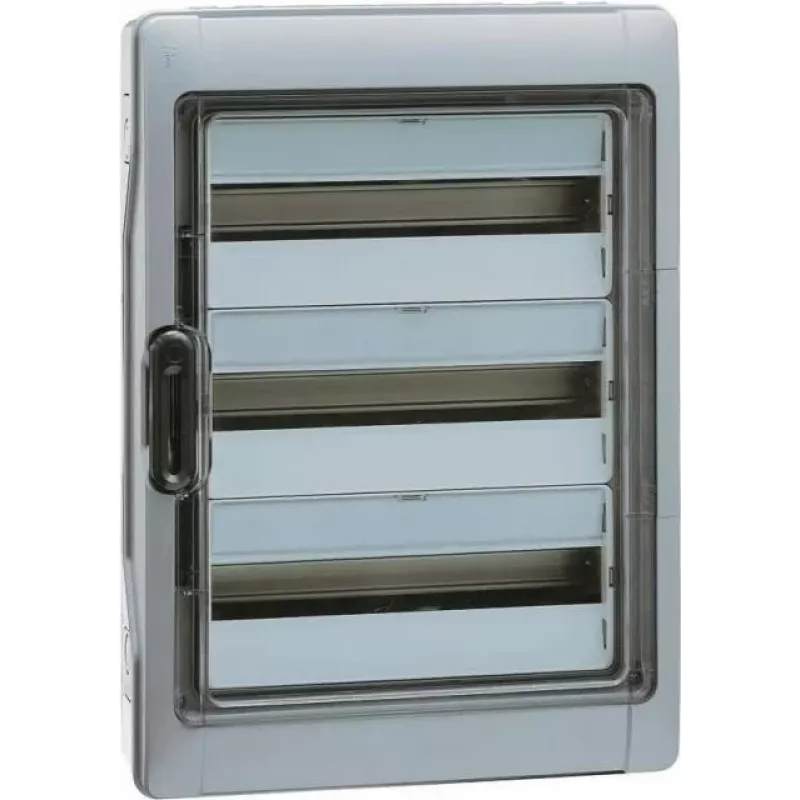

Cuadro de distribución eléctrica Legrand 601983 ancho 340 mm fondo 161 mm alto 622 mm

The Legrand 601983 electrical distribution board provides a compact and organized enclosure for housing circuit breakers and associated wiring in residential and small commercial installations. With external dimensions of 340 mm width, 161 mm depth and 622 mm height, the panel offers a practical balance between installation footprint and internal capacity. The enclosure is designed to facilitate safe power distribution and to accommodate standard modular protective devices, helping to maintain compliance with applicable wiring regulations when installed according to local codes.

Advantages

The distribution board combines a space-efficient footprint with sufficient internal volume for multiple ways of protective modules and DIN-rail mounting. Its front layout is intended to provide easy access for routine inspection, wiring and device replacement while maintaining organized cable routing. Constructed from materials chosen for electrical enclosures, the unit supports secure mounting and protective separation of live parts, contributing to safer operation and reduced risk of accidental contact.

Key specifications

How to use

Install the distribution board on a stable, vertical surface following local electrical codes and manufacturer mounting recommendations. Fix the enclosure at appropriate anchor points and ensure correct orientation. Mount modular protective devices on the internal DIN rail and connect supply and outgoing circuits according to the electrical design, observing correct conductor sizes, torque settings on terminals and clearances. After wiring, verify that protective devices and earthing are properly connected, close the cover, and label circuits for easy identification.

Recommendations

For safe and code-compliant operation, installation and any modification should be performed by a qualified electrician. Select circuit breaker ratings, cable sizes and protective devices appropriate to the intended load and local regulations. Ensure periodic inspection for secure connections and absence of overheating.
