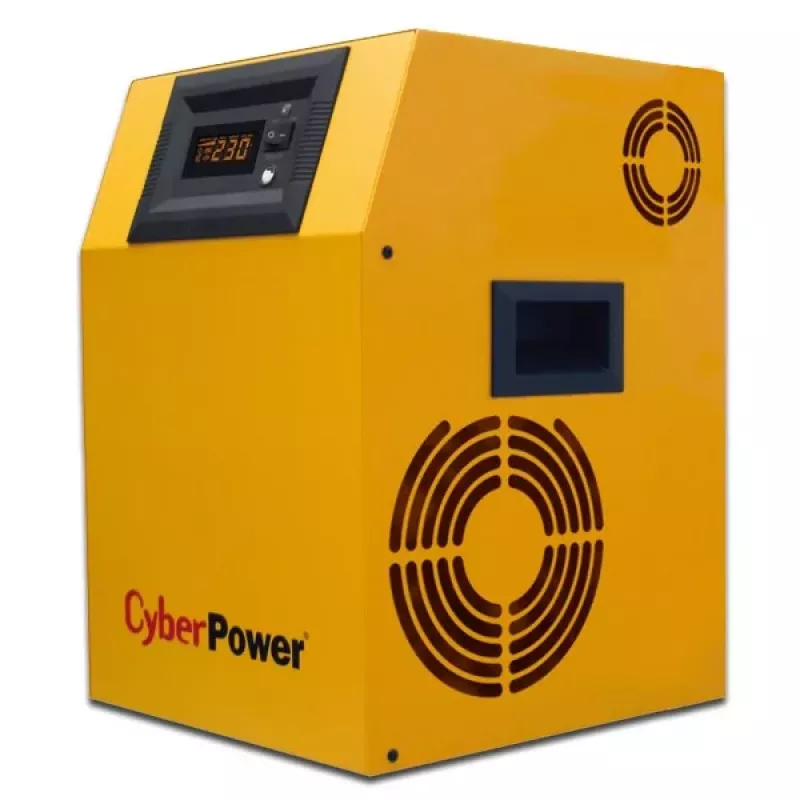

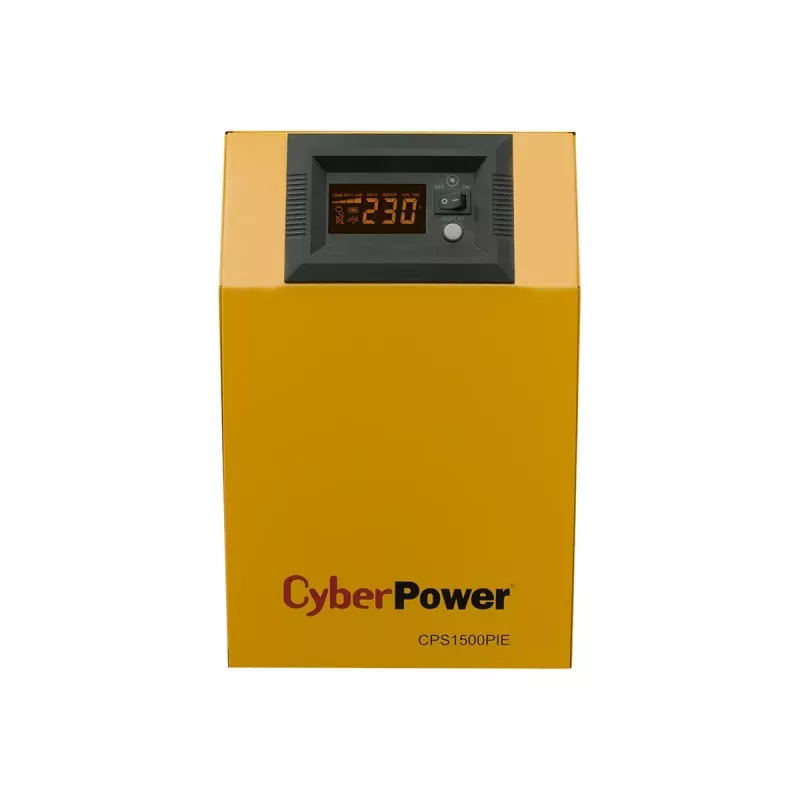

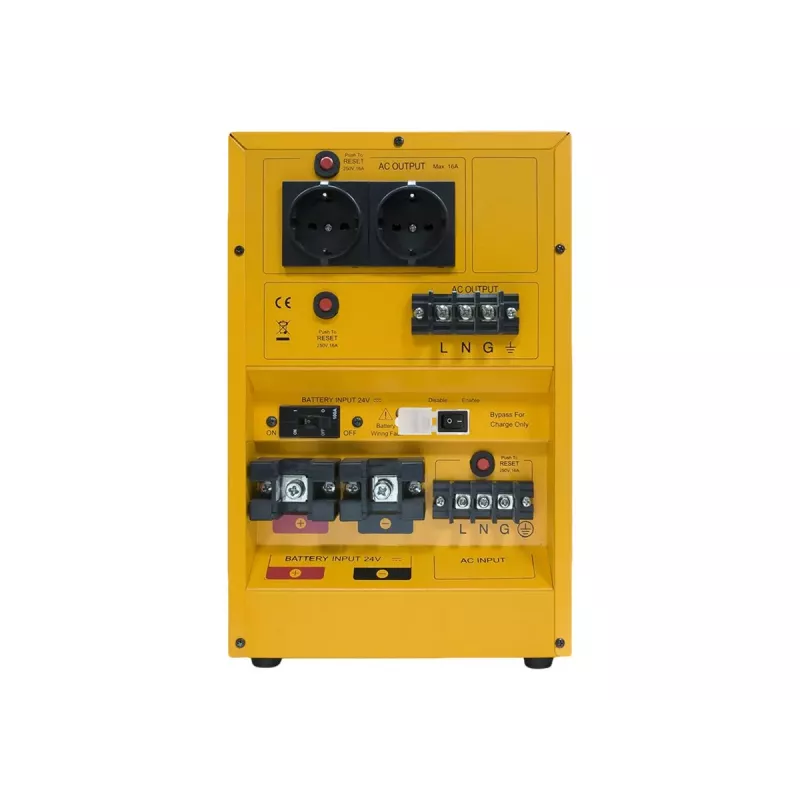

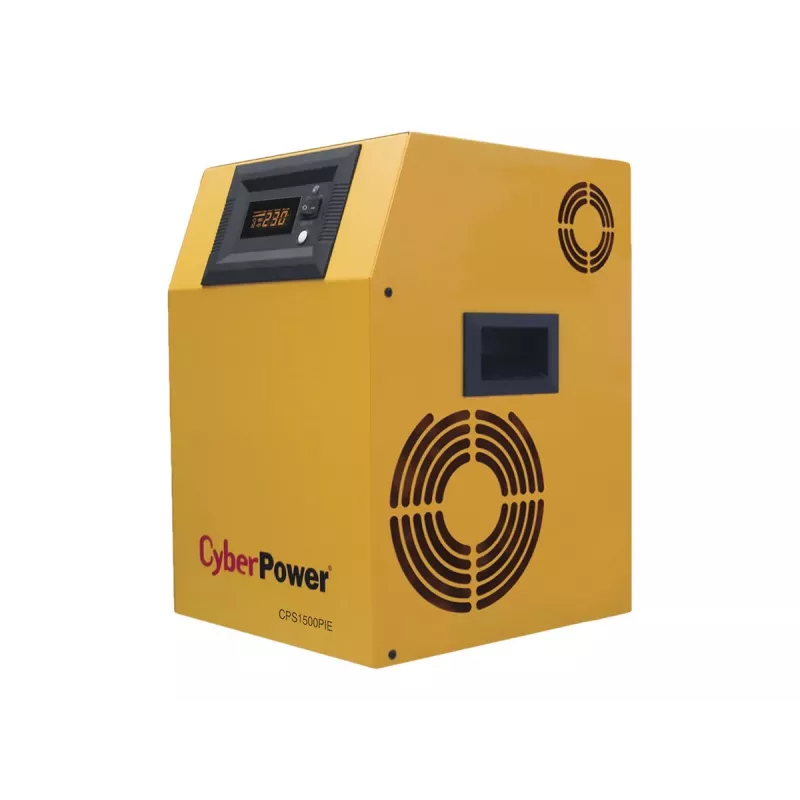

CyberPower CPS1500PIE SAI (Sistema de Alimentación Ininterrumpida) Doble Conversión (Online) 1,5 kVA 1050 W 3 salidas AC

The CyberPower CPS1500PIE is a high-performance double-conversion online UPS designed to provide reliable, uninterrupted power for critical equipment. With a capacity of 1.5 kVA / 1050 W, it delivers pure sine wave output and zero transfer time, ensuring seamless protection against power outages, surges, and fluctuations. Ideal for servers, network devices, and sensitive electronics, this UPS offers flexible rackmount/tower installation in a compact 2U form factor.

Advantages

Double-conversion online topology provides the highest level of power protection by continuously converting incoming AC to DC and back to clean AC, isolating connected devices from all power disturbances. The pure sine wave output ensures compatibility with active PFC power supplies. With 3 IEC C13 outlets, it can power multiple devices. The included USB and RS-232 ports, along with an optional SNMP/HTTP card slot, enable remote monitoring and management.

Suitable for

• Servers and data centers
• Network switches, routers, and firewalls
• Telecommunications equipment
• Medical devices and laboratory instruments
• Point-of-sale systems and industrial controls

Key specifications

• UPS Topology: Double-Conversion (Online)
• Capacity: 1500 VA / 1050 W
• Output Waveform: Pure Sine Wave
• Nominal Output Voltage: 230 V
• Output Frequency: 50/60 Hz (Auto-sensing)
• Output Connections: 3 x IEC C13
• Input Connection: 1 x IEC C14
• Battery Type: Sealed Lead Acid (Maintenance Free)
• Typical Recharge Time: 4 hours to 90%
• Runtime (Full Load): 3 minutes
• Runtime (Half Load): 10 minutes
• Management Ports: USB Type B, Serial (RS-232), EPO
• SNMP/HTTP Card Slot: Yes (Optional RMCARD205)
• Form Factor: Rackmount / Tower (2U)
• Efficiency (Online Mode): Up to 90%
• Noise Level: < 50 dBA
• Transfer Time (AC to Battery): 0 ms

Recommendations

For optimal performance, install the UPS in a well-ventilated area and avoid overloading. Use the provided USB or RS-232 cable to connect to a management system. Consider adding the optional RMCARD205 SNMP/HTTP card for remote monitoring via network.
