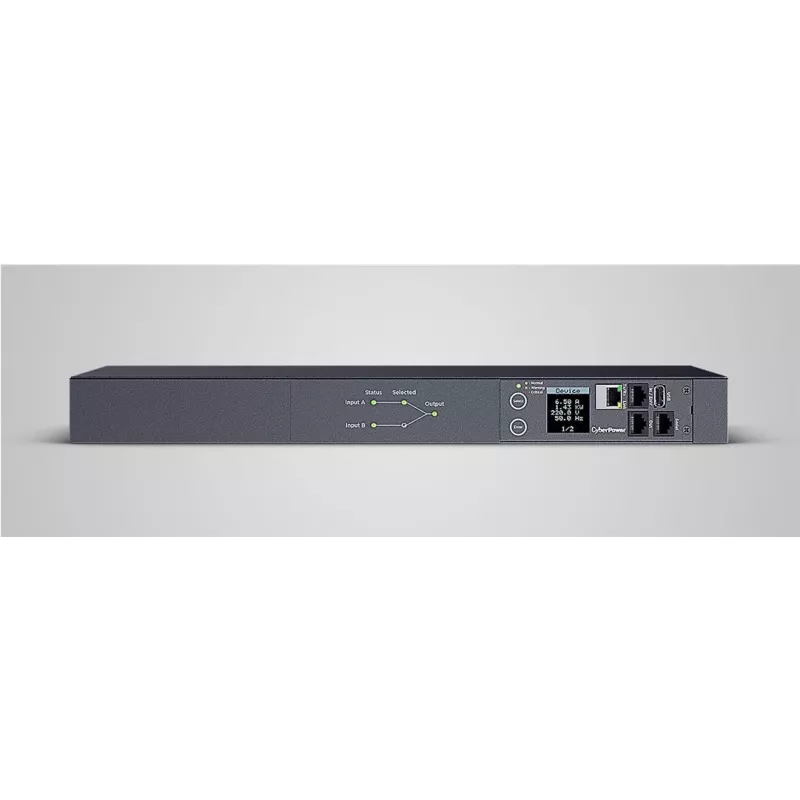

CyberPower PDU Switched ATS 1U 16A 8xC13 2xC19

The CyberPower PDU84005 is a professional-grade Switched ATS PDU designed for data centers and server rooms requiring reliable power distribution and remote management. This 1U rackmount unit provides 10 outlets (8 x IEC C13 and 2 x IEC C19) with individual outlet switching, enabling precise power control and energy savings. With dual 20A IEC C20 inputs and automatic transfer switching (ATS), it ensures seamless failover between primary and secondary power sources, maximizing uptime for critical equipment.

Advantages

This PDU offers advanced remote management via Ethernet and serial interfaces, supporting SNMP, HTTP, HTTPS, SSH, and Telnet for secure monitoring and control. The 16A circuit breaker provides overload protection, while the LED indicators display power, network, and outlet status at a glance. Firmware upgradeable via network, it stays current with evolving standards.

Suitable for

• Data centers requiring redundant power distribution
• Server racks with mixed C13 and C19 equipment
• IT environments needing remote outlet switching and power monitoring

Key specifications

• PDU Type: Switched ATS
• Form Factor: Rackmount, 1U
• Input Voltage: 200-240V AC
• Input Current: 16A
• Input Connector: 2 x IEC C20
• Output Voltage: 200-240V AC
• Total Output Current: 16A
• Number of Output Outlets: 10
• Output Outlet Types: 8 x IEC C13, 2 x IEC C19
• Management Interface: Ethernet (RJ45), Serial (RJ45)
• Network Protocols: HTTP, HTTPS, SNMP, DHCP, NTP, DNS, Telnet, SSH, IPv4/IPv6
• Outlet Control: Individual Outlet Switching
• Overload Protection: 16A Circuit Breaker
• LED Indicators: Power, Network, Outlet Status
• Mounting Orientation: Horizontal
• Housing Material: Metal
• Firmware: Upgradeable
• Environmental Monitoring Port: Yes (for optional sensors)

Recommendations

For optimal performance, pair with CyberPower environmental sensors to monitor temperature and humidity. Ideal for mission-critical applications where power redundancy and remote management are essential.
