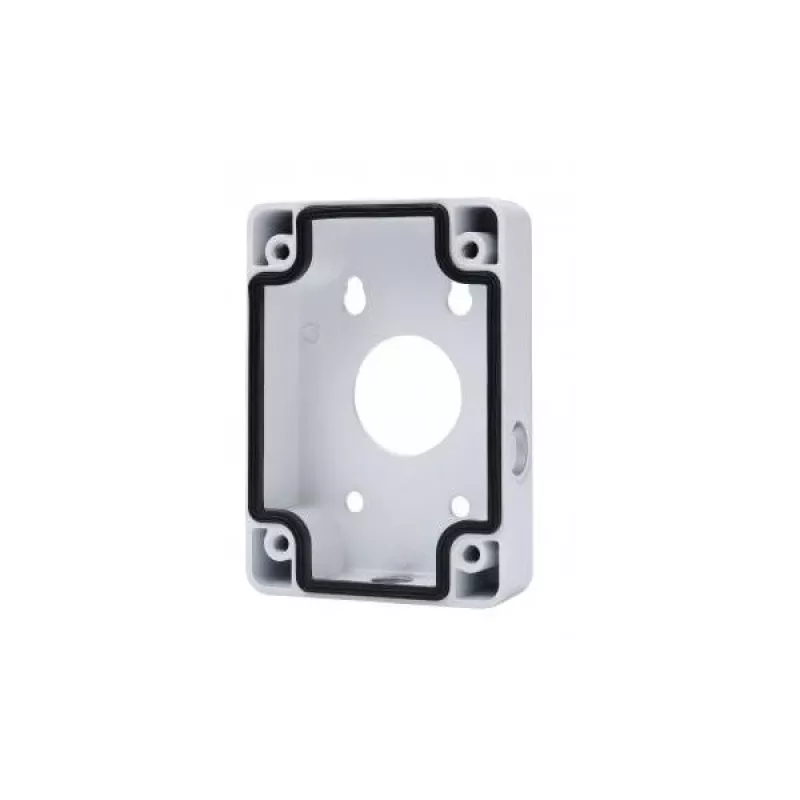

Dahua PFA120 Caja de conexiones impermeable, aluminio, blanca

The Dahua PFA120 is a high-quality water-proof junction box designed for secure and reliable cable connections in surveillance systems. Constructed from die-cast aluminum with an IP66 rating, it ensures protection against dust and water ingress, making it suitable for both indoor and outdoor installations.

Advantages

This junction box offers a neat and integrated design, facilitating easy cable management and installation. Its robust aluminum construction provides excellent corrosion resistance and durability, while the IP66 rating guarantees reliable performance in harsh weather conditions. The compact size allows for discreet mounting on walls or ceilings.

Suitable for

• Dome cameras (select Dahua models)
• Outdoor and indoor surveillance installations
• Applications requiring waterproof and dustproof cable connections

Key specifications

• Material: Die-cast Aluminum
• Color: White
• Ingress Protection: IP66
• Dimensions: Φ108.0mm x 30.0mm
• Net Weight: 0.24 kg
• Load Bearing Capacity: 1.0 kg
• Operating Temperature: -40°C to +60°C
• Operating Humidity: 0~90% RH
• Mounting Type: Wall Mount, Ceiling Mount
• Compatible Mounts: PFB300S, PFB300W, PFB301W

Recommendations

For optimal performance, use the PFA120 junction box with compatible Dahua dome cameras and mounting brackets. Ensure proper sealing of cable entries to maintain IP66 integrity.
