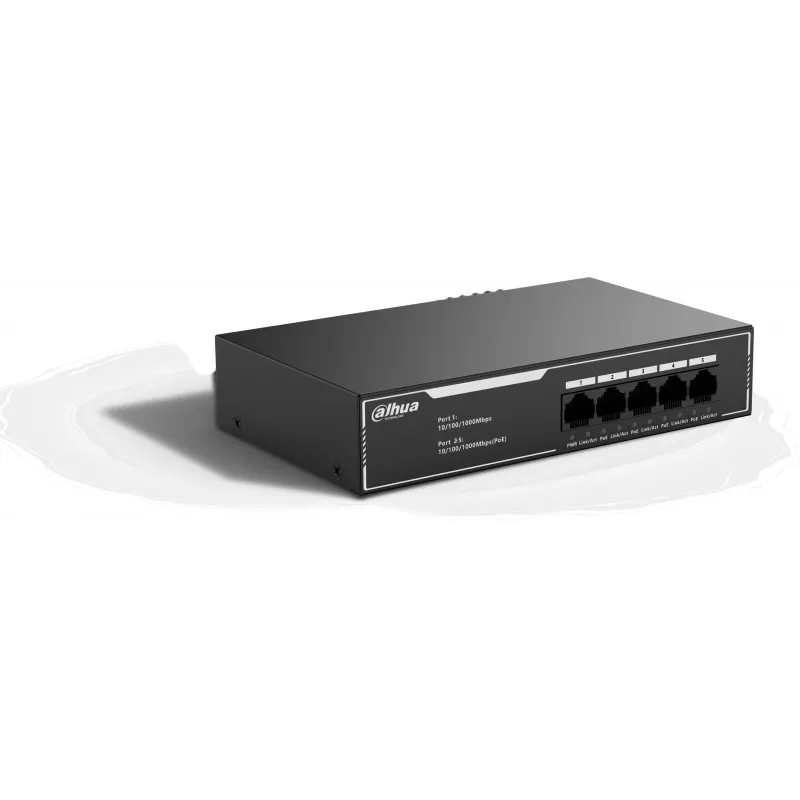

Dahua SG1005LP switch Gigabit PoE+ de 5 puertos, 4 puertos PoE, presupuesto 35W, sobremesa

Expanding a network with multiple PoE devices often means juggling separate power injectors and adapters. The Dahua SG1005LP solves this by combining data and power delivery over a single cable. This unmanaged desktop switch offers five Gigabit Ethernet ports, four of which support Power over Ethernet Plus (PoE+), delivering up to 30W per port and a total budget of 35W. It is ideal for connecting IP cameras, VoIP phones, and wireless access points in small offices or home setups without the clutter of extra power supplies.

Who is it for

The SG1005LP is perfect for small business owners, home users, and surveillance installers who need a simple, reliable way to power and connect PoE-enabled devices. No configuration is required—just plug in your devices and they are ready to work. Its compact, fanless design ensures silent operation, making it suitable for quiet environments like offices or meeting rooms.

Main features

• 5 Gigabit Ethernet ports for high-speed wired connections
• 4 PoE+ ports (IEEE 802.3af/at) with up to 30W per port
• Total PoE power budget of 35W to support multiple devices
• Plug-and-play unmanaged operation—no setup needed
• Fanless metal housing for silent, durable performance
• Desktop form factor with LED indicators for easy monitoring

Specifications

• Ports: 5x 10/100/1000 Mbps RJ45 (4 PoE+)
• Switching capacity: 10 Gbps
• Packet forwarding rate: 7.44 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 9K bytes
• Power supply: External DC 53V/0.81A adapter
• Power consumption: <3W idle, <35W full PoE load
• Operating temperature: 0°C to 45°C
• Operating humidity: 5% to 95% RH (non-condensing)
• Dimensions: 100 mm x 98 mm x 25 mm (W x D x H)
• Weight: 0.25 kg

Tips

To maximize the PoE budget, connect devices that require higher power (up to 30W) to ports 1-4 and use the fifth port for uplink to your router or another switch. Ensure the total power draw of connected PoE devices does not exceed 35W. For best performance, use Cat5e or higher Ethernet cables.
