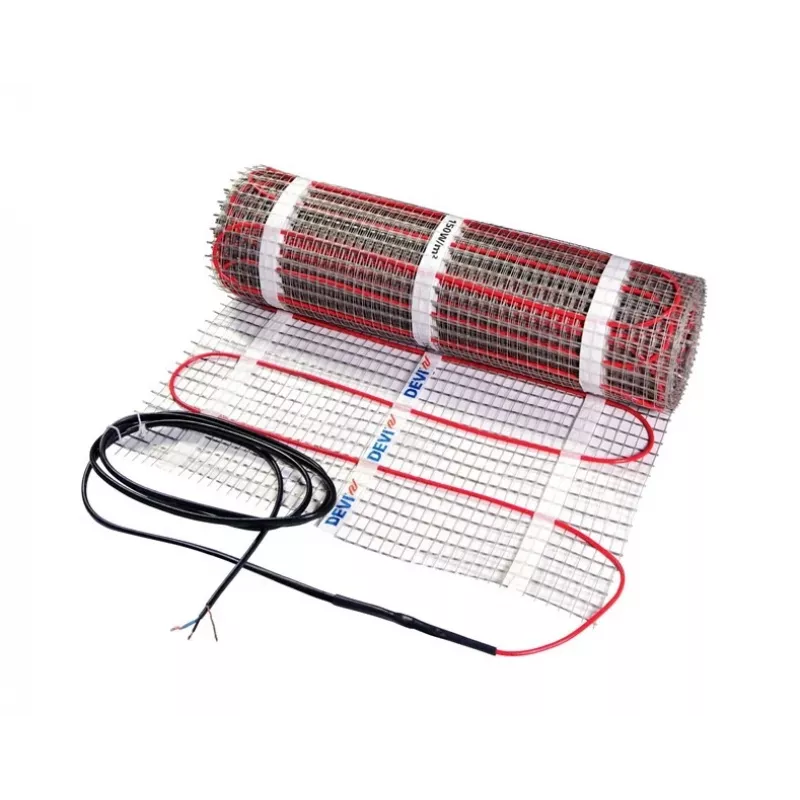

DANFOSS manta térmica DEVICOM 150T

The Danfoss Heating Carpet DEVICOM 150T is a high-quality underfloor heating mat designed for efficient and comfortable heating in various floor constructions. With a total power output of 150 W and a heating area of 1.0 m², this twin conductor cable mat provides a power density of 150 W/m², ensuring rapid and even heat distribution. The mat is IPX7 rated, making it suitable for installation in wet areas such as bathrooms and kitchens. It operates at 230 V AC and includes a 3.0 m cold lead for easy connection. The heating cable has a diameter of 3.5 mm and is insulated with FEP and sheathed with PVC for durability and safety. The mat dimensions are 0.5 m width by 2.0 m length, with a thickness of 3.5 mm. It is CE approved and requires an external thermostat for control (not included). Ideal for installation in tile adhesive, screed, or concrete, this heating carpet is a reliable solution for new builds and renovations.

Advantages

Efficient 150 W power output for quick heating; IPX7 waterproof rating for safe use in wet areas; Twin conductor cable reduces electromagnetic fields; Thin 3.5 mm profile minimizes floor buildup; Suitable for various floor constructions including tile adhesive, screed, and concrete.

Suitable for

• Underfloor heating in bathrooms, kitchens, and living areas
• New construction and renovation projects
• Heating small to medium-sized rooms

Key specifications

• Heating Area: 1.0 m²
• Power Output: 150 W (150 W/m²)
• Operating Voltage: 230 V AC
• Heating Element: Twin Conductor Cable
• Cable Diameter: 3.5 mm
• Cold Lead Length: 3.0 m
• IP Rating: IPX7
• Mat Dimensions: 0.5 m x 2.0 m
• Mat Thickness: 3.5 mm
• Approvals: CE

Recommendations

For optimal performance, pair this heating carpet with a compatible Danfoss thermostat. Ensure proper insulation beneath the mat to maximize energy efficiency. Professional installation is recommended.
