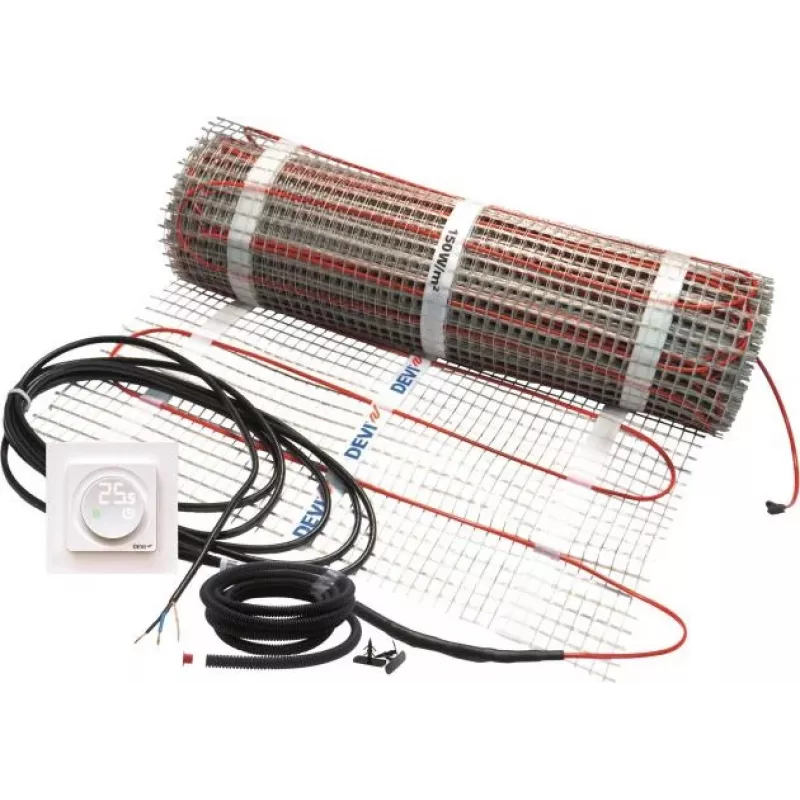

Estera calefactora DANFOSS Devi Dünnbett-Set 150 W/m² 6 m² 0.5 x 12 m (modelo 140F0474)

Electric underfloor heating mat for thin-bed installation beneath tile or natural stone, delivering a consistent 150 W/m² across 6 m² to warm floors efficiently without significantly raising room air temperature.

Advantages

The mat provides even radiant heat with a compact profile, minimising additional floor build-up. Installation is straightforward when embedded in tile adhesive, and the system is compatible with tiled and stone floor finishes. The fixed power density ensures predictable heat output and facilitates accurate load planning for thermostats and electrical circuits. Designed for under-tile use, the mat helps reduce cold spots and contributes to better comfort on tiled surfaces.

Suitable for

• Bathrooms with tile or stone floors
• Kitchens and utility rooms under ceramic tiles
• Small to medium-sized residential rooms requiring localized floor heating
• Renovations where minimal floor height increase is required

Key specifications

• Output power density: 150 W/m²
• Coverage area: 6 m²
• Mat dimensions: 0.5 m x 12 m
• Installation type: thin-bed (embed in tile adhesive or thin-set mortar)
• Compatible floor finishes: ceramic tile, natural stone
• Supply voltage: 230 V AC
• Total power output: 900 W
• Cable type: twin conductor
• Cable diameter: 4 mm
• Cold lead length: 3 m
• IP rating: IPX7
• Conductor insulation: FEP
• Outer sheath material: PVC
• Minimum installation temperature: 5 °C
• Maximum operating temperature (conductor): 90 °C
• Resistance tolerance: +10% / -5%
• Approvals: CE, VDE
• Installation depth: approx. 3-5 mm within tile adhesive/levelling compound
• Thermostat requirement: external thermostat required (sold separately)
• Warranty: 20 years (mat)

Recommendations

For optimal performance and safety, always use a suitable floor thermostat and ensure the mat is installed by a qualified electrician in accordance with local regulations. Verify subfloor preparation and adhesive compatibility before installation.
