Datalogic convertidor de bus de campo ETH IP

Connect your industrial scanners and vision systems to Ethernet/IP networks with the Datalogic FBC9080-N200 Fieldbus Converter. This DIN-rail mountable device bridges serial and Ethernet protocols, enabling seamless integration into PLC-based automation environments.

Overview

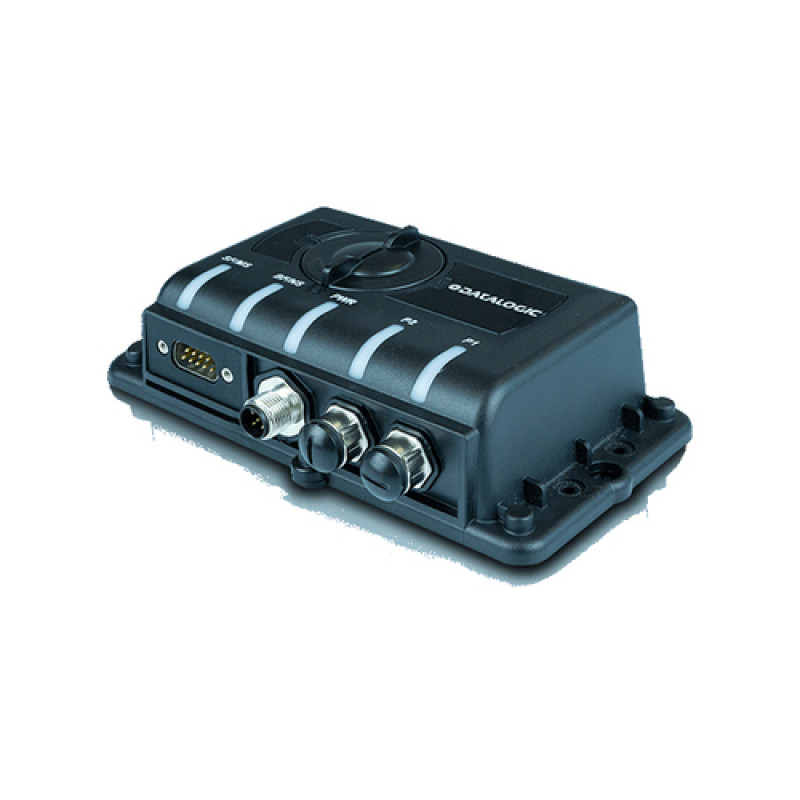

The FBC9080-N200 is a compact, industrial-grade gateway that converts data from Datalogic devices to Ethernet/IP. It features one 10/100 Mbps Ethernet port, two serial ports (RS-232 and configurable RS-232/RS-485/RS-422), and a USB port for configuration. With a wide 10-30 VDC power input and low power consumption, it is suitable for a variety of industrial settings.

What stands out

• Supports Ethernet/IP, TCP/IP, and UDP/IP protocols
• Dual serial ports for flexible device connectivity
• Two digital inputs and two digital outputs for trigger and status signals
• DIN-rail mounting for easy installation in control cabinets
• IP30-rated ABS/PC enclosure for durability
• LED indicators for power, status, Ethernet, and serial activity

Technical details

• Ethernet: 1x 10/100 Mbit/s RJ45
• Serial: 1x RS-232, 1x RS-232/RS-485/RS-422 (configurable)
• USB: 1x USB 2.0 Type B (configuration)
• Power: 10-30 VDC, max 5 W
• Digital I/O: 2 inputs, 2 outputs
• Operating temperature: 0 to 50 °C (32 to 122 °F)
• Storage temperature: -20 to 70 °C (-4 to 158 °F)
• Humidity: 5-90% non-condensing
• Certifications: CE, FCC, UL
• Configuration software: Datalogic Genius

Our verdict

A reliable and versatile fieldbus converter that simplifies Ethernet/IP integration for Datalogic industrial devices, with robust construction and flexible connectivity options.
