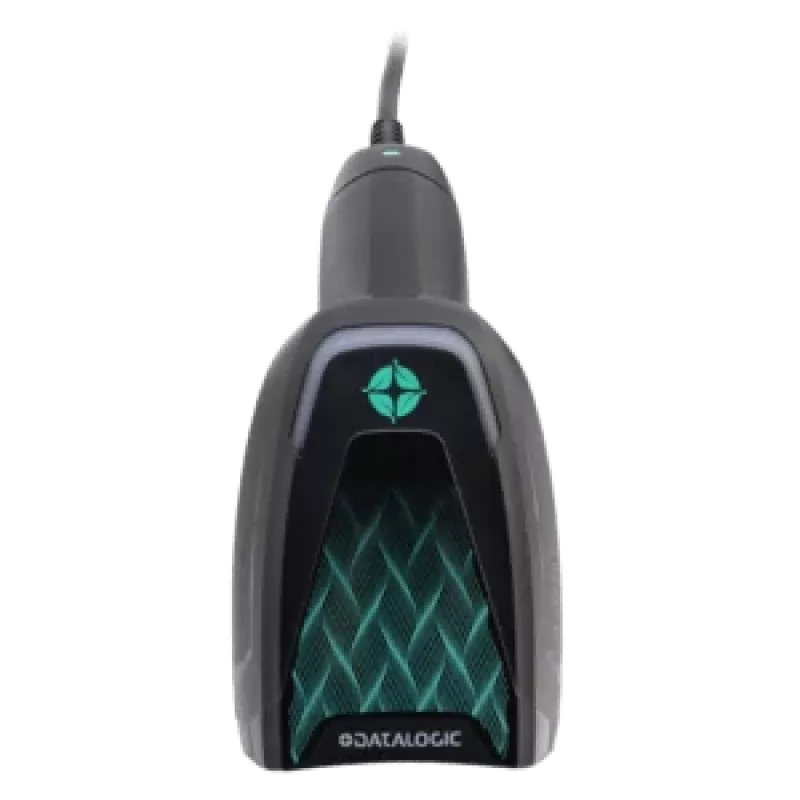

Datalogic Gryphon I GD4620 2D Alta Densidad Single - Escáner de mano - RS-232

Dense, high-density barcodes on small components or labels can slow down scanning operations and lead to errors. The Datalogic Gryphon I GD4620-HD solves this challenge with a high-density 2D imager that reads even the most compact codes quickly and accurately, making it ideal for electronics manufacturing, healthcare, and retail environments where precision is critical.

Who is it for

This scanner is built for professionals who need reliable reading of tiny, dense 1D and 2D barcodes, including those on circuit boards, medical instruments, and small retail items. It suits warehouse staff, lab technicians, and point-of-sale operators who demand speed and accuracy without compromising on durability.

Main features

• High-density 2D area imager captures 1D, 2D, postal codes, and Digimarc barcodes with ease.
• RS-232 connectivity ensures stable, wired communication with legacy systems and POS terminals.
• White LED illumination and 4-dot aimer with center cross provide clear targeting for fast, accurate reads.
• Motion tolerance up to 35 inches per second allows scanning of moving items without stopping.
• Durable design withstands drops from 1.8 m (6 ft) onto concrete and is rated IP52 against dust and moisture.
• Datalogic 'Green Spot' good-read feedback and adjustable beeper confirm successful scans at a glance.
• Supports triggered, automatic, and presentation reading modes for versatile use.
• Includes RS-232 cable for immediate setup out of the box.

Specifications

• Scanner type: 2D area imager (high density)
• Connectivity: RS-232 (cable included)
• Form factor: Handheld
• Decoding capability: 1D, 2D, postal codes, Digimarc
• Illumination: White LED
• Aiming system: 4-dot aimer with center cross
• Motion tolerance: Up to 35 IPS
• Field of view: 42° horizontal x 28° vertical
• Minimum print contrast: 15%
• Drop resistance: 1.8 m (6 ft) to concrete
• IP rating: IP52
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Power consumption (operating): 250 mA @ 5V
• Feedback: Beeper, Datalogic 'Green Spot', good read LED
• Colour: Black
• Reading modes: Triggered, automatic, presentation

Tips

For best results with high-density codes, hold the scanner steady at the optimal distance indicated by the aimer. Use the presentation mode for hands-free scanning of small items on a counter. The RS-232 interface may require configuration to match your host system settings; consult the user manual for details.
