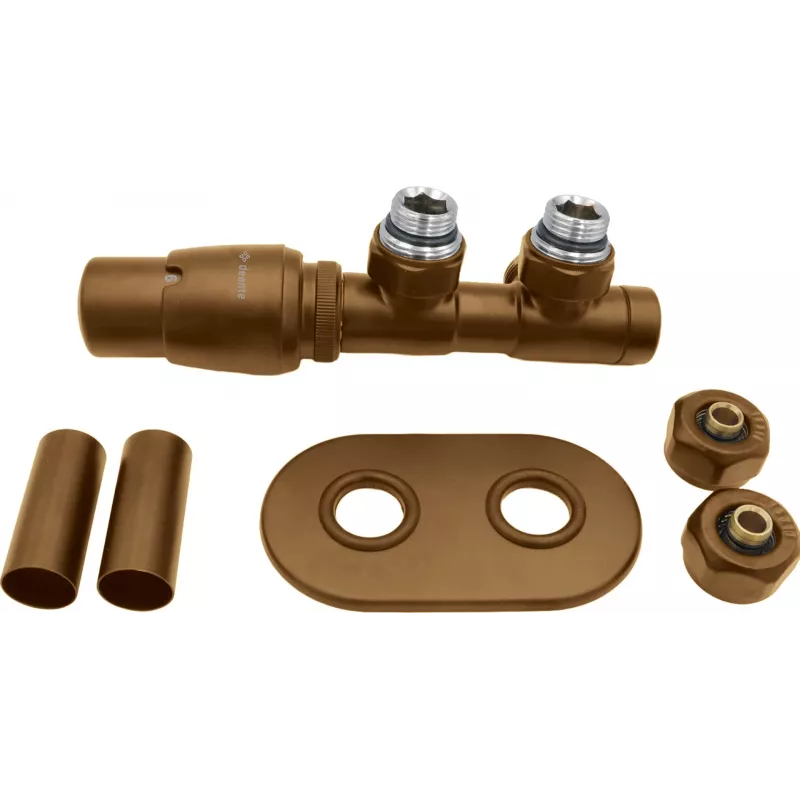

DEANTE Válvula termostática de radiador para radiadores de baño - Izquierda

The DEANTE AGI_CZL1 is a high-quality thermostatic radiator valve (TRV) designed specifically for bathroom radiators and towel warmers. This left-side angled valve allows precise temperature control, enhancing comfort and energy efficiency in your bathroom. Crafted from durable brass with a nickel-plated finish, it offers reliable performance and a sleek silver appearance that complements modern interiors.

Advantages

This valve provides accurate temperature regulation from 6°C to 28°C, including a frost protection setting at approximately 6°C to prevent freezing. Its universal M30 x 1.5 mm connection is compatible with most standard thermostatic heads, allowing easy upgrades or replacements. The angled design simplifies installation in tight spaces, and the EPDM seals ensure long-lasting leak-free operation.

Suitable for

• Bathroom radiators and towel warmers
• Left-side radiator connections
• Heating systems requiring unidirectional flow
• Compatibility with M30x1.5 thermostatic heads

Key specifications

• Valve Type: Thermostatic Radiator Valve (TRV)
• Connection Orientation: Angled (Corner)
• Connection Side: Left
• Radiator Connection Thread: G1/2" Male
• Pipe Connection Thread: G1/2" Female
• Thermostatic Head Connection: M30 x 1.5 mm
• Body Material: Brass
• Finish: Nickel-plated
• Max Operating Temperature: 100°C
• Max Operating Pressure: 10 bar
• Temperature Adjustment Range: 6 - 28°C
• Frost Protection: Yes (at approx. 6°C)
• Flow Direction: Unidirectional
• Nominal Kv Value: 0.8 m³/h
• Certification: CE
• Installation Position: Vertical or Horizontal
• Seal Material: EPDM
• Color: Silver

Recommendations

For optimal performance, pair this valve with a compatible M30x1.5 thermostatic head. Ensure proper installation by a qualified professional to avoid leaks and ensure system efficiency. This valve is designed for left-side connections; verify your radiator's orientation before purchase.
