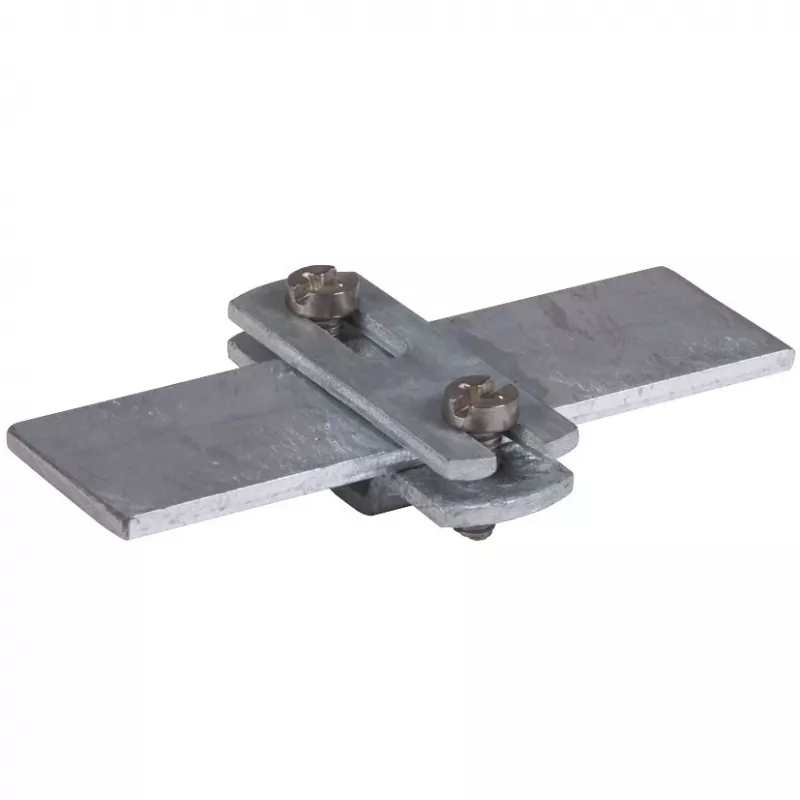

DEHN 284030 Soporte de conductor plano para conductor plano de 30 mm, acero galvanizado en caliente

The DEHN 284030 flat conductor holder is engineered for secure fixation of 30 mm flat conductors in lightning protection and grounding systems. Its hot-dip galvanized steel construction delivers high corrosion resistance, making it suitable for outdoor applications where long-term reliability is essential. The clamp connection principle ensures a firm grip on the conductor, while the M8 clamping screw allows for precise tightening.

Highlights

• Hot-dip galvanized steel for superior corrosion resistance
• Compatible with 30 mm flat conductors
• Clamp connection for secure conductor retention
• Screw mounting with 10.5 mm hole diameter
• Suitable for outdoor use with UV resistance

In daily use

Installers appreciate the straightforward screw mounting and the robust clamp mechanism that holds the flat conductor firmly in place. The galvanized finish blends with metallic surfaces and withstands harsh weather, reducing maintenance needs. The holder is designed to accommodate a single flat conductor, ensuring a clean and organized installation.

Full specifications

• Product type: Flat conductor holder
• Material: Steel
• Surface treatment: Hot-dip galvanized (tZn)
• Suitable conductor type: Flat conductor
• Suitable conductor width: 30 mm
• Mounting type: Screw mounting
• Connection principle: Clamp connection
• Number of conductors: 1
• Clamping screw size: M8
• Mounting hole diameter: 10.5 mm
• Temperature range: -40 to +80 °C
• Colour: Metallic (silver-grey)
• Outdoor suitability: Yes
• UV resistance: Yes
• Standard compliance: DIN EN 62561-1

Final note

For reliable fixation of flat conductors in lightning protection systems, the DEHN 284030 offers a durable and corrosion-resistant solution.
