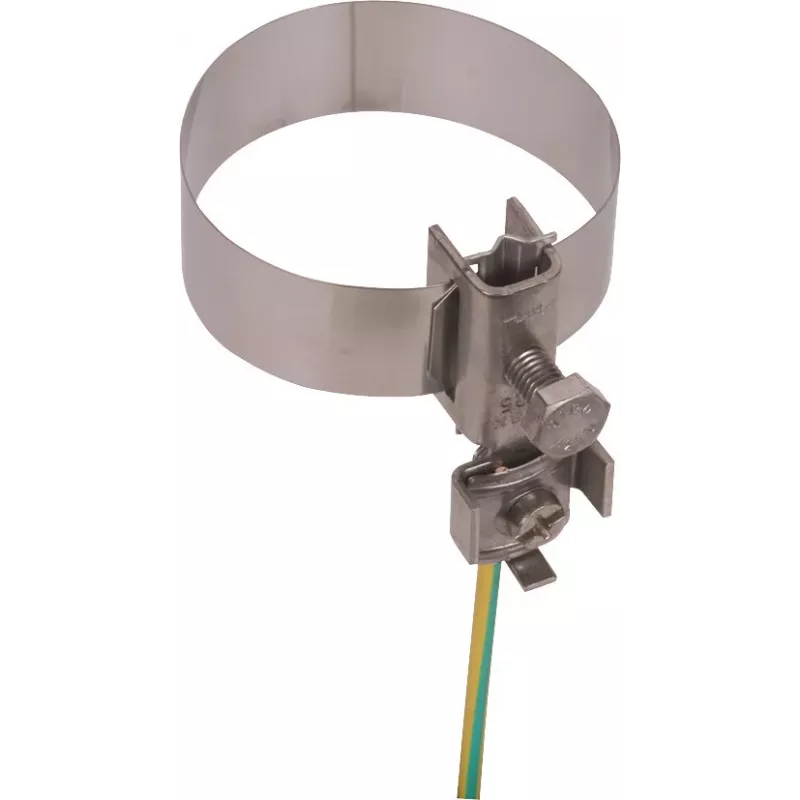

DEHN 540910 abrazadera de tubo para cinta de puesta a tierra para tubos 26,9-60,3 mm, acero galvanizado en caliente, cinta de acero inoxidable

Secure earthing conductors to metal pipes with the DEHN 540910 Earthing Band Pipe Clamp, engineered for pipe diameters from 26.9 to 60.3 mm. The clamp body is hot-dip galvanized steel, while the band is stainless steel, ensuring high corrosion resistance for both indoor and outdoor use.

Overview

This clamp provides a reliable connection for earthing and equipotential bonding. It accommodates round conductors with a diameter of 8–10 mm and flat conductors from 30x3.5 mm to 40x4 mm. The M10 screw terminal ensures a secure and durable connection.

What stands out

• Robust construction: galvanized steel body and stainless steel band for long service life.
• Versatile conductor compatibility: works with both round and flat conductors.
• Wide pipe range: fits pipes from 26.9 mm to 60.3 mm (3/4" to 2").
• Compliant with EN 62561-1 for lightning protection components.

Technical details

• Product type: Earthing band pipe clamp
• Pipe diameter range: 26.9 - 60.3 mm
• Round conductor diameter: 8 - 10 mm
• Flat conductor dimensions: 30x3.5 mm to 40x4 mm
• Clamp body material: Steel, hot-dip galvanized
• Band material: Stainless steel
• Connection terminal: M10 screw
• Standard compliance: EN 62561-1
• Corrosion resistance: High
• Installation type: Screw-on band clamp
• Usage environment: Outdoor and indoor

Our verdict

A dependable earthing clamp for professionals who need a corrosion-resistant, versatile connection for pipes up to 2 inches. Its compliance with EN 62561-1 ensures it meets rigorous safety standards.
