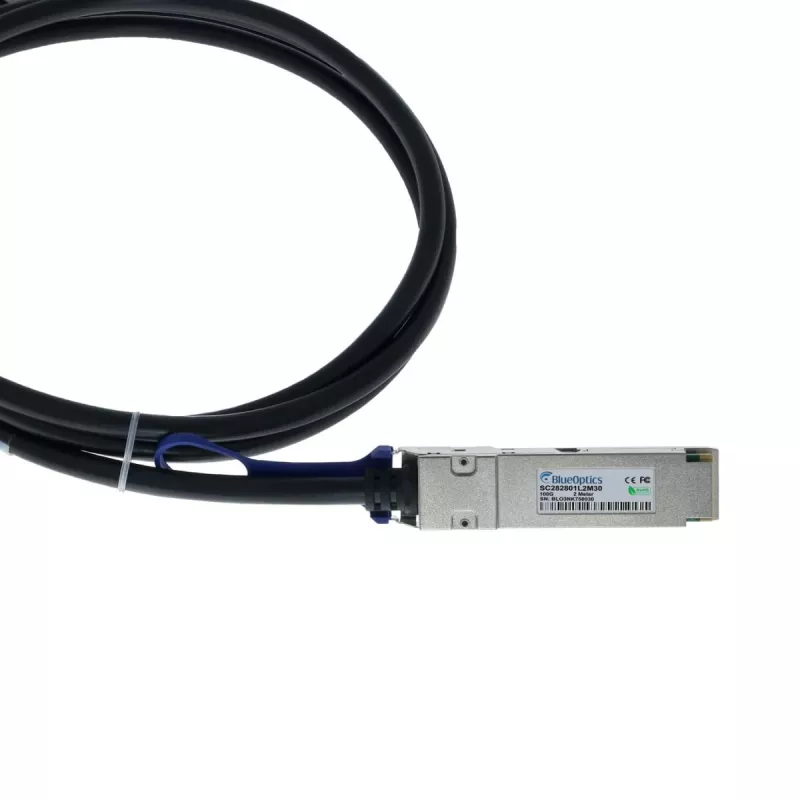

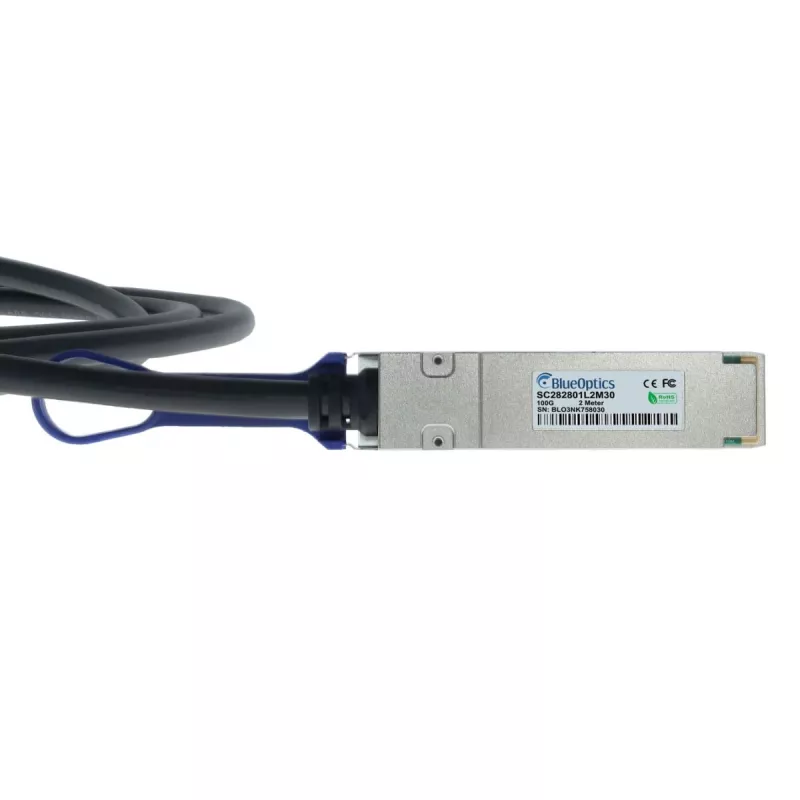

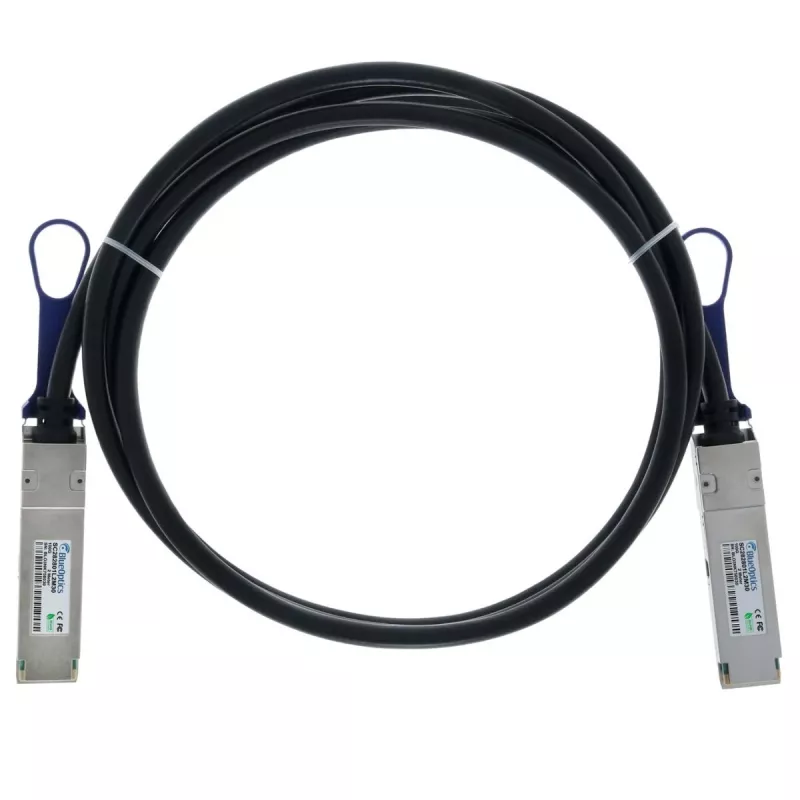

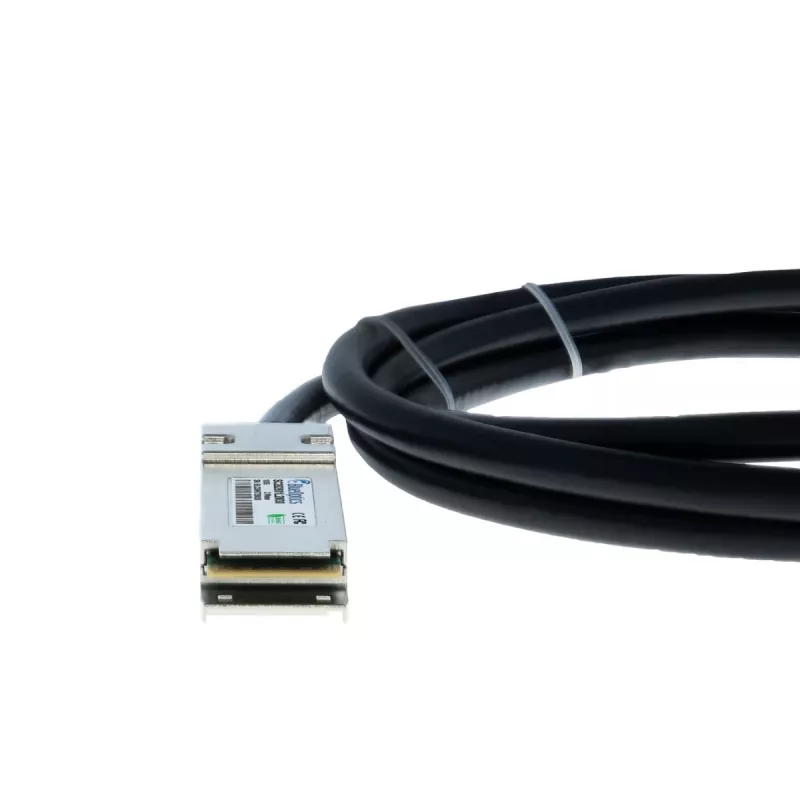

BlueOptics Ruckus 100G-Q28-Q28-C-00501 Compatible BlueLAN DAC QSFP28 Cable Twinax Cobre Pasivo 0,5 m (1,64 ft) 30 AWG Negro

The BlueOptics Ruckus 100G-Q28-Q28-C-00501 compatible BlueLAN DAC QSFP28 cable is a high-performance direct attach copper (DAC) solution designed for 100 Gigabit Ethernet (100GBASE-CR4) and InfiniBand EDR/HDR applications. This passive twinax copper cable delivers reliable, low-latency connectivity for data center interconnects, high-performance computing (HPC), and enterprise networking environments.

Advantages

This DAC cable offers a cost-effective and energy-efficient alternative to optical transceivers for short-range connections. With a length of 0.5 meters (1.64 ft) and 30 AWG construction, it provides excellent signal integrity while consuming less than 0.5W of power. The passive design ensures zero additional power consumption, making it ideal for high-density deployments.

Suitable for

• Data center top-of-rack (ToR) to server connections
• High-performance computing (HPC) clusters
• Enterprise network switches and routers with QSFP28 ports
• InfiniBand EDR/HDR environments

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Data Rate: 100 Gbps (100GBASE-CR4)
• Connector Type: QSFP28 to QSFP28
• Cable Length: 0.5 m (1.64 ft)
• Cable Type: Passive Twinax Copper
• AWG: 30 AWG
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Compliance: SFF-8665, RoHS, CE, FCC
• Hot Swappable: Yes
• Jacket Material: PVC
• Colour: Black

Recommendations

This cable is compatible with Ruckus 100G-Q28-Q28-C-00501 and other QSFP28 compliant devices. For optimal performance, ensure your equipment supports 100GBASE-CR4 or InfiniBand EDR/HDR standards. The 0.5m length is ideal for short-reach interconnects within a rack.
