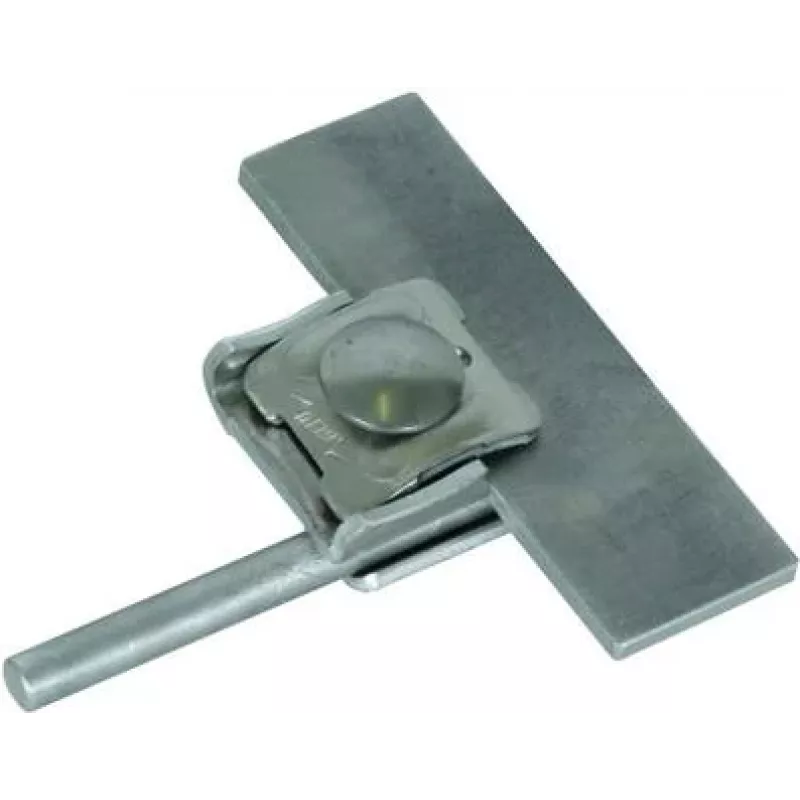

DEHN abrazadera de engatillado 365031 para Rd 8-10 mm, acero inoxidable V2A, 100 kA pararrayos

With an impulse current carrying capacity of 100 kA (10/350 µs), the DEHN Seam Clamp 365031 provides a robust connection point for lightning protection and earthing systems on standing seam roofs.

Overview

This seam clamp is engineered for secure attachment of round conductors with diameters from 8 to 10 mm to standing seam profiles. Manufactured from stainless steel (V2A / 1.4301), it ensures long-term corrosion resistance and is suitable for use with copper, zinc, titanium zinc, stainless steel, and aluminium roof materials. The clamp meets the requirements of EN 62561-1 and is designed for exterior installation, offering UV resistance and reliable performance across a temperature range of -40°C to +80°C.

What stands out

• High impulse current capacity: 100 kA (10/350 µs)
• Corrosion-resistant stainless steel V2A construction
• Compatible with multiple roof materials
• Secure screw clamp connection with M8 thread
• Wide operating temperature range

Technical details

• Product type: Seam clamp
• Application: Lightning protection, earthing, equipotential bonding
• Material: Stainless steel V2A (1.4301)
• Conductor type: Round conductor
• Conductor diameter: Rd 8-10 mm
• Mounting type: For standing seam roofs
• Impulse current carrying capacity (10/350 µs): 100 kA
• Standard compliance: EN 62561-1
• Connection method: Screw clamp (M8)
• Number of conductors: 1
• Installation location: Exterior
• UV resistance: Yes
• Temperature range: -40°C to +80°C

Our verdict

The DEHN 365031 seam clamp delivers high-performance lightning protection with durable stainless steel construction, making it a reliable choice for standing seam roof installations.
