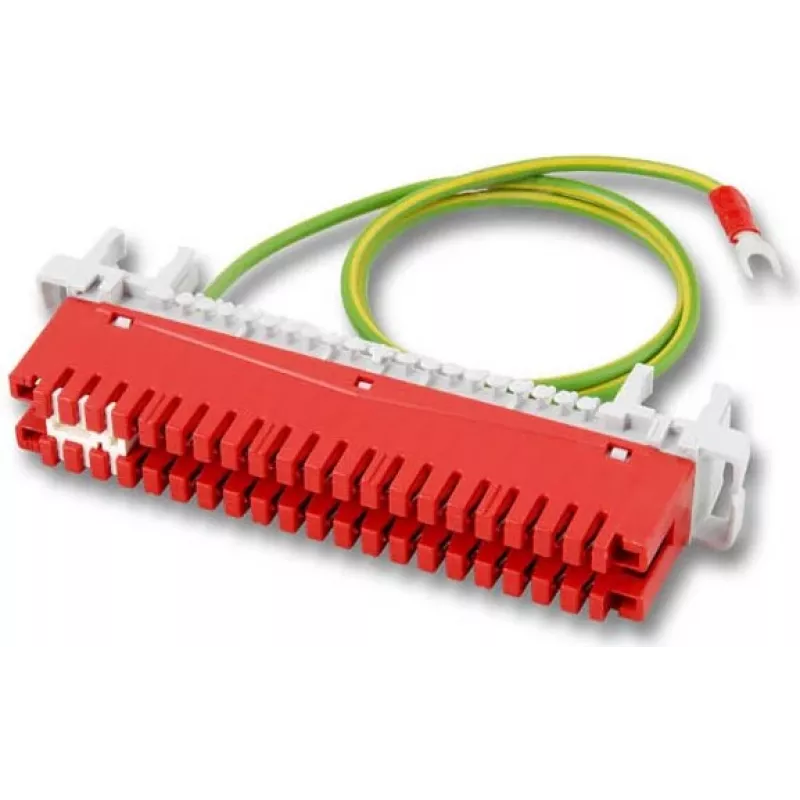

EFB Barra de puesta a tierra LSA 2/34, 34 polos, para montaje en poste redondo

The EFB LSA Grounding Bar 2/34 is a professional-grade earthing strip designed for reliable grounding in telecommunication distribution frames, data network cabinets, and patch panels. With 34 poles and LSA-Plus/Krone compatible IDC technology, it ensures secure connections for solid wires with diameters from 0.4 to 0.8 mm. The nickel-plated brass contacts and thermoplastic insulation provide durability and long-term performance.

Advantages

This grounding bar offers easy installation on round bars, robust construction, and compatibility with standard LSA insertion tools. Its single-row design saves space while providing central earthing for multiple connections.

Suitable for

• Telecommunication distribution frames
• Data network cabinets
• Patch panels
• Central earthing and grounding applications

Key specifications

• Product Type: LSA Grounding Bar
• Number of Poles: 34
• Mounting Type: Round Bar Mounting
• Connection Technology: Insulation Displacement Connection (IDC)
• Connection Standard: LSA-Plus / Krone compatible
• Function: Central Earthing / Grounding
• Conductor Compatibility: Solid Wires
• Recommended Conductor Diameter: 0.4 - 0.8 mm
• Contact Material: Nickel-plated Brass
• Insulation Material: Thermoplastic
• Design: Single-row grounding strip
• Series/Configuration: 2/34

Recommendations

For optimal performance, use with standard LSA insertion tools and ensure proper cable preparation. Suitable for indoor use in controlled environments.
