DEHN DG M TN 275 952200 DEHNguard M Descargador de sobretensiones, 230V, Rojo

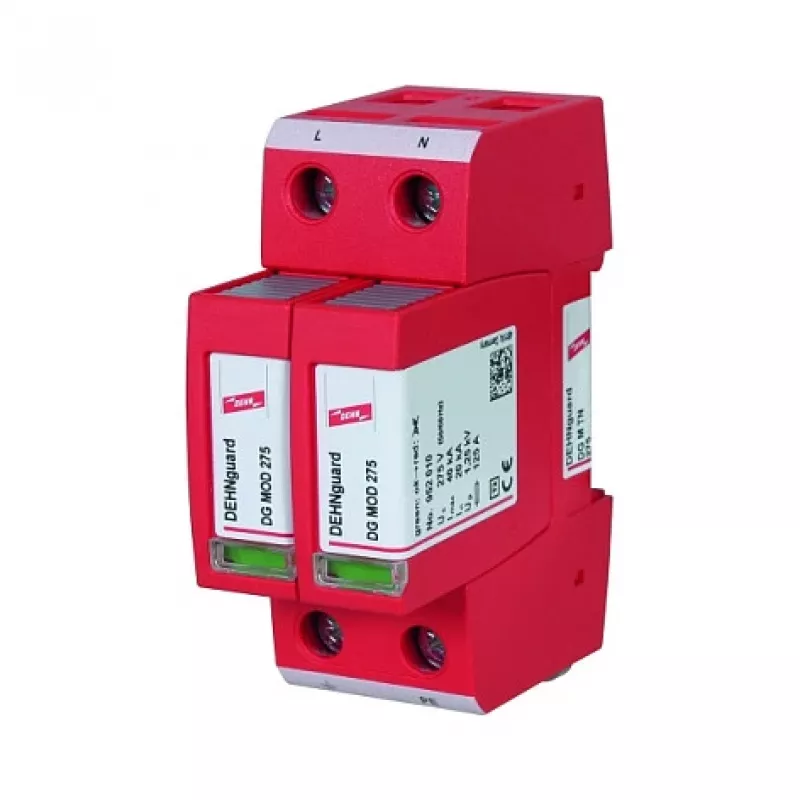

The DEHN DG M TN 275 is a modular surge arrester designed for single-phase TN systems (2+0 configuration). It is a ready-to-connect complete unit consisting of a base part and plugged-in protection modules, featuring Thermo-Dynamic-Control monitoring for high device safety.

Key features

• Modular surge arrester for single-phase TN systems (2+0 configuration)
• Ready-to-connect complete unit with base part and plugged-in protection modules
• Energetically coordinated within the Red/Line product family
• High discharge capacity through powerful zinc oxide varistors/spark gaps
• High device safety through Thermo-Dynamic-Control arrester monitoring
• Simple, tool-free protection module replacement via module locking system with module release button
• Vibration and shock tested according to EN 60068-2

Specifications

• Brand: DEHN
• MPN: 952200
• Product colour: Red
• AC plug type: Terminal
• Nominal input voltage: 230 V
• AC input frequency: 50 - 60 Hz
• Peak current normal mode: 20000 A
• Material: Thermoplast
• Response time: 0.000025 ms
• Weight: 229 g
• Width: 36 mm
• Depth: 73 mm
• Height: 90 mm
• Operating temperature: -40 - 80 °C
• Certification: CE, VDE, UL
• Number of products included: 1 piece(s)
