EMITER Cuadro conectado AC hermético IP65 con descargador de sobretensiones Dehn Tipo 2, 20A 1 fase

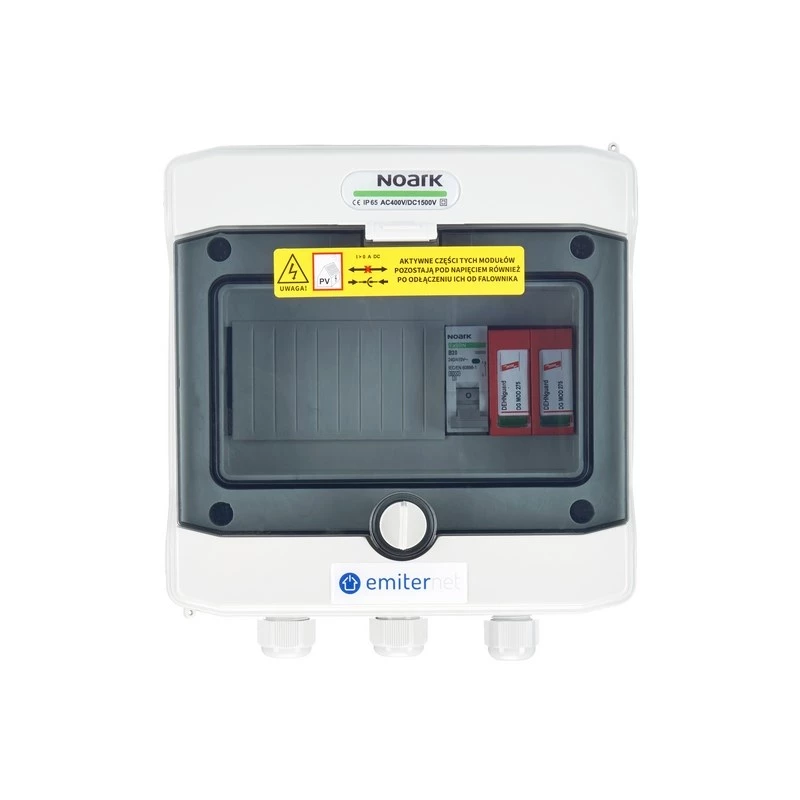

The EMITER EM-71_AC is a robust switchgear enclosure with integrated AC surge protection, designed for outdoor and harsh indoor environments. Featuring a hermetic IP65 seal and a Dehn Type 2 surge arrester, it ensures reliable power distribution and protection for single-phase systems up to 20A.

Advantages

Integrated Type 2 surge protection from Dehn safeguards connected equipment against transient overvoltages. The IP65-rated hermetic enclosure provides dust-tight and water-jet protection, making it ideal for demanding conditions. Surface-mountable design with high-impact thermoplastic construction ensures durability and long service life.

Suitable for

• Outdoor power distribution in industrial, commercial, and residential applications
• Protection of sensitive electronic equipment in harsh environments
• Single-phase AC systems requiring surge protection and distribution

Key specifications

• Product Type: Electrical Distribution Box / Switchgear
• Enclosure Protection Rating: IP65
• Rated Current: 20 A
• Number of Phases: Single-Phase (1-F)
• Voltage Type: AC
• Integrated Surge Protection: Yes, Type 2 SPD
• Surge Arrester Manufacturer: Dehn
• Enclosure Material: High-impact resistant thermoplastic
• Mounting Type: Surface Mount (Wall Mount)
• Rated Voltage: 230V AC
• Frequency: 50/60 Hz
• Operating Temperature Range: -25°C to +40°C
• Terminal Capacity: Up to 16 mm²
• Standards Compliance: IEC 61439-3, IEC 61643-11
• Hermetic Seal: Yes
• Number of Modules (DIN Rail): Up to 4 modules
• Enclosure Color: Light Grey (RAL 7035)

Recommendations

For optimal protection, ensure proper installation by a qualified electrician. Verify system compatibility with the 20A rating and single-phase configuration. Suitable for outdoor use but avoid direct submersion.
