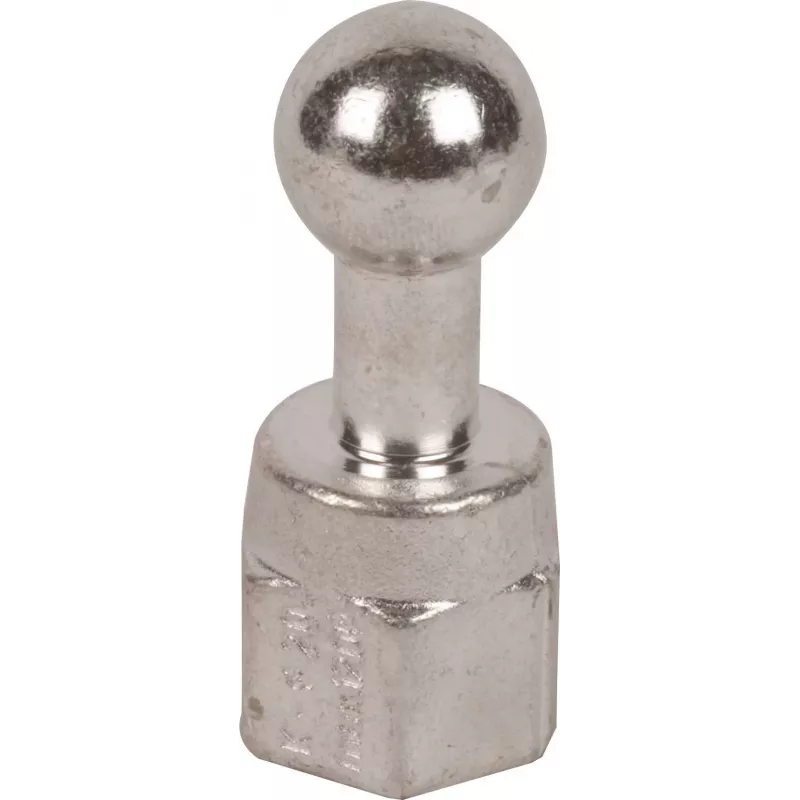

DEHN KFP 20 M12 punto fijo esférico recto con rosca interior 754200

For lightning protection installers and maintenance crews working on exposed roof structures, the DEHN KFP 20 M12 ball fixed point provides a reliable connection point for down conductors and test leads. Its straight design with M12 internal thread allows secure attachment to structural elements, while the 20 mm ball diameter ensures compatibility with standard test clamps.

Key specifications

• Product type: Ball fixed point
• Design: Straight
• Connection thread: M12 internal thread
• Ball diameter: 20 mm
• Material: Stainless steel (V2A / 1.4301)
• Application: Lightning protection, earthing, equipotential bonding
• Conductor compatibility: Round conductors (Rd 8-10 mm), flat conductors
• Mounting type: Surface mounting
• Standard compliance: DIN EN 62561-1
• Corrosion resistance: High
• Installation environment: Outdoor / exposed
• Function: Test and connection point for lightning protection systems
• Thread standard: Metric
• Manufacturer series: KFP
• Colour: Metallic

Why choose it

Stainless steel construction ensures long-term durability in harsh weather conditions, and the KFP series is engineered for consistent performance in lightning protection systems. The straight configuration simplifies installation on flat surfaces, while the M12 internal thread provides a secure connection for test equipment.

Ideal use cases

• Connecting down conductors to test joints in lightning protection systems
• Providing a fixed point for measuring earth resistance
• Equipotential bonding in outdoor installations
• Use in industrial and commercial buildings with exposed roof areas

Good to know

The KFP 20 M12 is designed for surface mounting and is suitable for both round and flat conductors, making it a versatile choice for new installations and retrofits.
