DEHN + SÖHNE Pica de toma de tierra con espiral perforadora, 1000 mm, mango desmontable, acero galvanizado en caliente, rosca M10 644000

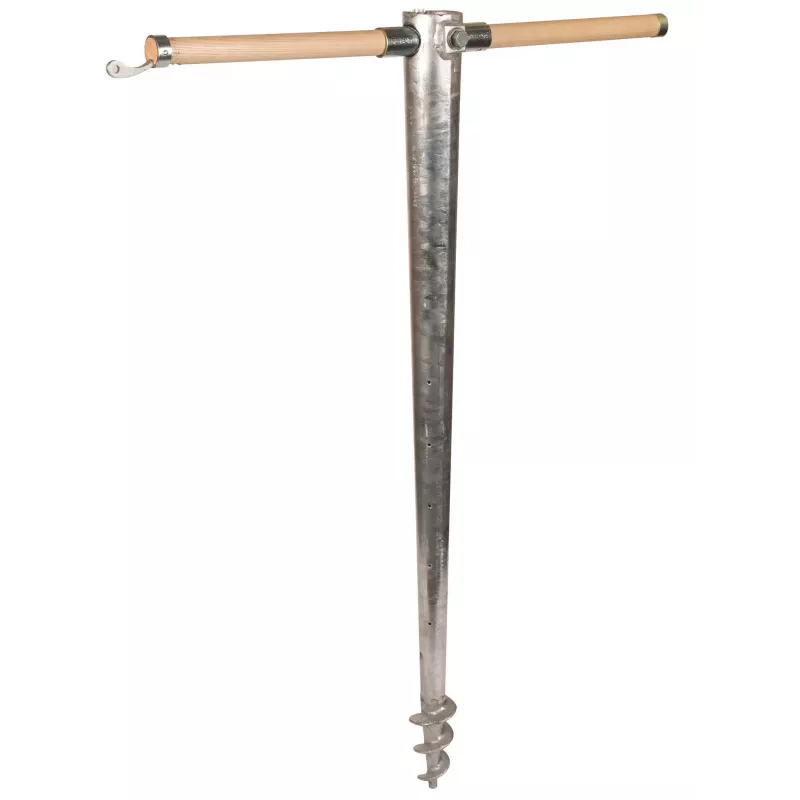

Hot-dip galvanized steel earthing rod with integrated drilling spiral and detachable handle, 1000 mm long and 25 mm in diameter, for screw-in installation in lightning protection and earthing systems.

Overview

The DEHN + SÖHNE 644000 earthing rod is designed for reliable grounding in challenging soil conditions. Its drilling spiral (auger) facilitates screw-in installation, while the detachable handle allows for efficient driving. The rod is made from hot-dip galvanized steel (St/tZn), providing long-term corrosion resistance. The top features an M10 internal thread for connecting additional rods or conductors. It complies with DIN EN 62561-2 (VDE 0185-561-2).

What stands out

• Integrated drilling spiral for easier penetration
• Detachable handle for convenient installation
• Hot-dip galvanized steel for durability
• M10 internal thread for extension
• 1000 mm length, 25 mm diameter

Technical details

• Product Type: Earthing Rod / Grounding Rod
• Design Feature: With drilling spiral (auger)
• Handle Type: Detachable handle
• Material: Hot-dip galvanized steel (St/tZn)
• Overall Length: 1000 mm
• Rod Diameter: 25 mm
• Top Connection Thread: M10 internal thread
• Corrosion Protection: Hot-dip galvanization
• Installation Method: Screw-in (facilitated)
• Application Area: Lightning protection and earthing systems
• Standard Compliance: DIN EN 62561-2 (VDE 0185-561-2)
• Manufacturer Part Number: 644 000

Our verdict

A robust and practical earthing rod with a drilling spiral for easier installation, ideal for professional lightning protection and earthing applications.
