DELOCK 19" Keystone Patch Panel 24 puertos en ángulo con alivio de tracción, 1U, negro, 482,6×125,5×44,2 mm

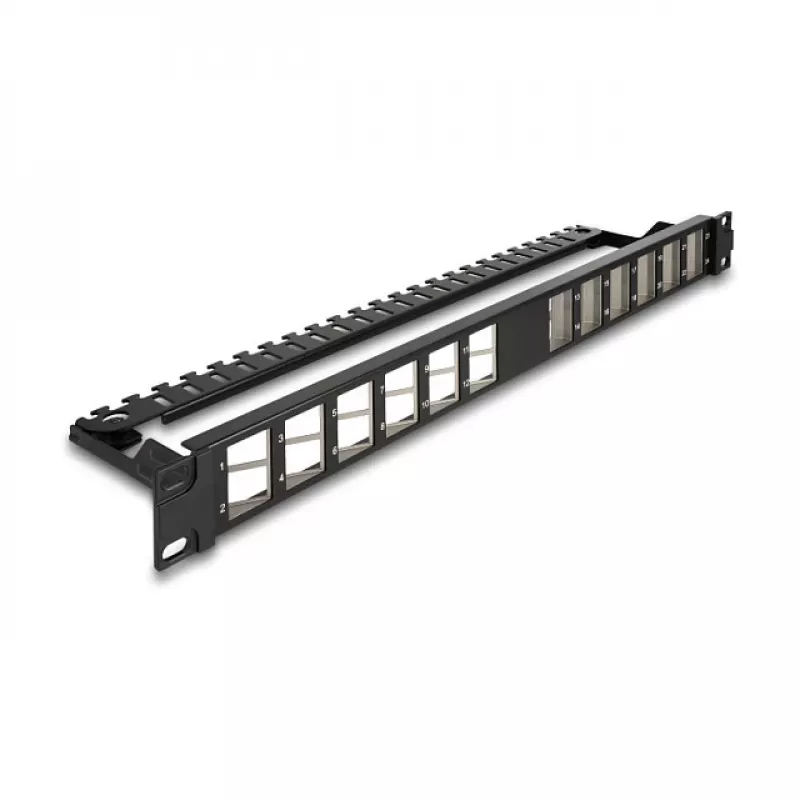

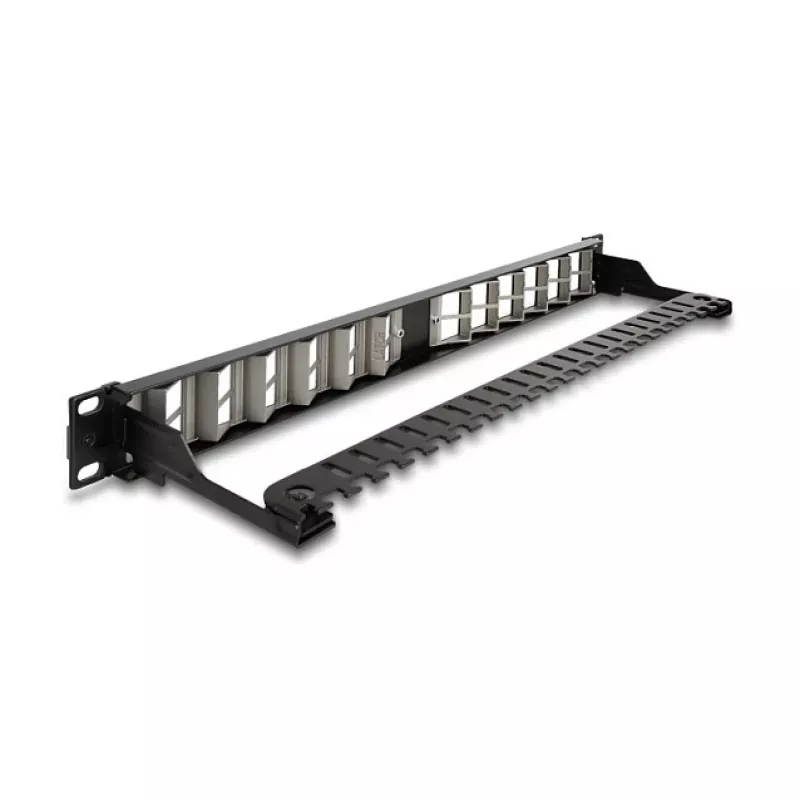

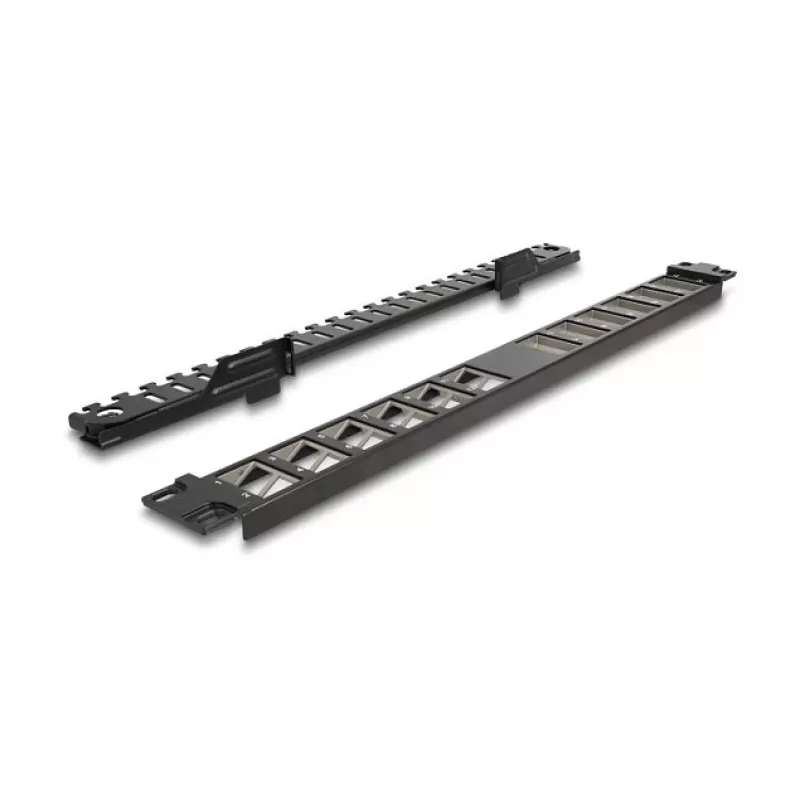

DELOCK 19" Keystone Patch Panel 24-port angled with strain relief, 1U, black, 482.6×125.5×44.2 mm is a rack-mountable keystone panel designed for installation in 19" cabinets and server racks. The panel accepts up to 24 snap-in keystone modules arranged with angled ports, providing a compact 1U rack height and a black finish. The back of the panel includes integrated points for cable ties to secure cabling and improve routing. Note that the panel accepts keystone modules with a maximum width of 17.8 mm due to its narrow design.

Advantages

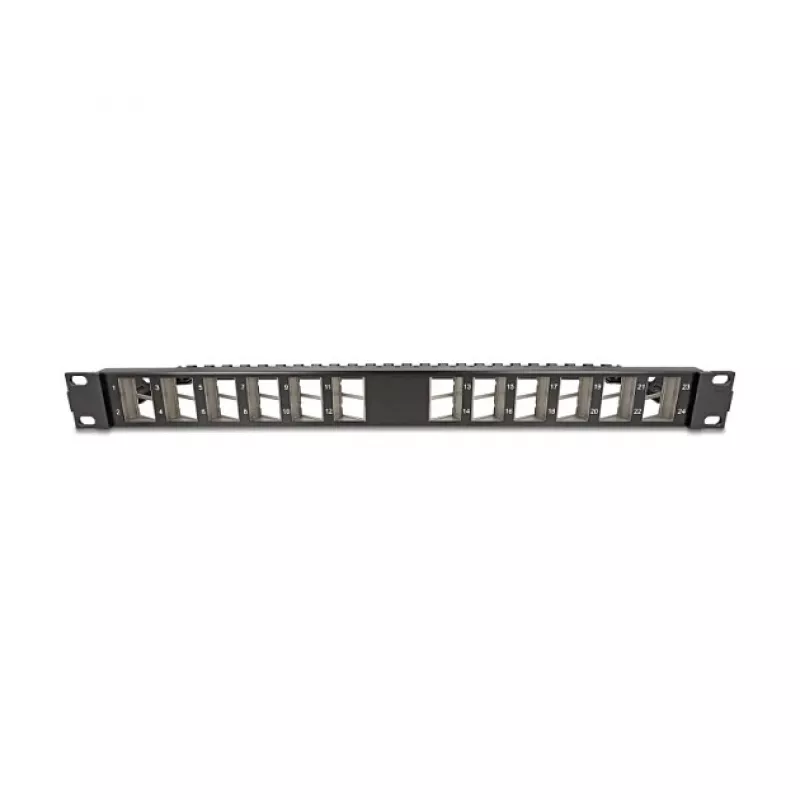

The angled keystone openings are arranged so modules can be mounted angled to the right on one side and angled to the left on the other side, which helps reduce cable bend stress and supports neater front-facing cable routing. Integrated strain relief and cable tie points on the rear of the panel allow for reliable cable fixing and orderly management inside racks or wiring closets. Standard 19" and 1U dimensions ensure compatibility with common rack systems and make installation straightforward using snap-in keystone jacks.

Suitable for

• Network patching in server rooms and data cabinets
• Telecommunications and structured cabling in office environments
• Audio/video signal distribution racks requiring keystone modules
• Closets or cabinets where compact 1U cable management is needed

Key specifications

• Rack size: 19-inch compatible
• Ports: 24 angled keystone ports
• Height: 1U
• Finish: black
• Panel dimensions: 482.6 × 125.5 × 44.2 mm
• Keystone module maximum width: 17.8 mm
• Rear cable fixing: cable tie points for strain relief

How to use

Mount the patch panel into a standard 19" rack or cabinet using the provided rack-mount holes at 1U height. Snap in compatible keystone jacks (maximum 17.8 mm width) into each angled port, orienting modules as required for left or right angled installation. Route patch cables to the front-facing angled ports to minimise bend radius and secure cables at the rear using cable ties through the integrated fixing points for strain relief and tidy routing. Ensure all modules are fully clicked into place before connecting patch cords.

Recommendations

Use keystone jacks not exceeding 17.8 mm width and select shielded or unshielded modules consistent with your cabling standards. When installing in high-density racks, maintain cable management practices by grouping and securing cables at the rear to avoid strain on connections. For best performance, avoid sharp bends at the port entry and keep patch cord lengths appropriate for your network design.
