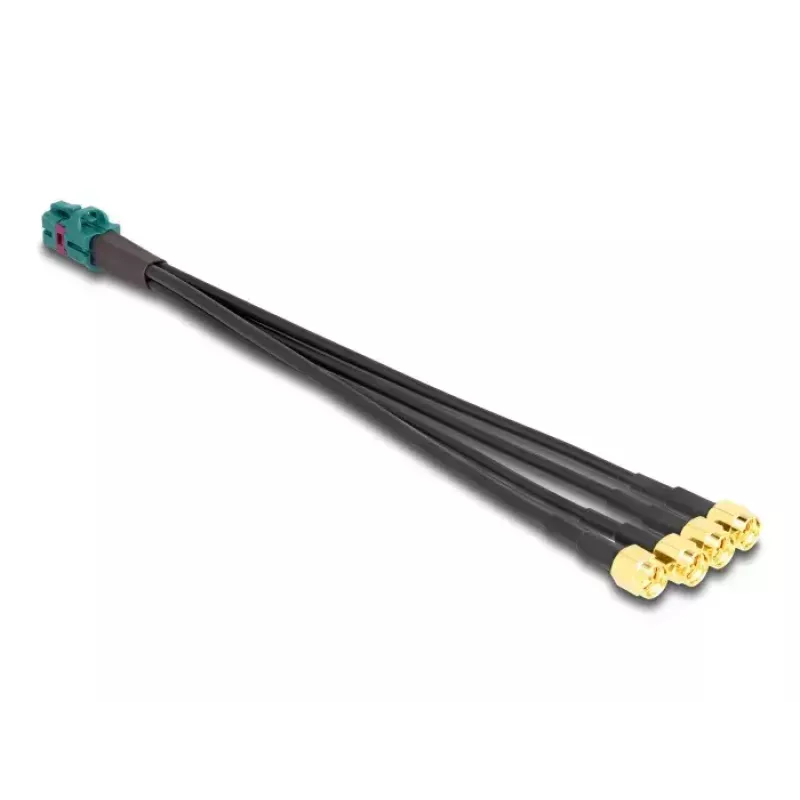

DeLOCK 90142 cable coaxial 0,2 m Mini FAKRA Z 4 x SMA negro

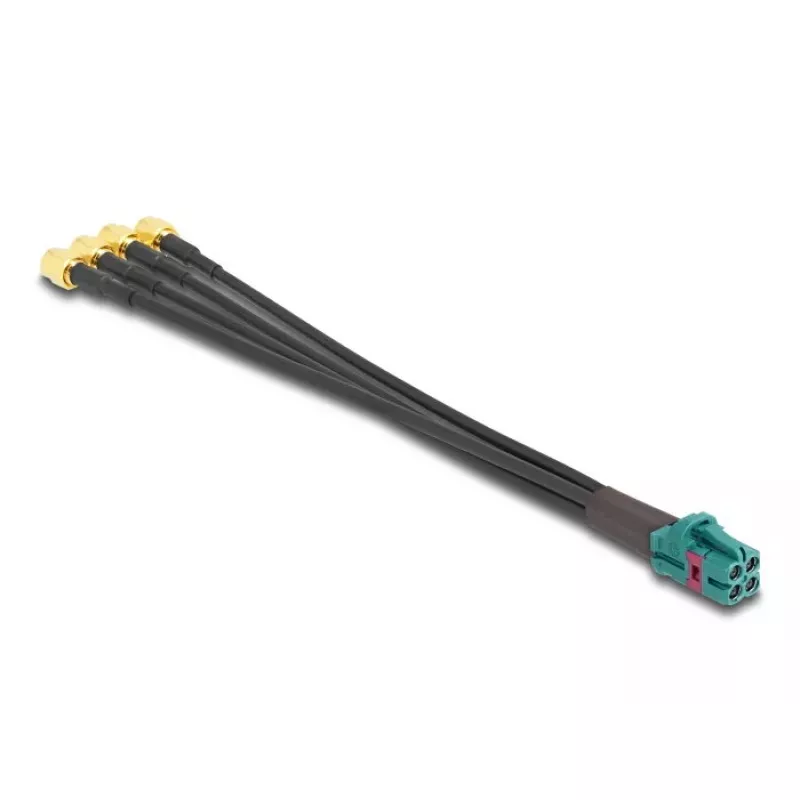

The DeLOCK 90142 is a 0.2 m coaxial cable with a Mini FAKRA Z connector on one end and four SMA connectors on the other. It is intended for reliable signal transmission between electronic components in vehicles and other electronic systems, where a short, organized connection is required. The compact design helps reduce cable clutter and fits into confined installation spaces.

Advantages

The Mini FAKRA Z connector offers space saving of up to 80% compared to a standard FAKRA connector while maintaining high data-rate capability. The cable’s short 0.2 m length and multiple SMA outputs provide a tidy, space-efficient solution for multi-connector setups. The combination of Mini FAKRA and SMA connectors ensures compatibility with common RF and telemetry components.

Suitable for

Key specifications

How to use

Connect the Mini FAKRA Z end to the corresponding FAKRA-compatible port on the vehicle module or electronic device and attach the four SMA connectors to the respective SMA sockets on receivers, amplifiers, or test equipment. Ensure connectors are aligned and seated without excessive force. Route the cable to avoid sharp bends and secure it to prevent mechanical strain at the connector interfaces.

Recommendations

Use this coaxial cable in short-link applications where space is limited. Verify connector types on both devices before installation and avoid exposing the cable to fluids, extreme temperatures, or mechanical stress. For best performance, keep cable runs as short as practical and prevent repeated mating cycles on the same connector to reduce wear.
