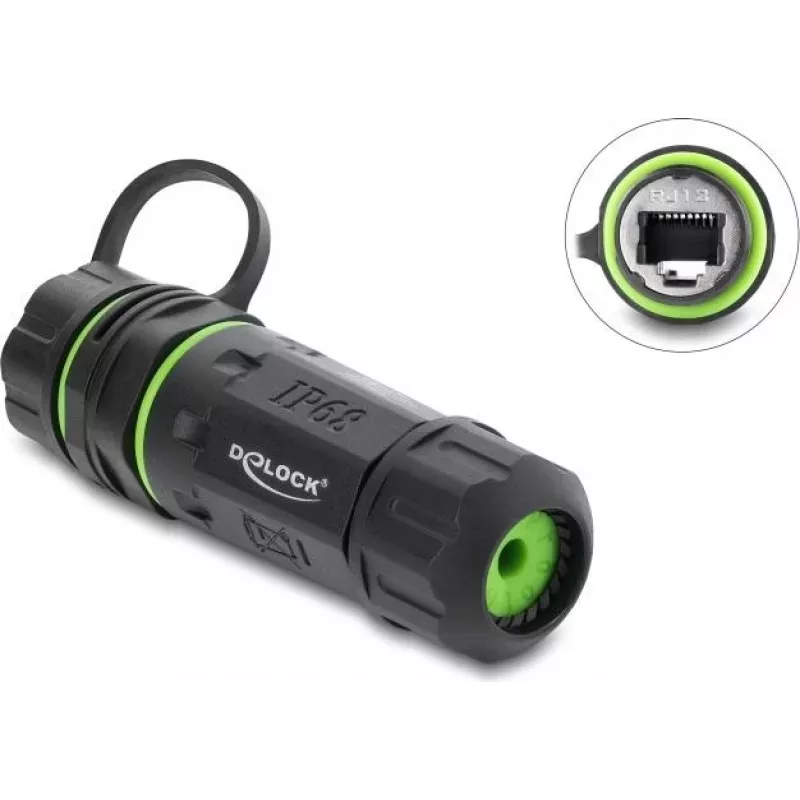

Delock Acoplador RJ12 conector hembra a conector hembra con rosca M20 x 1,5 mm y tapa protectora, IP68 resistente al polvo y al agua (87176)

The Delock RJ12 Female to RJ12 Female Cable Connector is a robust and reliable solution for extending or connecting RJ12 cables in demanding environments. Designed with an M20 x 1.5 mm thread and a sealing cap, this connector provides IP68 dustproof and waterproof protection, making it ideal for industrial, outdoor, and harsh applications. The connector features two RJ12 female ports (6P6C) with gold-plated contacts for secure and corrosion-resistant connections. The housing is made of PA66 (Polyamide 66) and is black in color. It supports operating temperatures from -20 °C to 85 °C.

Advantages

IP68 rated for dust and water ingress protection, ensuring reliable performance in harsh environments. Gold-plated contacts provide excellent conductivity and corrosion resistance. The M20 x 1.5 mm thread allows for secure panel mounting. Includes a sealing cap for added protection when not in use.

Suitable for

• Industrial automation and control systems
• Outdoor telecommunications and networking
• Harsh environment installations requiring waterproof connections
• Extending RJ12 cable runs in commercial or industrial settings

Key specifications

• Connector 1: RJ12 Female
• Connector 2: RJ12 Female
• Connector gender: Female-Female
• Connector standard: RJ12 (6P6C)
• IP rating: IP68
• Thread size: M20 x 1.5 mm
• Housing material: PA66 (Polyamide 66)
• Contact plating: Gold-plated
• Color: Black
• Operating temperature: -20 °C to 85 °C
• Number of positions: 6
• Number of conductors: 6

Recommendations

For optimal performance, use with high-quality RJ12 cables and ensure proper sealing of the connector in outdoor installations. The sealing cap should be used when the connector is not in use to maintain IP68 protection.
