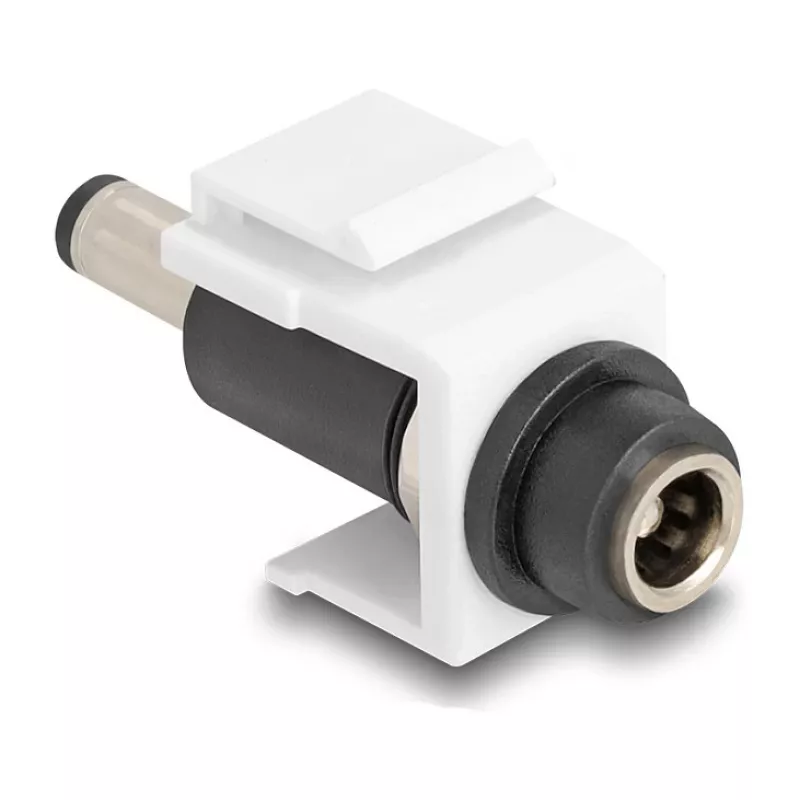

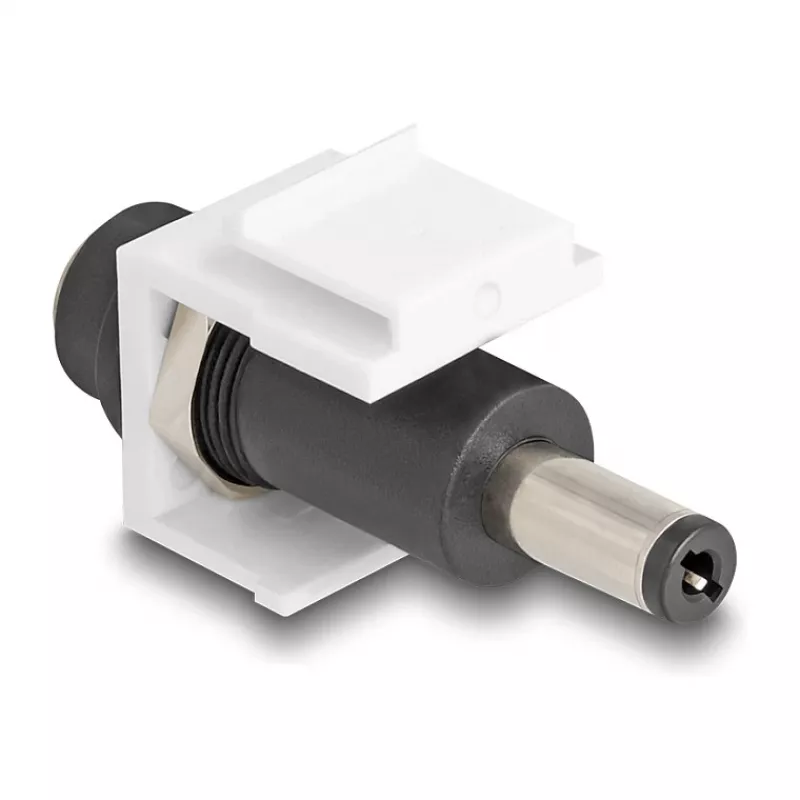

Módulo Keystone DeLOCK DC 5,5 x 2,1 mm conector hembra a DC 5,5 x 2,5 mm conector macho blanco

This DeLOCK Keystone Module DC 5.5 x 2.1 mm female to DC 5.5 x 2.5 mm male in white is a flat bulkhead connector designed for snap-in installation in keystone panels, face plates or surface-mount boxes to provide a power feed for devices or housings. Its standardised keystone dimensions allow easy mounting and integration into existing patch panels or enclosures.

Advantages

The module offers a compact, standardized keystone format for simple snap-in mounting and quick installation. It provides a female DC 5.5 x 2.1 mm jack on one side and a male DC 5.5 x 2.5 mm plug on the other, enabling cable routing through a panel while keeping a low-profile white housing. The flat construction and defined dimensions make it compatible with common keystone cutouts.

Suitable for

• Providing panel-mounted power connections for small electronic devices
• Integrating a DC power pass-through in keystone patch panels or faceplates
• Retrofit or custom enclosures requiring a low-profile DC bulkhead

Key specifications

• Connector 1: DC 5.5 x 2.1 mm (female)
• Connector 2: DC 5.5 x 2.5 mm (male)
• Colour: White
• Dimensions (W × D × H): 16.2 × 42.3 × 21.8 mm
• Brand: DELOCK, MPN: 84175, EAN: 4043619841752

How to use

Insert the keystone module into a compatible keystone cutout (e.g. patch panel, face plate or surface-mount box) until it snaps into place. Connect the external power cable to the male DC 5.5 x 2.5 mm plug and connect the device requiring power to the female DC 5.5 x 2.1 mm jack. Ensure secure seating of connectors and proper cable routing to avoid strain on the module.

Recommendations

To ensure correct operation, verify that the voltage, current and polarity of the power supply match the requirements of the connected device before use.
