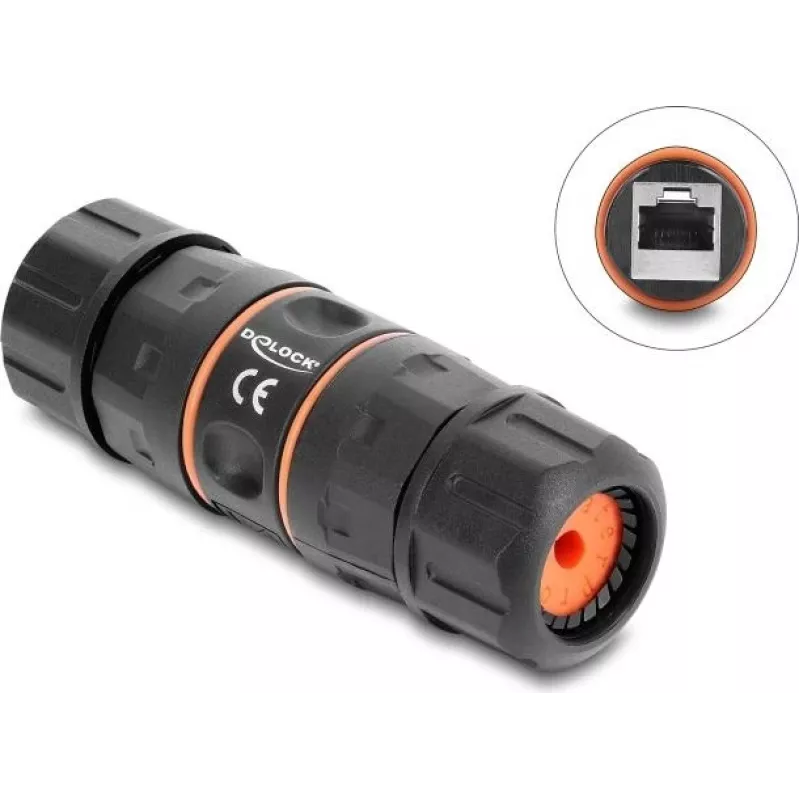

Delock Acoplador RJ45 conector hembra a conector hembra Cat.6A con rosca M23,5 x 1,5 mm, formato corto, IP68 resistente al polvo y al agua

This Delock RJ45 female to RJ45 female cable connector is designed for reliable and robust network connections in demanding environments. With Cat.6A performance, it supports 10 Gigabit Ethernet and a bandwidth of up to 500 MHz. The connector features a short construction and an M23.5 x 1.5 mm thread for secure panel mounting. Its IP68 rating ensures dust and waterproof protection, making it ideal for industrial, outdoor, and harsh environments. The nickel-plated brass housing and gold-plated contacts provide excellent corrosion resistance and reliable signal transmission.

Advantages

• IP68 dust and waterproof for outdoor and industrial use
• Cat.6A supports 10 Gigabit Ethernet and 500 MHz bandwidth
• Short design saves space in tight installations
• M23.5 x 1.5 mm thread for secure panel mounting
• Robust nickel-plated brass housing with gold-plated contacts

Suitable for

• Industrial network connections
• Outdoor Ethernet installations
• Harsh environment applications
• Panel-mounted couplers

Key specifications

• Connector type: RJ45 female to RJ45 female
• Network standard: Cat.6A (Category 6A)
• Shielding: FTP (Foiled Twisted Pair) / Shielded
• IP rating: IP68
• Mounting type: Panel mount
• Thread size: M23.5 x 1.5 mm
• Design: Short construction
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Housing material: Nickel-plated brass
• Contact plating: Gold-plated
• Operating temperature: -20 °C to 85 °C
• Installation hole diameter: Approx. 23.5 mm
• Colour: Metallic

Recommendations

For optimal performance, use with Cat.6A or higher rated cables. Ensure proper sealing of the connector in outdoor installations to maintain IP68 protection.
