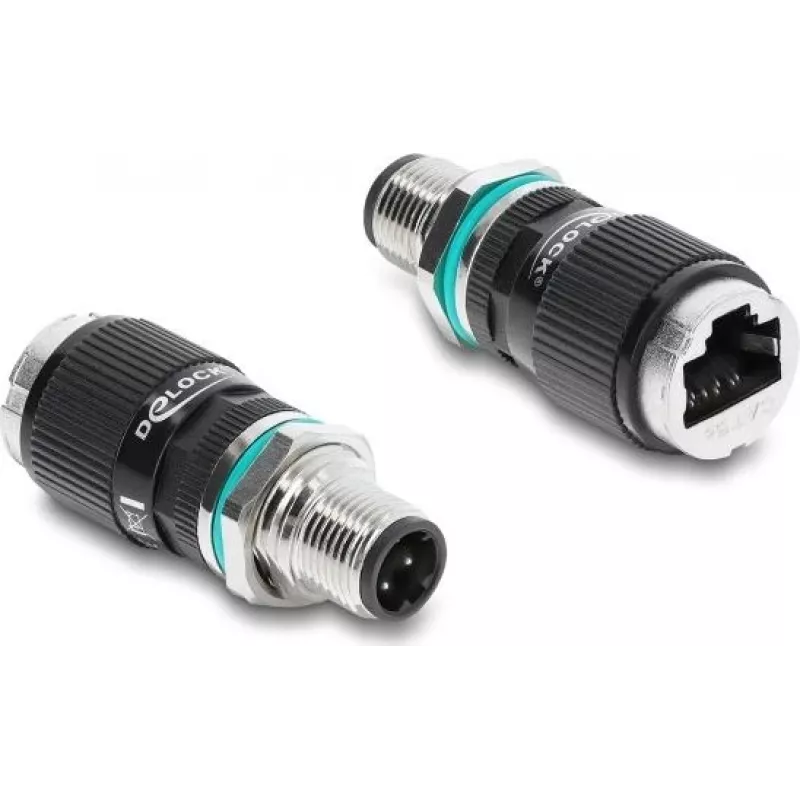

Delock adaptador M12 codificación D 4 pines conector macho a conector hembra RJ45 montaje en panel recto

The Delock M12 Adapter D-coded 4 Pin Male to RJ45 Female Panel Mount Straight (90662) is a robust industrial adapter designed for reliable Ethernet connections in harsh environments. It converts an M12 D-coded male connector to a standard RJ45 female port, enabling easy integration of field devices into existing network infrastructure.

Advantages

This adapter offers a compact and durable solution for industrial Ethernet applications. Its IP67 protection class ensures resistance to dust and water when mated, making it suitable for use in factories, automation systems, and outdoor installations. The nickel-plated brass housing provides excellent corrosion resistance and mechanical stability.

Suitable for

• Industrial Ethernet networks (10/100 Mbps)
• Automation and control systems
• Machine-to-machine communication
• Panel-mounted installations requiring a rugged connection

Key specifications

• Connector 1: M12 male, D-coded, 4-pin
• Connector 2: RJ45 female
• Mounting: Panel mount with M16 x 1.5 thread
• Design: Straight
• Data transfer rate: 10/100 Mbps (Fast Ethernet)
• Protection class: IP67 (when mated)
• Housing material: Nickel-plated brass
• Contact material: Gold-plated copper alloy
• Operating temperature: -25 °C to 85 °C
• Max. voltage: 250 V
• Max. current: 4 A
• Insulator material: PA66
• Mounting hole diameter: 16.1 mm

Recommendations

For optimal performance, use with D-coded M12 cables and ensure proper mating to achieve IP67 protection. This adapter is ideal for upgrading existing RJ45-based systems to M12 connectivity in industrial settings.
