Delock Adaptador M12 codificación X 8 pines conector hembra a conector hembra RJ45 Cat.6A STP apantallado recto

This Delock adapter delivers 10 Gigabit Ethernet through a rugged M12 X-coded 8-pin female port to a standard RJ45 female jack, all in a shielded Cat.6A design.

Overview

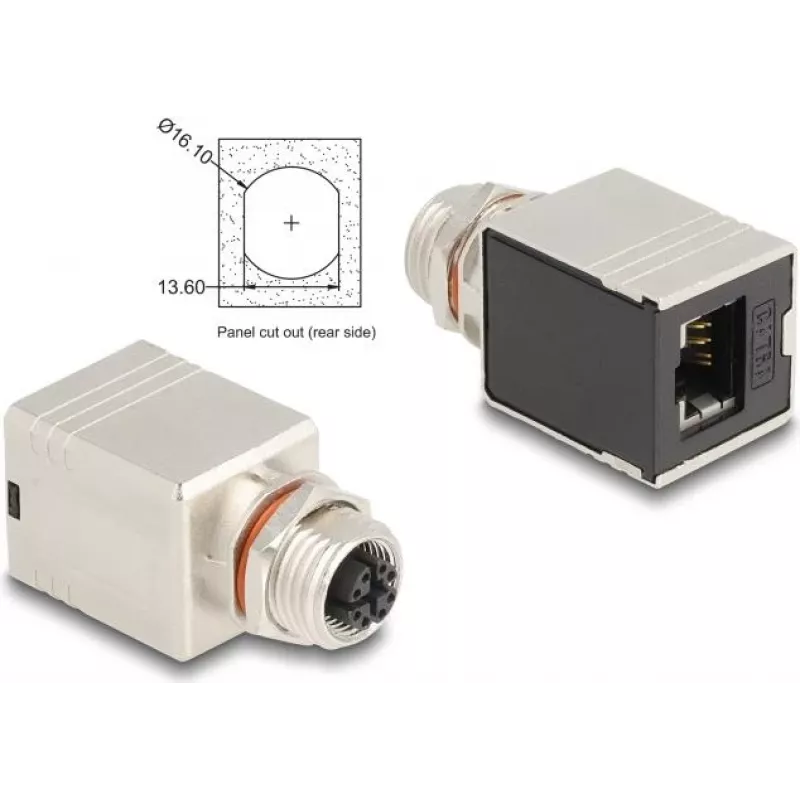

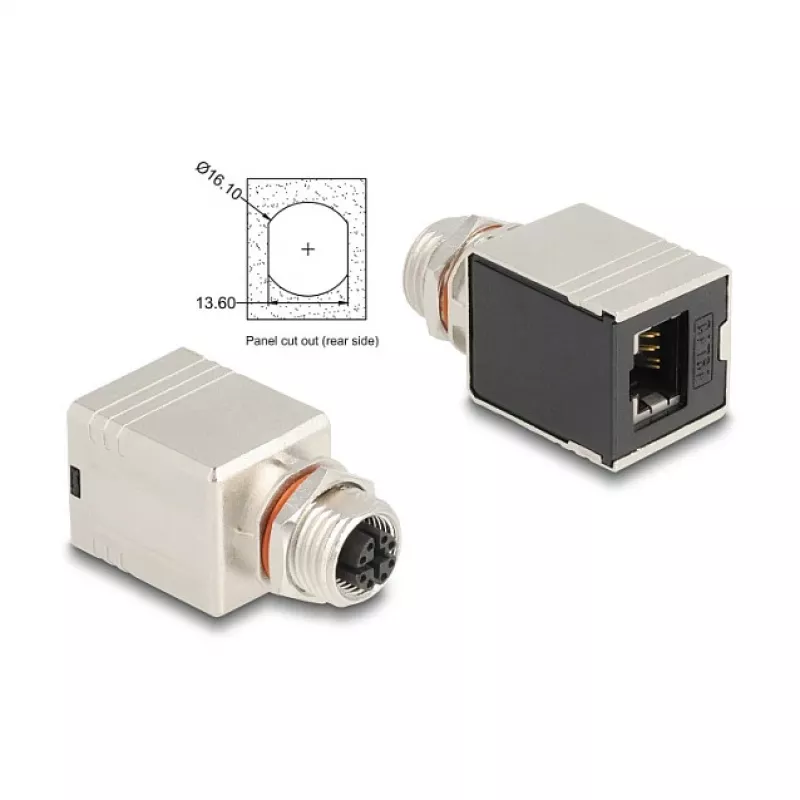

The Delock 60087 is a panel-mount adapter that converts an M12 X-coded 8-pin female connector to an RJ45 female connector. It supports Cat.6A performance with STP shielding, enabling data transfer rates up to 10 Gbps. The M12 screw locking mechanism ensures a secure connection in industrial environments.

What stands out

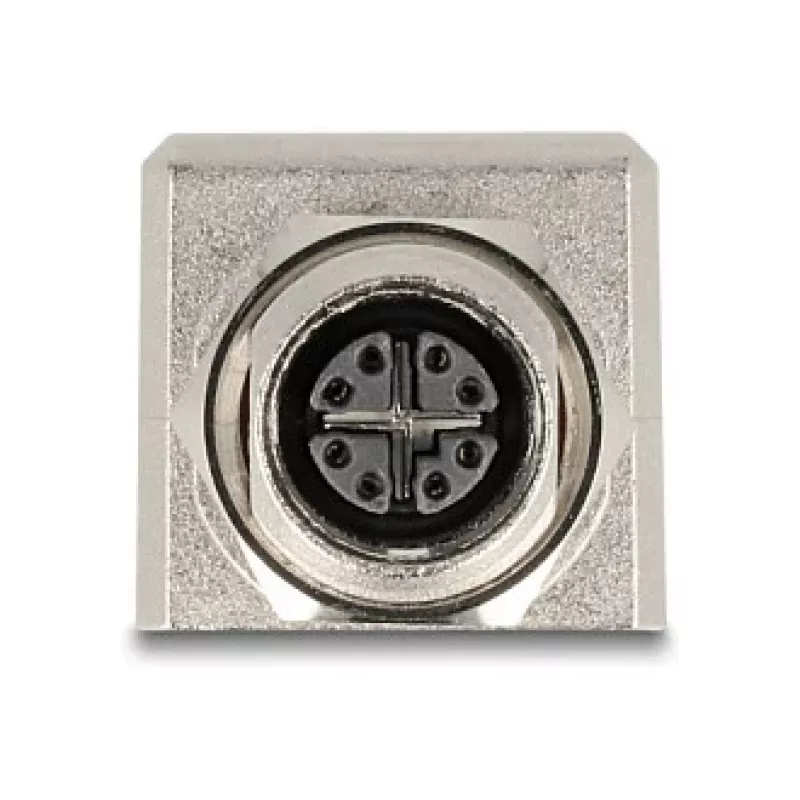

• M12 X-coded 8-pin female to RJ45 female
• Cat.6A STP shielded for high-speed data
• Supports up to 10 Gigabit Ethernet
• Panel mount with M16 x 1.5 thread
• Nickel-plated brass housing with gold-plated contacts

Technical details

• Connector 1: M12, X-coded, 8-pin, female
• Connector 2: RJ45, female
• Category: Cat.6A
• Shielding: STP (Shielded Twisted Pair)
• Data transfer rate: up to 10 Gbps
• Pin assignment: TIA/EIA 568B
• Mounting type: panel mount, M16 x 1.5 thread
• Housing material: nickel-plated brass
• Contact material: gold-plated
• Operating temperature: -20 °C to 85 °C
• Orientation: straight

Our verdict

A robust industrial adapter that bridges M12 and RJ45 with Cat.6A performance, ideal for harsh environments requiring reliable high-speed Ethernet.
