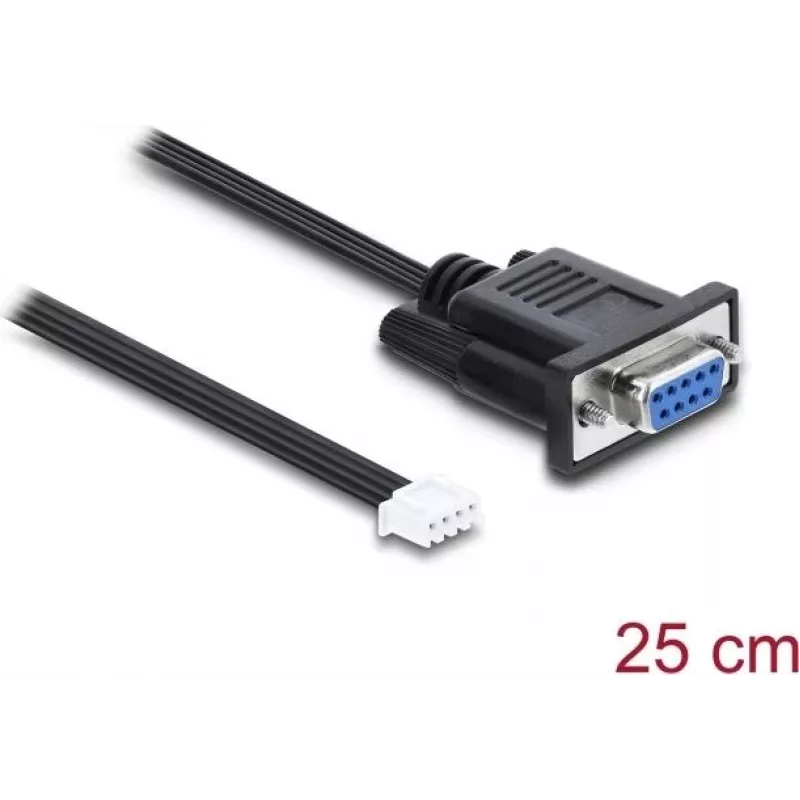

Delock Cable de conexión serie RS-232 D-Sub 9 hembra a conector hembra JST XH 4 pines 25 cm

This Delock serial adapter cable connects a standard RS-232 D-Sub 9 female port to a JST XH 4-pin header socket. It is designed for internal PC, motherboard, or embedded system connections where a compact and reliable serial interface is required. The cable length of 25 cm provides a short, tidy connection between components.

Advantages

High-quality construction with copper conductors and PVC jacket ensures durability and reliable signal transmission. The pre-wired pinout (RXD, TXD, GND, DTR) simplifies integration into custom projects or industrial equipment. RoHS compliant for environmental safety.

Suitable for

• Connecting RS-232 serial devices to JST XH 4-pin interfaces
• Embedded systems, industrial control, and automation
• Internal PC motherboard serial header connections

Key specifications

• Interface: RS-232
• Connector A: D-Sub 9 (DB9) female
• Connector B: JST XH 4-pin female header socket
• Cable length: 25 cm
• Pinout: D-Sub 9 Pin 2 (RXD) to JST Pin 1, Pin 3 (TXD) to JST Pin 2, Pin 5 (GND) to JST Pin 3, Pin 4 (DTR) to JST Pin 4
• Max data rate: Up to 115.2 kbps
• Jacket material: PVC
• Conductor material: Copper
• Colour: Black
• Compliance: RoHS

Recommendations

This cable is ideal for engineers and hobbyists needing a reliable RS-232 to JST XH connection for prototyping or permanent installations. Ensure your device's pinout matches the provided wiring before use.
