Delock Caja de Superficie Easy 45 IP55 Impermeable 6 Puertos (81625)

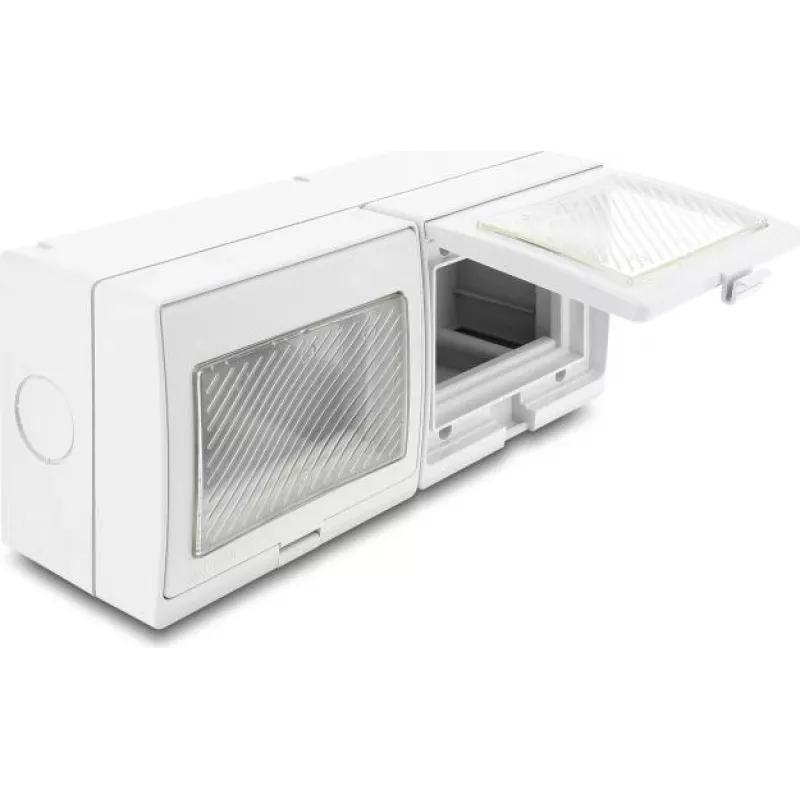

The Delock Easy 45 Surface Mount Box IP55 is a robust and versatile housing solution designed for professional network and electrical installations. With 6 module slots compatible with the Easy 45 system (45 x 45 mm), this surface mount box offers reliable protection for your connections in indoor and protected outdoor environments. Its IP55 rating ensures resistance against dust and water jets, making it ideal for demanding applications.

Advantages

This surface mount box provides a secure and organized way to house up to 6 modules. The IP55 protection class safeguards against dust ingress and low-pressure water jets, ensuring long-term reliability. The included M20 cable glands and knock-out openings offer flexible cable entry options, while the flame-retardant ABS material (UL 94 V-0) enhances safety. Easy wall mounting with included screws and wall plugs simplifies installation.

Suitable for

• Network and telecommunications installations requiring weatherproof housing
• Industrial environments where dust and moisture protection is needed
• Outdoor or semi-outdoor applications such as building entrances, parking lots, or production halls
• Structured cabling systems using Delock Easy 45 modules

Key specifications

• Housing type: Surface mount box
• Number of module slots: 6
• IP protection class: IP55
• Module compatibility: Delock Easy 45 (45 x 45 mm)
• Material: ABS plastic
• Color: Light grey (RAL 7035)
• Mounting method: Wall mount (surface)
• Cable entry points: 4 (2 x M20 cable glands, 2 x knock-out openings)
• Operating temperature: -10 °C to 60 °C
• Humidity: 10 - 90 % (non-condensing)
• Flame retardancy: UL 94 V-0
• Included components: 2 x M20 cable glands, 4 x mounting screws, 4 x wall plugs

Recommendations

For optimal performance, use Delock Easy 45 modules and ensure proper sealing of unused cable entries. This box is designed for surface mounting on walls or similar structures. Suitable for indoor and protected outdoor use.
