DeLOCK casete Fiber Optic HD conector macho MPO a 12× conector hembra SC simplex 12 fibras monomodo 9/125 µm

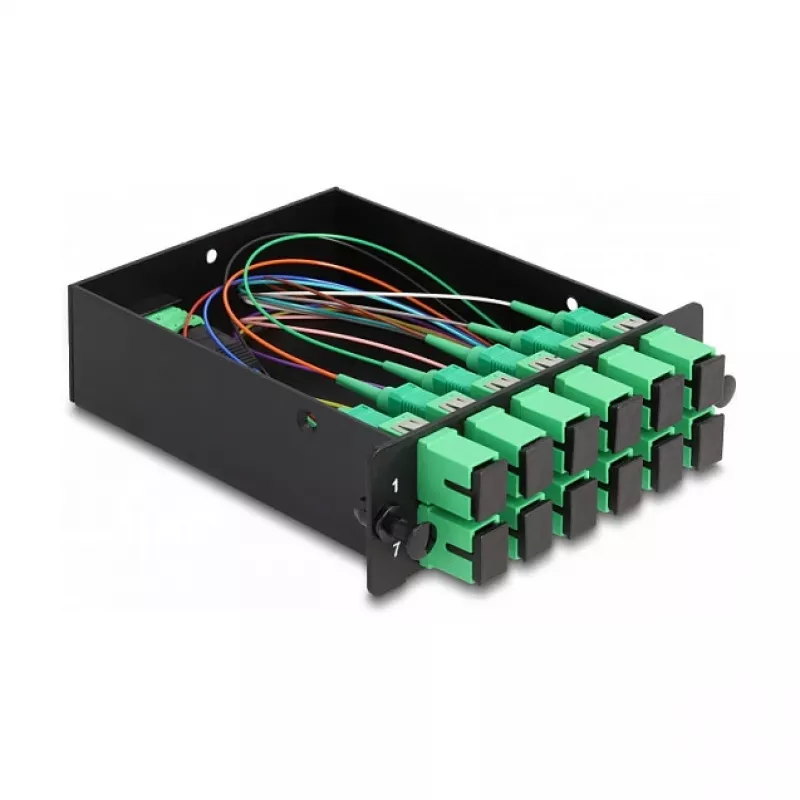

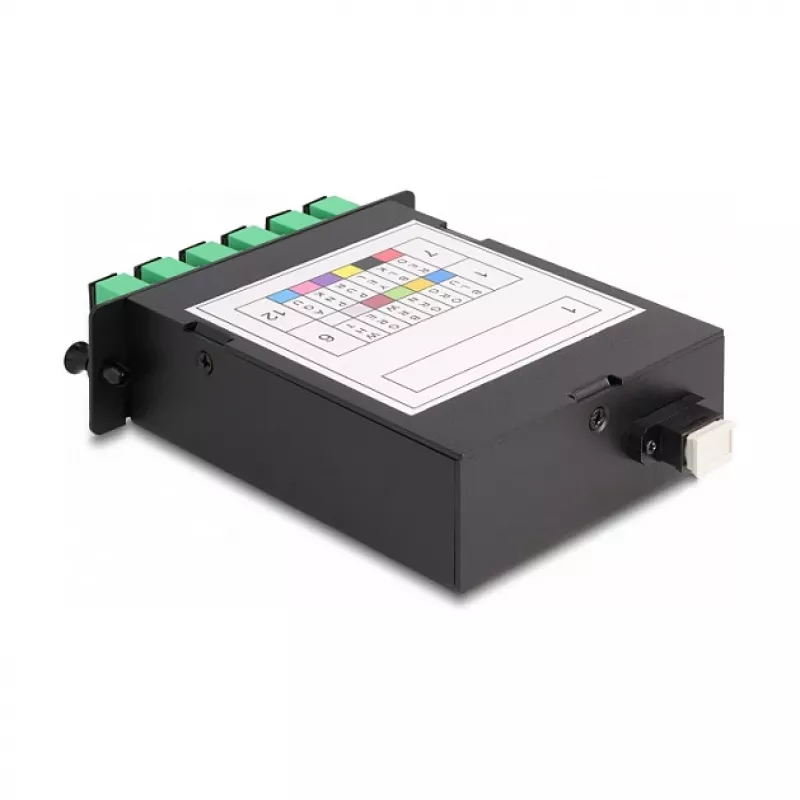

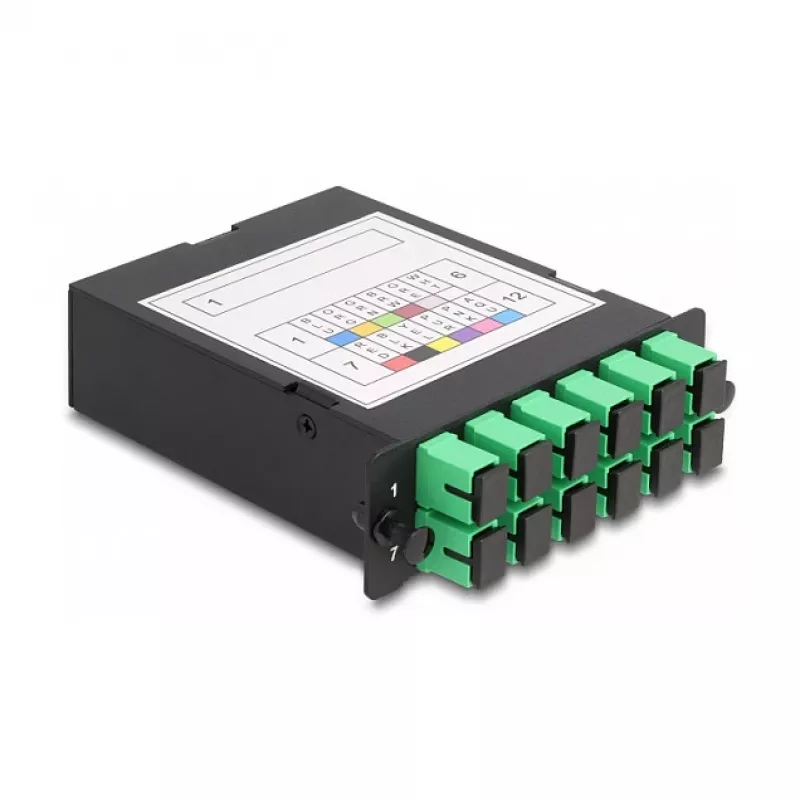

This cassette by DeLOCK provides an MPO male connector to 12 × SC Simplex female connections and supports 12 single-mode fibers with a 9/125 µm structure. It is designed for installation in a 19" fiber optic HD (High Density) patch panel by DeLOCK and contains a pre-assembled cabling system that routes optical signals to different network devices such as switches. The cassette is compact, measuring 102 mm (W) × 125 mm (D) × 29 mm (H), and intended for high-density fibre optic installations.

Advantages

The pre-assembled MPO male to 12 × SC Simplex female configuration reduces installation time and potential connector errors. Single-mode 9/125 µm fibres provide compatibility with common long-distance and high-bandwidth network equipment. The cassette format is compatible with DeLOCK 19" HD patch panels, enabling tidy, space-saving rack installations and straightforward module replacement or upgrades.

Suitable for

• High-density rack installations in data centres
• Optical backbone links between switches and distribution panels
• Single-mode network applications requiring MPO to SC terminations

Key specifications

• Connector types: MPO male to 12 × SC Simplex female
• Fibres: 12 single-mode, 9/125 µm
• Dimensions: 102 × 125 × 29 mm (W × D × H)
• Brand: DELOCK, MPN: 66936, EAN: 4043619669363

How to use

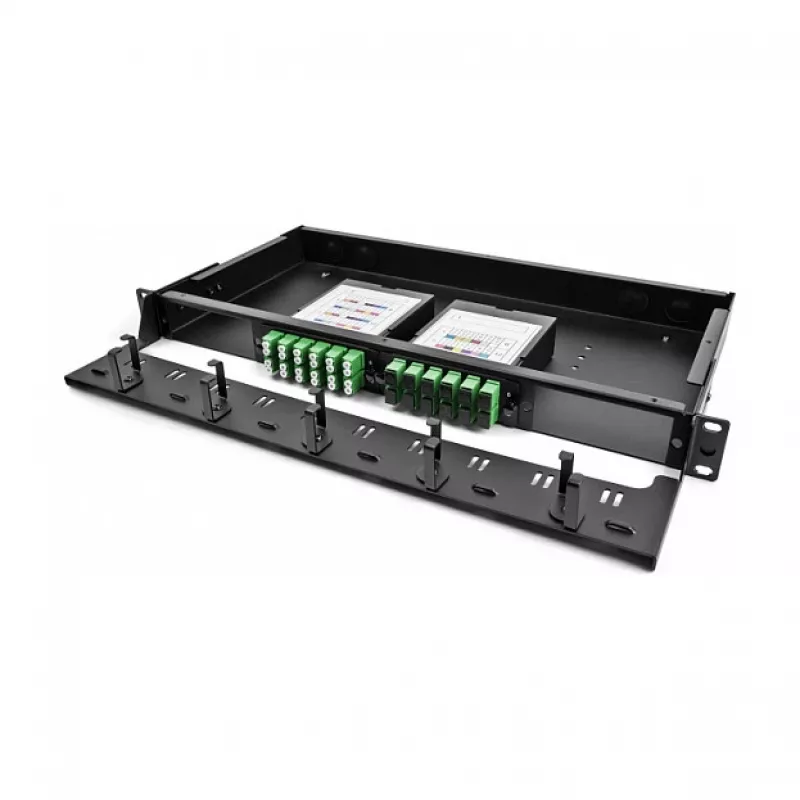

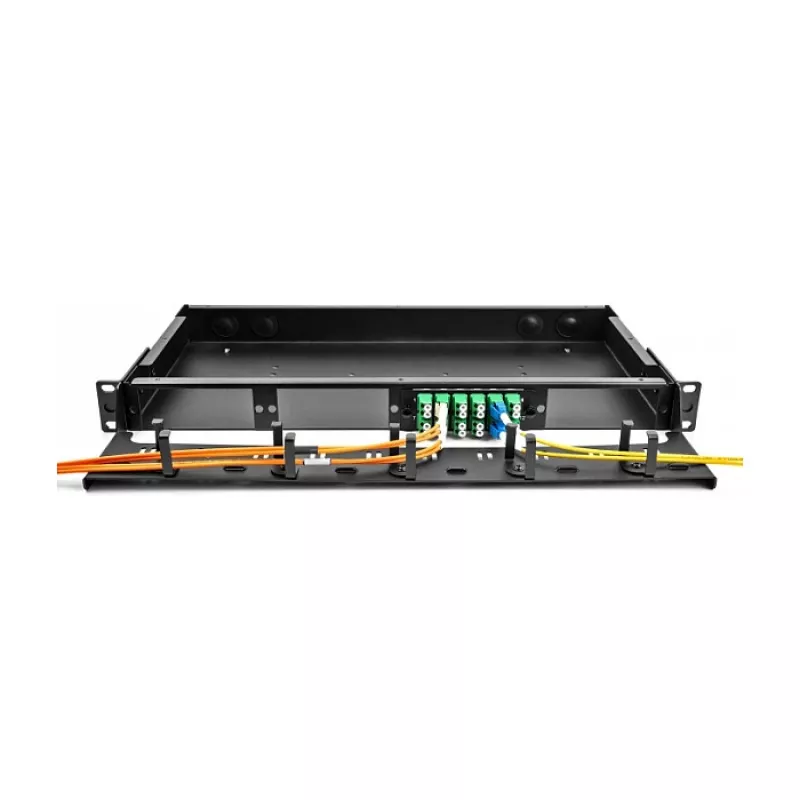

Install the cassette into a compatible DeLOCK 19" HD patch panel (e.g., model 66924) by sliding the cassette into the designated slot and securing it according to the panel's mounting procedure. Connect the incoming MPO male trunk cable to the MPO port on the cassette, and attach SC Simplex patch cords from the SC ports to network devices such as switches. Verify fibre polarity and perform optical testing after installation to confirm signal integrity.

Recommendations

Use appropriate fibre handling practices: avoid tight bends, protect exposed connectors with dust caps until connection, and use a fibre tester to check insertion loss and continuity after installation. Follow the DeLOCK patch panel instructions for safe mounting and cable management.
