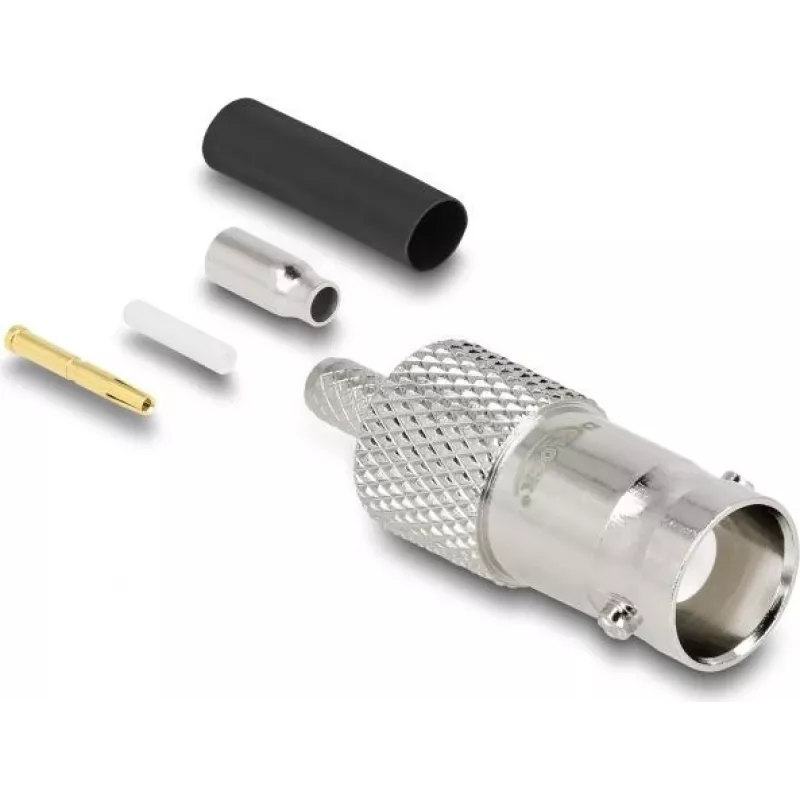

Delock conector hembra BNC crimp para RG-174 / RG-316 con tubo termorretráctil 91760

Unlike generic BNC connectors that require soldering or specialized tooling, this Delock 91760 crimp-style BNC female connector is engineered for fast, reliable field installation on RG-174 and RG-316 coaxial cables. The included heat shrink tubing provides strain relief and a clean, professional finish, making it ideal for RF, video, and test & measurement applications where signal integrity is critical.

Highlights

• 50 Ohm impedance for optimal signal transmission
• Crimp termination – no soldering required
• Gold-plated center contact for superior conductivity and corrosion resistance
• Nickel-plated brass body for durability and wear resistance
• PTFE insulator for high-temperature stability and low signal loss
• Compatible with RG-174 and RG-316 cables (outer diameter approx. 2.5 mm)
• Includes heat shrink tubing for strain relief and protection

In daily use

Whether you are repairing a CCTV camera, assembling a custom RF cable, or setting up test equipment, this connector simplifies the process. Strip the cable, slide on the heat shrink, crimp the ferrule, and you have a secure, professional-grade BNC female termination. The gold-plated pin ensures low contact resistance, while the nickel-plated body withstands repeated mating cycles. The PTFE insulator maintains consistent impedance, reducing signal reflections in high-frequency applications.

Full specifications

• Connector type: BNC female (jack)
• Connection method: Crimp
• Impedance: 50 Ohm
• Compatible cable types: RG-174, RG-316
• Compatible cable outer diameter: approx. 2.5 mm
• Contact material: Brass, gold-plated
• Housing material: Brass, nickel-plated
• Insulator material: PTFE
• Mounting type: Cable mount
• Included accessories: 1 x heat shrink tubing
• Product type: Coaxial connector

Final note

For reliable, repeatable BNC terminations on thin coaxial cables, the Delock 91760 delivers performance and ease of use in one compact package.
