DeLOCK conector modular RJ50 Cat.5e pack de 25 conector negro plata

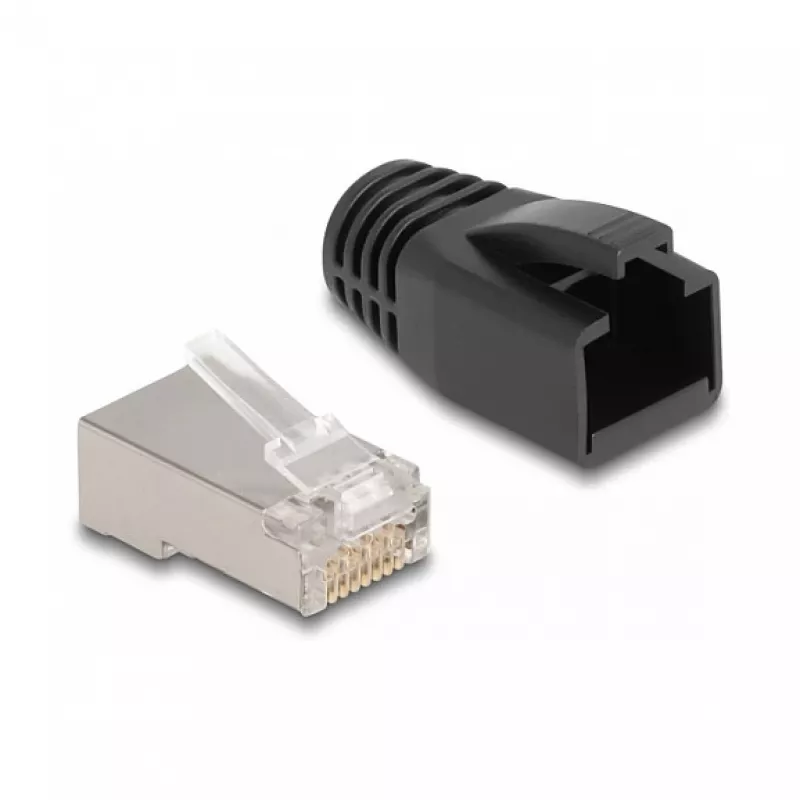

The DeLOCK RJ50 Modular Plug Cat.5e set contains 25 shielded male RJ50 plugs with bend protection boots, designed for assembly of cables 24 - 26 AWG. The plugs measure 15 mm in width, 22.8 mm in depth and 11.7 mm in height and are supplied in a black and silver finish for reliable network connections.

Advantages

The set provides shielded RJ50 connectors that help maintain signal integrity and reduce interference. Each plug is supplied with a bend protection boot that protects the cable end from abrasion and reduces tensile strain on the conductor. The compact dimensions and Cat.5e specification make the plugs suitable for standard telecommunication and data cabling tasks.

Suitable for

• Assembly and termination of 24 - 26 AWG network and telecommunication cables
• Small-scale production or repair of RJ50-terminated cables
• Environments requiring shielded RJ50 connectors for reduced interference

Key specifications

• Connector: RJ50 (male)
• Standard: Cat.5e

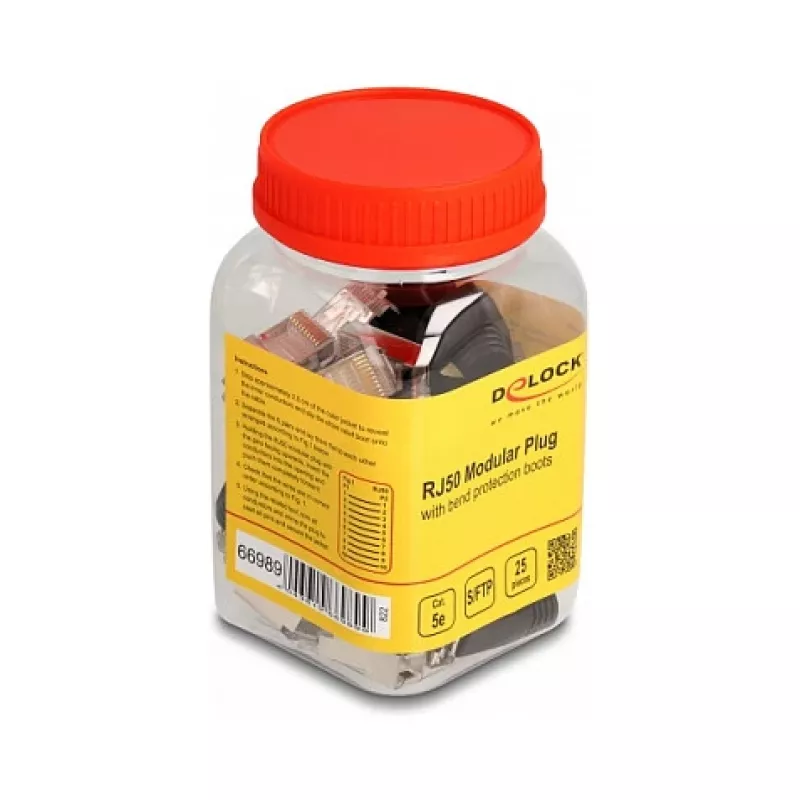

• Quantity: 25 pieces
• Cable compatibility: 24 - 26 AWG
• Dimensions (W × D × H): 15 mm × 22.8 mm × 11.7 mm
• Colour: Black, Silver
• Brand: DELOCK, MPN: 66989, EAN: 4043619669899

How to use

Prepare the cable by stripping the outer jacket to the required length and arrange the conductor pairs according to the intended wiring standard. Insert the conductors fully into the RJ50 plug so that each wire seats correctly under the contact pins. Use an appropriate crimping tool for RJ50 plugs to crimp the connector onto the cable, then slide the bend protection boot into place to cover the cable end and relieve strain.

Recommendations

For reliable results, use a crimping tool compatible with RJ50 modular plugs and verify conductor order before crimping. Avoid excessive bending near the boot and do not subject the terminated cable to strong tensile loads.
