DeLOCK D-Sub 9 hembra a RJ12 hembra kit de montaje negro

The DeLOCK D-Sub 9 pin female to RJ12 female Assembly Kit in black is an adapter kit that allows a serial D-Sub 9 interface to be extended via an ISDN, telephone or RJ12 cable. The kit provides flexible assignment of the D-Sub 9 contacts and a robust housing for reliable connections in installations that require conversion between D-Sub 9 and RJ12 interfaces.

Advantages

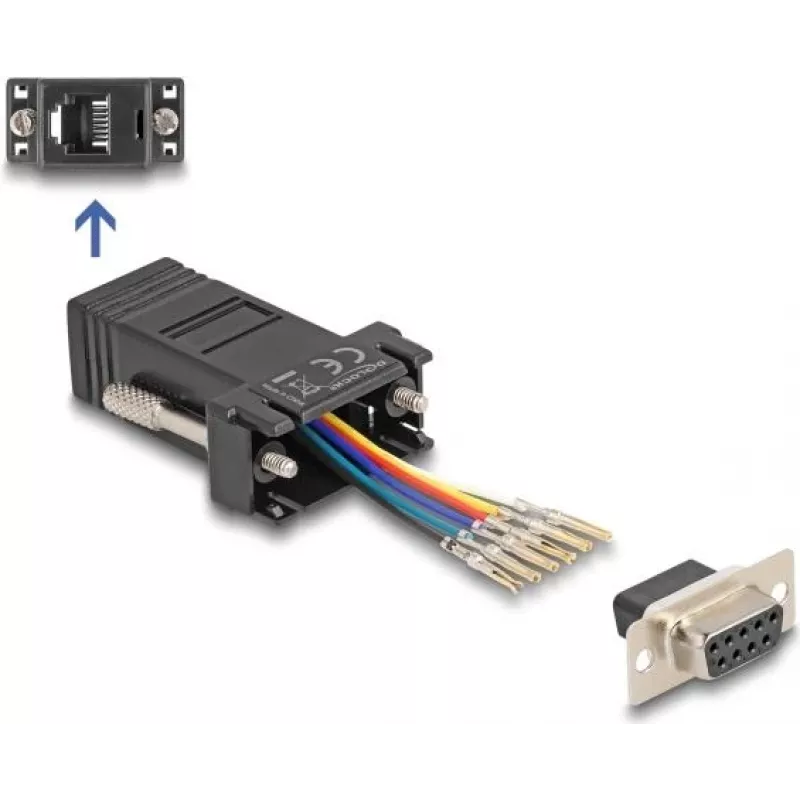

This assembly kit permits individual and flexible assignment of each D-Sub 9 contact and simple insertion of contacts into the D-Sub 9 housing. The RJ12 socket snaps into place with an audible click to ensure secure contact. The black finish and durable construction make the adapter suitable for repeated installation and maintenance tasks.

Suitable for

• Extending RS-232 or other serial connections via RJ12/telephone/ISDN wiring
• Custom wiring and small-scale cabling projects where pin assignment must be changed
• Field repairs and on-site adapter assembly
• Equipment requiring a D-Sub 9 to RJ12 interface conversion

Key specifications

• Connector 1: D-Sub 9 (female)
• Connector 2: RJ12 (female)
• Product colour: Black
• Brand: DELOCK
• MPN: 67077
• EAN: 4043619670772

How to use

Open the D-Sub 9 housing and insert the contact pins according to the required pinout. Close the housing to secure the contacts. Connect the RJ12 cable to the RJ12 female socket until it clicks to ensure a reliable connection. Verify the pin assignment and continuity with appropriate test equipment before powering the connected devices.

Recommendations

For safe and reliable operation, use the kit with compatible serial devices and RJ12 cabling rated for your application. Avoid exposing the assembled adapter to moisture, excessive mechanical stress, or voltages beyond the device specifications. Check pin assignment documentation to prevent miswiring.
