DeLOCK D-Sub 9 polos conector hembra a regleta de bornes para carril DIN 51 mm 58 mm 30 mm

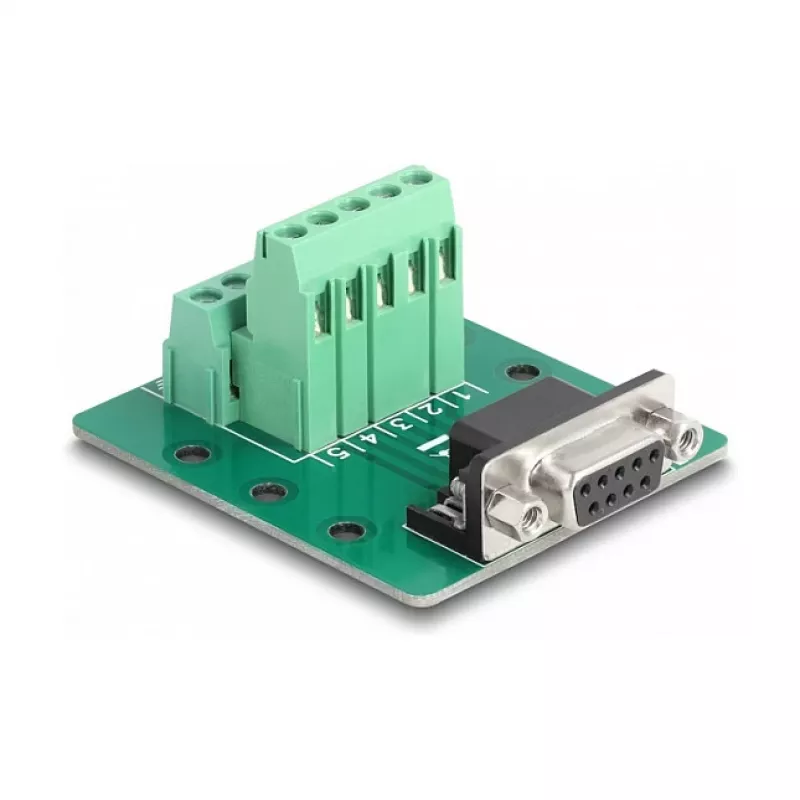

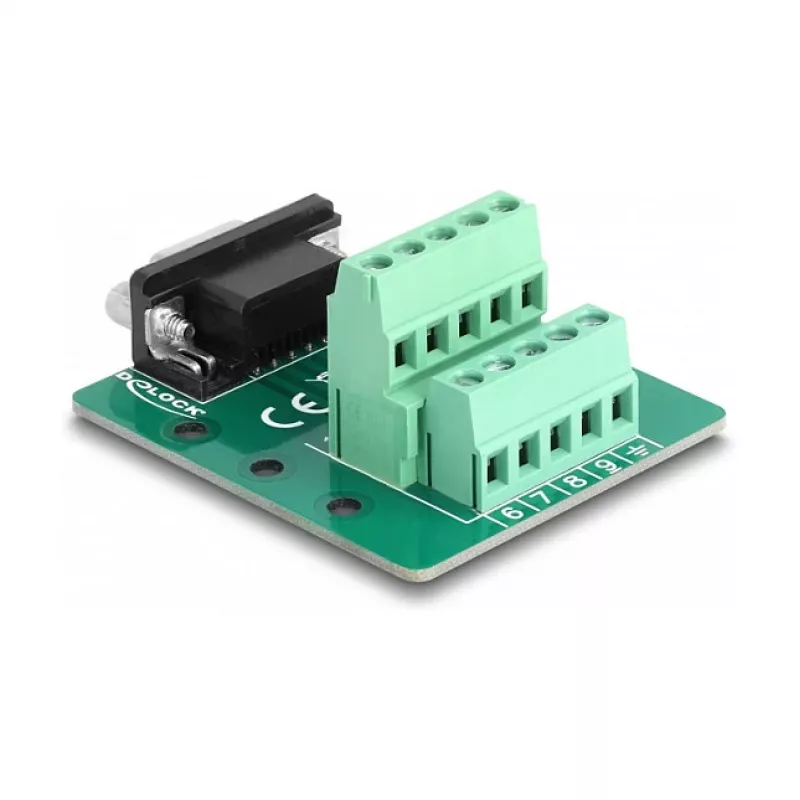

This Delock terminal block adapter converts a D-Sub 9 pin female connector to a terminal block and is designed for DIN rail mounting. It accepts wires with stripped ends and provides a compact interface for connecting devices in electrical systems. The adapter measures approximately 51 mm width, 58 mm depth and 30 mm height and is finished in green.

Advantages

The adapter provides a simple means to terminate D-Sub 9 female connections on a terminal block compatible with 15 mm or 35 mm DIN rails. Its compact dimensions reduce required panel space while the included clips allow secure mounting. The device supports direct wiring with stripped conductor ends for straightforward installation and maintenance.

Suitable for

• Converting D-Sub 9 female connectors to screw terminal connections
• Mounting on 15 mm or 35 mm DIN rails in control cabinets
• Wiring and interconnection tasks in industrial or automation equipment
• Applications requiring a compact 51 × 58 × 30 mm adapter

Key specifications

• Brand: DELOCK
• Model / MPN: 66908
• EAN: 4043619669080
• Connector: D-Sub 9 pin female to terminal block

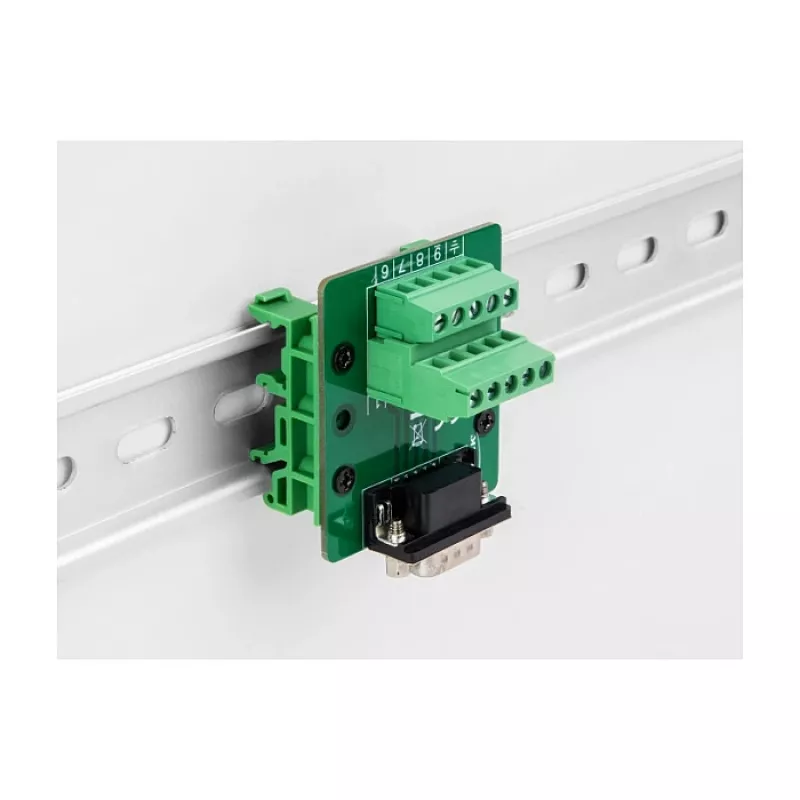

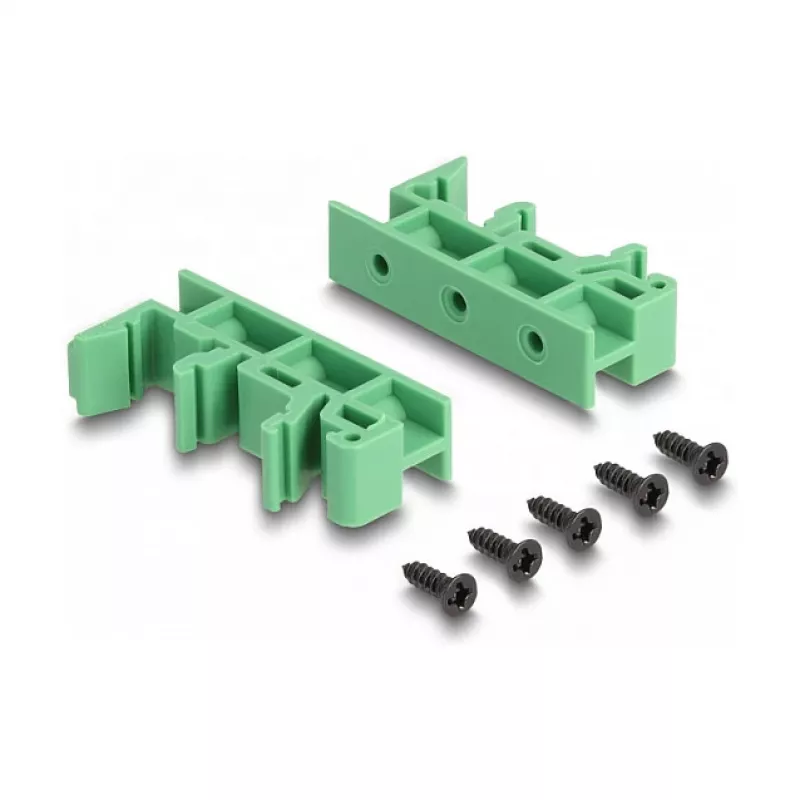

• Mounting: DIN rail (15 mm or 35 mm) with included clips
• Dimensions (approx.): 51 mm (W) × 58 mm (D) × 30 mm (H)
• Colour: Green

How to use

Strip the conductor ends to the appropriate length, insert them into the terminal block contacts and secure each wire according to the terminal screw or clamp mechanism. Attach the adapter to a 15 mm or 35 mm DIN rail using the supplied mounting clips, ensuring the clips snap firmly into place. Connect the D-Sub 9 male counterpart to the adapter as required and verify electrical continuity before full system operation.

Recommendations

Use appropriately sized stripped conductors and tighten terminal screws to the manufacturer-recommended torque where available. Ensure power is turned off during installation and verify correct pin assignments when converting between D-Sub and terminal block connections.
