DeLOCK FAKRA Conector hembra F 25 mm (largo) para crimpar - marrón nogal, RAL 8011 89690

Engineered for high-frequency automotive RF connectivity up to 6 GHz, this FAKRA F jack delivers a 50 Ohm impedance with gold-plated brass contacts and PTFE insulation for reliable signal integrity in GPS, GSM, UMTS, and LTE applications.

Overview

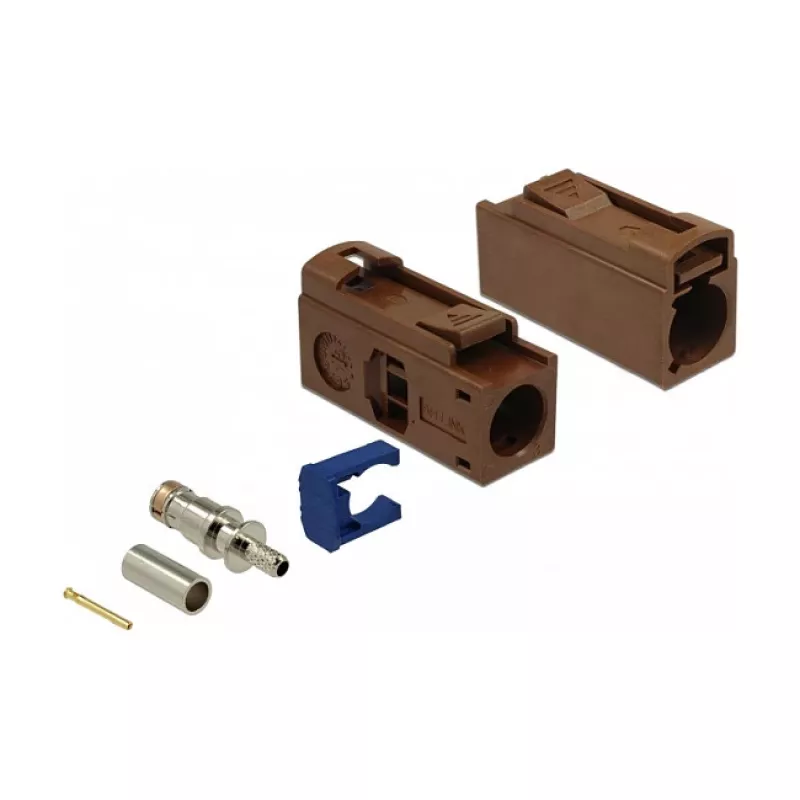

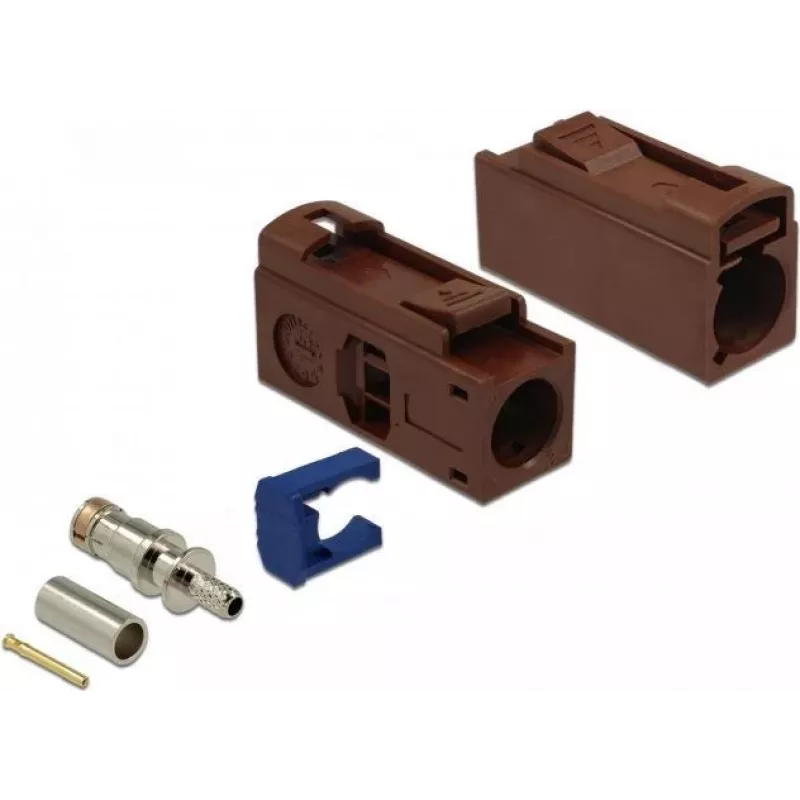

The DeLOCK 89690 is a FAKRA F jack with a 25 mm long body, designed for crimp termination on compatible cables such as RG-174, RG-316, RG-188, and LMR-100. Its nut brown housing (RAL 8011) ensures proper coding and visual identification in vehicle telematics and infotainment systems.

What stands out

• FAKRA F coding with brown color code for secure, error-proof mating
• Gold-plated contacts and PTFE insulator for low insertion loss and high durability (100 mating cycles)
• Wide operating temperature range from -40°C to +105°C, suitable for harsh automotive environments
• Crimp termination for robust cable retention and ease of assembly

Technical details

• Connector type: FAKRA jack (female)
• Impedance: 50 Ohm
• Frequency range: DC to 6 GHz
• Contact material: Brass, gold-plated
• Insulator: PTFE
• Housing: Brass/plastic, nut brown (RAL 8011)
• Length: 25 mm
• Voltage rating: 335 V RMS
• Operating temperature: -40°C to +105°C
• Durability: 100 mating cycles

Our verdict

A dependable FAKRA F jack for automotive RF connections, offering precise coding, excellent electrical performance, and rugged construction for telematics and infotainment systems.
