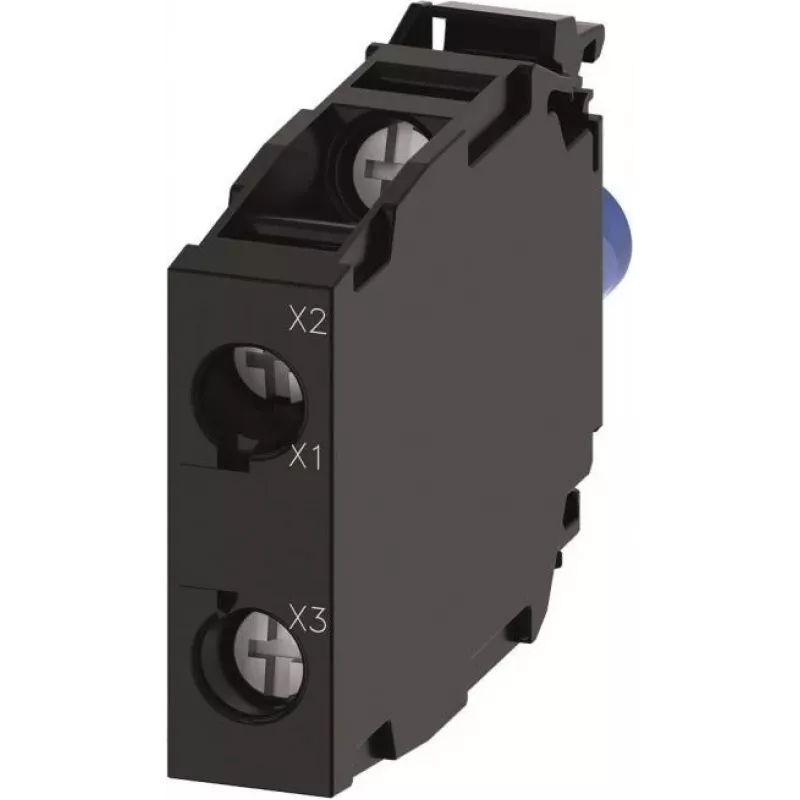

Siemens SIRIUS ACT Módulo LED AC 230V rojo-verde-amarillo 3SU1401-1BF24-1AA0

The Siemens SIRIUS ACT LED Module 3SU1401-1BF24-1AA0 is a high-quality industrial signaling component designed for reliable visual indication in automation systems. Operating at AC 230V, this module features integrated LEDs in red, green, and yellow, providing clear status signals for machinery and process control. Its compact snap-on design allows for easy mounting on SIRIUS ACT holders, making it ideal for control panels and switchgear.

Advantages

This LED module offers long electrical service life of 100,000 hours, reducing maintenance costs. With IP20 protection, it is suitable for indoor use in clean environments. The three-color capability (red, green, yellow) enables versatile status indication, while the low power consumption of approximately 3.22 W ensures energy efficiency. CE, UL, and CSA approvals guarantee compliance with international standards.

Suitable for

• Industrial automation control panels
• Machine status indication
• Process control systems
• Switchgear and distribution boards
• Building automation applications

Key specifications

• Product Type: LED Module
• Series: SIRIUS ACT
• Operating Voltage: AC 230 V
• Current Type: AC/DC
• Light Colors: Red, Green, Yellow
• Number of Colors: 3
• Light Source: Integrated LED
• Operating Current: 14 mA (at AC 230 V)
• Power Consumption: Approx. 3.22 W
• Mounting Type: Snap-on (for holder)
• Compatibility: For SIRIUS ACT Indicator Lights / Pushbuttons
• Electrical Service Life: 100,000 h
• Operating Temperature: -25 to +70 °C
• Storage Temperature: -40 to +80 °C
• Degree of Protection (Module): IP20
• Rated Insulation Voltage: 320 V
• Pollution Degree: 3
• Approvals: CE, UL, CSA

Recommendations

For optimal performance, pair this LED module with a compatible SIRIUS ACT holder and pushbutton. Ensure proper installation in a clean, dry environment to maximize service life. Always verify voltage compatibility before installation.
