Delock Marco adaptador para 2 x SSD M.2 NVMe con conector SFF-8654 para bahía Slim-ODD de 12,7 mm (47138)

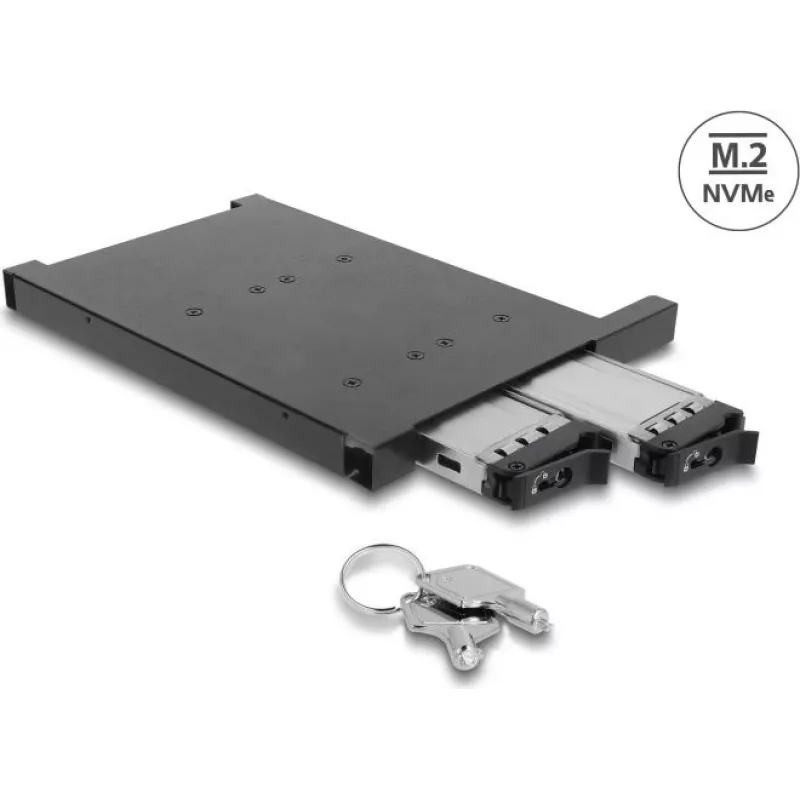

The Delock Adapter Frame 47138 allows you to install two M.2 NVMe SSDs into a 12.7 mm slim optical disc drive (ODD) bay. It connects via an SFF-8654 (Mini SAS HD) host interface, providing high-speed PCIe x4 lanes per SSD. The frame is made of metal and plastic, and includes LED indicators for power and access. Installation is screw-based, and the adapter is OS independent and bootable (depending on host system).

Advantages

Upgrade your laptop or slim PC with two NVMe SSDs without external enclosures. Utilizes the internal ODD bay for additional storage. Supports various M.2 form factors (2230, 2242, 2260, 2280).

Suitable for

• Laptops with a 12.7 mm slim ODD bay
• Desktop PCs with a slim ODD bay
• Users needing additional high-speed NVMe storage

Key specifications

• Host interface: SFF-8654 (Mini SAS HD)
• Number of M.2 slots: 2
• M.2 connector: M-Key
• Supported M.2 form factors: 2280, 2260, 2242, 2230
• Data transfer: PCIe (NVMe) x4 per slot
• Bay compatibility: 12.7 mm slim ODD bay
• Material: Metal / Plastic
• LED indicators: Power, Access
• Hot swap: No
• Bootable: Yes (host system dependent)

Recommendations

Ensure your system has an SFF-8654 connector or use an appropriate adapter. Check physical clearance for M.2 SSDs with heatsinks.
